High Capacity 10m3 10000L Diesel Vacuum Tanker Truck
Hubei Dong Runze Special Vehicle Equipment Co., Ltd.- After-sales Service：24
- Warranty：24
- Certification：ISO9000, CCC
- Emission Standard：Euro 3
- Payload：10t
- Transmission Type：Manual
Base Info
- Model NO.：5110
- Fuel：Diesel
- Tank Volume：10000L
- Drive Wheel：4x2
- Hoesrpower：160
- Condition：New
- Drive Type：LHD,Rhd
- Dimension(L*W*H)(mm)：7300 * 2490 * 3350
- Tyre & Spare Tyre Spec：10.00r20 & 6+1
- Loading Capacity (Kg)：10000
- G. V. W. ( Kg )：16000
- Wheelbase (mm)：4500
- Tank Material：Q235 Carbon Steel
- Transport Package：Nil
- Trademark：Dongfeng
- Origin：China
- HS Code：8705909990
- Production Capacity：80000
Description
Overview
Products Technical Specification
Type
4 * 2 Sewage Suction Truck
Brand
Dongfeng
Cab
One and half row
Vehicle Description
Overall dimensions (mm)
7300 * 2490 * 3350
G.V.W (kg)
16000
Curb weight(vehicle) (kg)
8405
Loading capacity (kg)
8000-10000
Max speed (Km/h)
90
Engine Description
Engine model
YC4E160-33
Maximum power
118kw / 160hp
Displacement (L)
4.26
Chassis Description
Chassis Model
EQ1168GLJ3
Wheel base (mm)
4500
F / R track base (mm)
1900 / 1800
F / R overhang (mm)
1250 / 2100
Approach/Departure angle (°)
30 / 26
Spring plate
9 / 11+8
Front axle / rear axle load capacity (kg)
6000 / 10000
Type of fuel
Diesel
Gear box
6-speed with over drive
Brake system
Air braking
Operation control system
Power steering wheel
Electric system
24V
Tires&Tire quantity
10.00R20 & 6+1
Sewage Suction Tank Description
Tank volume (m3)
10 m3
Tank material
Q235 Carbon Steel
Thickness (mm)
Tank body:5mm End plate:6mm
The max.inclined angle
≥ 45°
Tank lifting time
≤ 45s
Rear cover open angle
≥ 75°
Rear cover open time
≤ 25s
Vacuum pump model
68 / 400
Vacuum pump manufacture
Yifeng Suizhou
Absolute vacuum pressure
≤ 0.007Mpa
Effective absorption distance
≥ 5M
The suction pipe diameter
100 mm
Power takeoff form
Sandwich power takeoff,full-power output
Standard configuration Selective configuration Vehicle model Chassis brand Chassis model Load Overall dimensions Wheel base hp/standard Tire EXW Price USD CIF Price USD L mm mm DRZ5240GXWH CAMC HN1240P29E2M3J 20000 10250X2000X3460 5220+1350 270/ Euro 5 11.00R20 $56,111 $66,111 DRZ5160GXWD DONGFENG DFL1160BX 10000 8470X2500X3700 4700 190/ Euro 5 9.00-20 $34,190 $41,190 DRZ5250GXWD DFL1250 20000 10240X2500X3460 5350+1300 260/ Euro 5 11.00R20 $54,048 $64,048 DRZ5060GXWE EQ1060TJ20D3 4000 5850X1960X2550 3300 95/ Euro 5 7.00-16 $16,317 $21,317 DRZ5090GXWE DONGFENG EQ1090T9ADJ3AC 6000 6995X2285X2650 3800 120/ Euro 5 7.50R16 $21,095 $26,095 DRZ5110GXWE DONGFENG EQ1100FKJ 6000 7135X2490X2950 3950 140/ Euro 5 9.00-20 $21,413 $26,413 DRZ5108GXWE DONGFENG EQ1108KJ 10000 7350X2495X3050 3950 170/ Euro 5 9.00-20 $26,508 $31,508 DRZ5126GXWE DONGFENG EQ1126KJ1 10000 8470X2500X3700 4700 190/ Euro 5 9.00-20 $28,413 $36,413 DRZ5141GXWE DONGFENG EQ1141KJ 10000 8310X2495X3350 4500 190/ Euro 5 10.00-20 $28,095 $36,095 DRZ5253GXWE DONGFENG EQ5253GFJ2 16000 10250X2500X3460 4350+1300 210/ Euro 5 10.00-20 $39,714 $47,714 DRZ5250GXWC FAW CA1250P63K1L5T1AE4Z 20000 9585X2500X3220 4800+1350 280/ Euro 5 11.00R20 $59,619 $69,619 DRZ5163GXWB FOTON BJ1163VKPGG-1 10000 8250X2480X3350 5000 160/ Euro 5 9.00R20 $31,603 $39,603 DRZ5257GXWB FOTON BJ5257GNFJH-S1 20000 10000X2490X3350 4725+1300 270/ Euro 5 10.00-20 $51,667 $52,667 ISZU QL1070A1KAY 6000 6750X2170X2760 3815 120/ Euro 5 7.00-15 $29,841 $35,841 DRZ5160GXWQ ISU.ZU QL1160ANFRY 10000 8735X2480X2810 5000 240/ Euro 5 10.00-20 $60,730 $68,730 DRZ5250GXWQ ISU.ZU QL1250DNFZY 16000 9860X2480X2810 4350+1300 280/ Euro 5 11.00-20 $81,206 $89,206 ISU..ZU QL10503HARY 4000 6090X1980X2710 3360 98/ Euro 5 7.00-15 $24,190 $29,190 DRZ511009GXWQ ISU.ZU QL11009MARY 10000 8410X2495X3350 4475 190/ Euro 5 8.25-20 $37,651 $45,651 DRZ5161GXWH JAC HFC1161P3K2A47F 10000 8250X2300X2900 4700 160/ Euro 5 11.00R20 $37,651 $45,651 DRZ5254GXWN North-Benz ND1254B41J 16000 9050X2480X3030 4100+1350 270/ Euro 5 11.00R20 $54,778 $62,778 DRZ5255GXWFS SHACMAN SX1255NN464 20000 9950X2490X3350 4575+1400 290/ Euro 5 12.00R20 $58,825 $66,825 DRZ5165GXWS SHACMAN SX1165UN461 10000 8480X2500X3700 4600 270/ Euro 5 12.00R20 $41,476 $49,476 DRZ5255GXWS434 SHACMAN SX1255UM434 16000 9600X2490X3250 4325+1350 290/ Euro 5 12.00R20 $54,143 $62,143 DRZ5167GXWZ SINOTRUK ZZ1167M4611W 10000 8470X2500X3700 4600 266/Euro 5 12.00-20 $44,984 $50,984 DRZ5257GXWZ SINOTRUK ZZ1257N4341W 15000 8900X2500X3600 4325+1350 336/Euro 5 12R22.5 $56,286 $64,286

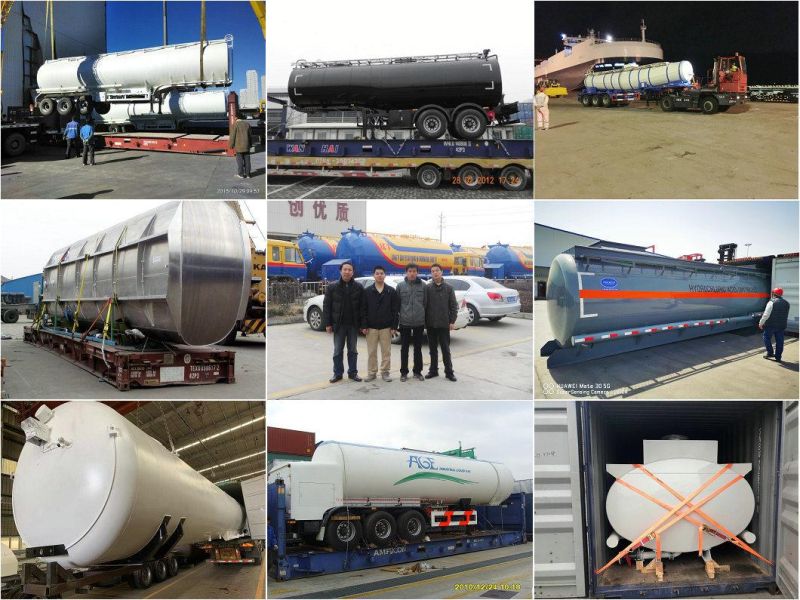

2. Packing and Shipping:
Truck is nude packing, shipping in container, in bulk , in ro-ro.
We will choose the best shipping type basis on truck volume, truck structure, Sail Schedule, clients' requirement for clients!
3. Company Information:
Hubei Dong Runze Special Vehicle Equipment Co., Ltd. is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
Our advantage:
(1) We have own factory located in Suizhou---the special truck town of China.We can control every details----the development, the quality and the cost. As a result we can supply the quality goods with most competitve price.
(2) We are familiar with the whole Chinese special truck market. And we are clear the different advantage and different quality level for each factory. So we can consolidate the resource for the customers and supply the most suitable goods for them.
(3) There is a stronge professional team in our company including engineers and business executives. So we can provide the best solution and service for all customers.
If you have any other questions or there is anything we can do for you, pls feel freely to let me know. We are glad to provide the best service.
4. Our Service:
Left-hand drive, if you need Right-hand drives, please inform us, we will make special order for you.
We highly recommend this sewage suction tank truck. It's in an excellent condition and also with good quality and competitive price. Further information, pls feel free to cantact with me or visit our website, we will offer our best service.
If you have any requirements about special trucks, kindly let me know, I will do my best fo provide the most suitable type and competetive price for you.
Certifications
2 .Can I have samples of this type of product to test the quality?
Yes, you can buy any sample to test the quality,our MOQ is 1 unit.
3. What's the delivery time and can you lower the price?
It depends on your order.The delivery time is within 30 workdays after we received your prepayment. If you have placed an order of large quantities, then,of course, the price can be lowered.
4.Can you supply some quick-wear parts? Yes, we can supply the parts as your request,such as traction,traction pin,balance beam and plate spring,hanging accessories,turntable,all kinds of brake pads,brake pan, bearings,etc.
6.Do you have any used products for sale? We have products in stock for choices,the prices are favorable,we'll show you our stock products if you need.
7.What's the payment terms?TT 30% as deposit, balance before shipment by TT or at sight.
8. How to guarantee customers get the goods smoothly after they payment?
Don't worry,dear.We have joined the trade assurance,you can place the order by trade assurance,if we don't delivery products, the deposit will be returned to you.
9.How can you ensure the quality of the products?
Looking forward to receiving your inquiry!
CONTACT US
Website: tictrucks.en.made-in-china.com
Road to Your Success
Products Technical Specification
Type
4 * 2 Sewage Suction Truck
Brand
Dongfeng
Cab
One and half row
Vehicle Description
Overall dimensions (mm)
7300 * 2490 * 3350
G.V.W (kg)
16000
Curb weight(vehicle) (kg)
8405
Loading capacity (kg)
8000-10000
Max speed (Km/h)
90
Engine Description
Engine model
YC4E160-33
Maximum power
118kw / 160hp
Displacement (L)
4.26
Chassis Description
Chassis Model
EQ1168GLJ3
Wheel base (mm)
4500
F / R track base (mm)
1900 / 1800
F / R overhang (mm)
1250 / 2100
Approach/Departure angle (°)
30 / 26
Spring plate
9 / 11+8
Front axle / rear axle load capacity (kg)
6000 / 10000
Type of fuel
Diesel
Gear box
6-speed with over drive
Brake system
Air braking
Operation control system
Power steering wheel
Electric system
24V
Tires&Tire quantity
10.00R20 & 6+1
Sewage Suction Tank Description
Tank volume (m3)
10 m3
Tank material
Q235 Carbon Steel
Thickness (mm)
Tank body:5mm End plate:6mm
The max.inclined angle
≥ 45°
Tank lifting time
≤ 45s
Rear cover open angle
≥ 75°
Rear cover open time
≤ 25s
Vacuum pump model
68 / 400
Vacuum pump manufacture
Yifeng Suizhou
Absolute vacuum pressure
≤ 0.007Mpa
Effective absorption distance
≥ 5M
The suction pipe diameter
100 mm
Power takeoff form
Sandwich power takeoff,full-power output
Vacuum sewage suction truck
Here the price is for standard configuration. Selective configuration and any change according to the buyer's requirements please confirm the price with our company.
Chassis,sub frame,vacuum sewage tank,oil water separator, water gas separator, hydraulic cylinder for unloading device, domestic vacuum pump, pressure gauge,suction
hose, gravity flow valve, connected device,observation tube, automatic anti overflow valve, hydraulic suite,rear door hydraulic opening.
Italy BP vacuum pump,Italy hydraulic motor,liuqid ring vaccum pump
with vice engine price add $5000~$10000,
combine with high pressure jeting price add $5000-$10000
DONGFENG
DONGFENG
DRZ5070GXWQ
DRZ50503GXWQ
2. Packing and Shipping:
Truck is nude packing, shipping in container, in bulk , in ro-ro.
We will choose the best shipping type basis on truck volume, truck structure, Sail Schedule, clients' requirement for clients!
3. Company Information:
Hubei Dong Runze Special Vehicle Equipment Co., Ltd. is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
Our advantage:
(1) We have own factory located in Suizhou---the special truck town of China.We can control every details----the development, the quality and the cost. As a result we can supply the quality goods with most competitve price.
(2) We are familiar with the whole Chinese special truck market. And we are clear the different advantage and different quality level for each factory. So we can consolidate the resource for the customers and supply the most suitable goods for them.
(3) There is a stronge professional team in our company including engineers and business executives. So we can provide the best solution and service for all customers.
If you have any other questions or there is anything we can do for you, pls feel freely to let me know. We are glad to provide the best service.
4. Our Service:
Left-hand drive, if you need Right-hand drives, please inform us, we will make special order for you.
We highly recommend this sewage suction tank truck. It's in an excellent condition and also with good quality and competitive price. Further information, pls feel free to cantact with me or visit our website, we will offer our best service.
If you have any requirements about special trucks, kindly let me know, I will do my best fo provide the most suitable type and competetive price for you.
Certifications
1.Are you trading company or manufacturer ?
We are Group Corporation manufacturer ,have Group Factories Contractor.2 .Can I have samples of this type of product to test the quality?
Yes, you can buy any sample to test the quality,our MOQ is 1 unit.
3. What's the delivery time and can you lower the price?
It depends on your order.The delivery time is within 30 workdays after we received your prepayment. If you have placed an order of large quantities, then,of course, the price can be lowered.
4.Can you supply some quick-wear parts? Yes, we can supply the parts as your request,such as traction,traction pin,balance beam and plate spring,hanging accessories,turntable,all kinds of brake pads,brake pan, bearings,etc.
6.Do you have any used products for sale? We have products in stock for choices,the prices are favorable,we'll show you our stock products if you need.
7.What's the payment terms?TT 30% as deposit, balance before shipment by TT or at sight.
8. How to guarantee customers get the goods smoothly after they payment?
Don't worry,dear.We have joined the trade assurance,you can place the order by trade assurance,if we don't delivery products, the deposit will be returned to you.
9.How can you ensure the quality of the products?
Don't worry,dear.We have joined the trade assurance,if the products have quality problems when you received them,the payments can be refund to you.
Looking forward to receiving your inquiry!
