• Model NO.：CLW5087GYK
• Drive Wheel：4x2
• Hoesrpower：150-250hp
• Condition：New
• Vacuum Pump：Famous International Brand
• Suction Time：<5min
• Drive Model：Right Hand Drive & Left Hand Drive
• Tank Material：5mm Carbon Steel
• Sewage Suction Pipe：8m
• Effective Suction Range：>8m
• Warranty：1 Year
• Chassis Brand：Dongfeng, Foton, Sinotruk HOWO, Isuzu, etc.
• Sewage Tank Capacity：5cbm 5m3 5cubic Meter 5000liters 5t 6t
• Delivery Time：30 Days
• Painting：Customized
• Wheelbase：4700mm
• Water Tank Capacity：4cbm 4m3 4cubic Meter 4000liters 4t 5t
• Transport Package：Naked Packing, RO-RO, Bulk Ship
• Specification：2cbm, 3cbm, 4cbm, 2ton 3ton 4ton
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：87059099
• Production Capacity：500unit Per Month

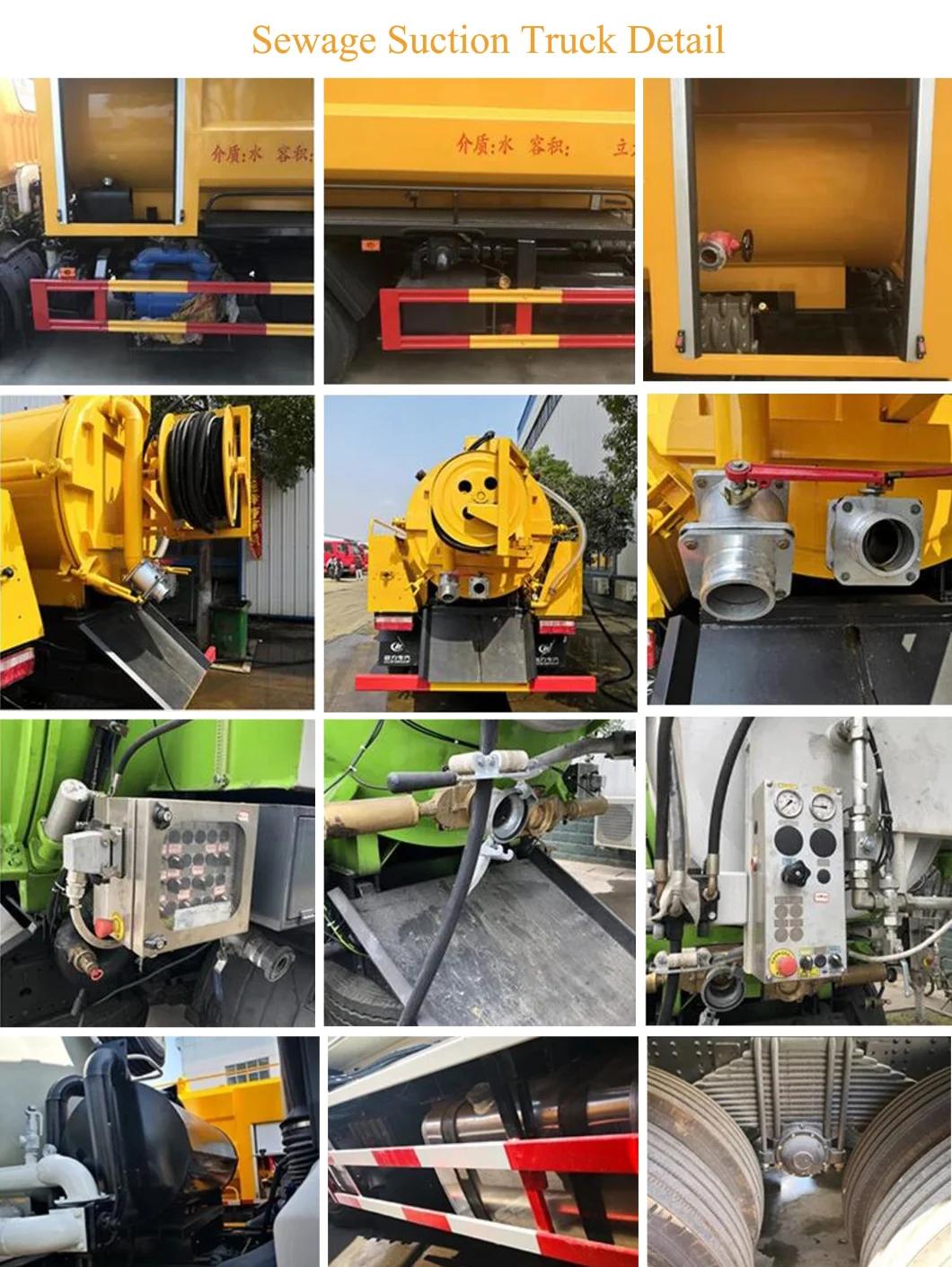

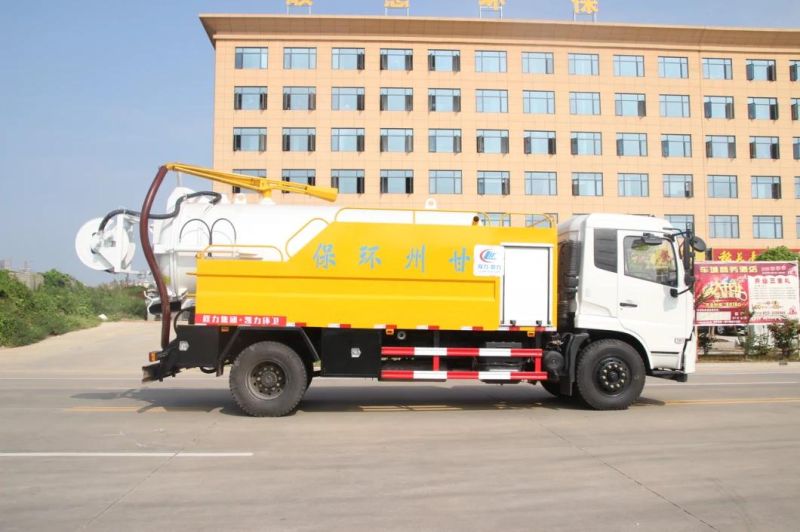

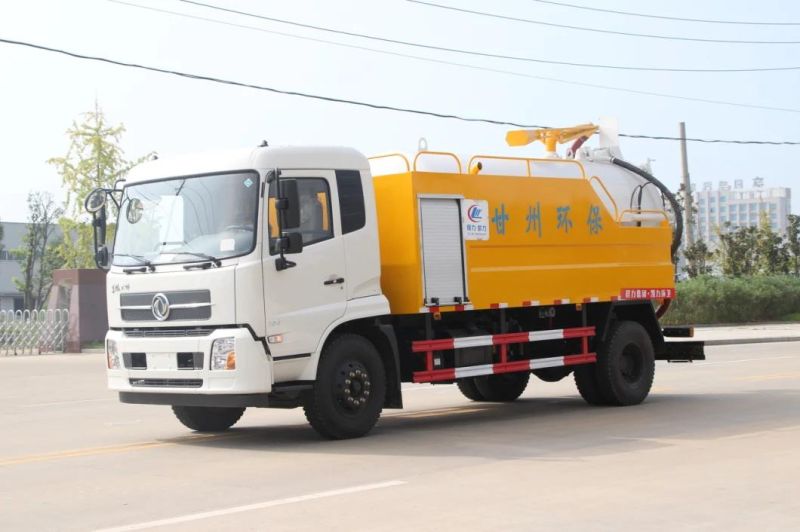

Dongfeng high pressure washing and cleaning sewage suction tanker truck

Cabin

Single row cab, two doors, rated passengers 2 or 3





Chassis

Brand

Dongfeng

Drive type

4*2

Tire

9.00R20 with 1 spare tire

Tire No.

6+1(spare)

Braking System

Air brake

Transmission

Manual, 6 forward and 1 reverse

Engine

fuel type

diesel

Horse Power(kw/hp)

132kw/180hp

Displacement(ml)

4500ml

Emission standard

Euro 2or3





Dimension & weight

Overall dimension (L*W*H/mm)

8700×2420×3680mm

Axles No.

2

Curb Weight(kg)

4700

Max speed(km/h)

90

performance parameter

Water Tank volume(L)

4000

Sewage Tank volume(L)5000

Tank material

5mm carbon steel or stainless steel ,round tank

Vacuum pump

high quality special vacuum pump, vertical suction lift is about 7-10m.

Standard configuration

inspect window, one gravity mouth, cleaning apparatus,5 meter long suction pipe, oil-water separators, overflow valve, etc, .

Main function

With self-priming, self-discharging function, with dump function, rear door is controlled by hydraulic.
