4.0 M3 Self Loading Concrete Mixer Truck (HQ4.0) for Sale

Weifang Haiqin Top Machinery Co., Ltd.
  • Certification:ISO9000, CE, SGS, Rops&Fops
  • Transmission Type:Automatic
  • Emission Standard:State four
  • Displacement:4
  • Payload:40T
  • Fuel:Diesel

Base Info

  • Model NO.:HQ4.0
  • Drive Mode:6x4
  • Maximum Horsepower:200-300hp
  • Condition:New
  • Engine:China 92kw or Cummins for Option
  • Operation Weight:7800 Kgs
  • Concrete Output:4.0 M3
  • Concrete Loading Weight:40 Ton
  • Transport Package:Nude
  • Specification:CE, ISO, SGS
  • Trademark:Haiqin
  • Origin:Shandong, China
  • HS Code:87054000
  • Production Capacity:8000 Units , Year

Description

Basic Info.

Model NO. HQ4.0 Drive Mode 6x4 Maximum Horsepower 200-300hp Condition New Engine China 92kw or Cummins for Option Operation Weight 7800 Kgs Concrete Output 4.0 M3 Concrete Loading Weight 40 Ton Transport Package Nude Specification CE, ISO, SGS Trademark Haiqin Origin Shandong, China HS Code 87054000 Production Capacity 8000 Units / Year

Product Description

Haiqin Brand Self-Loading Mobile Concrete Mixer truck (HQ4.0) introduction .

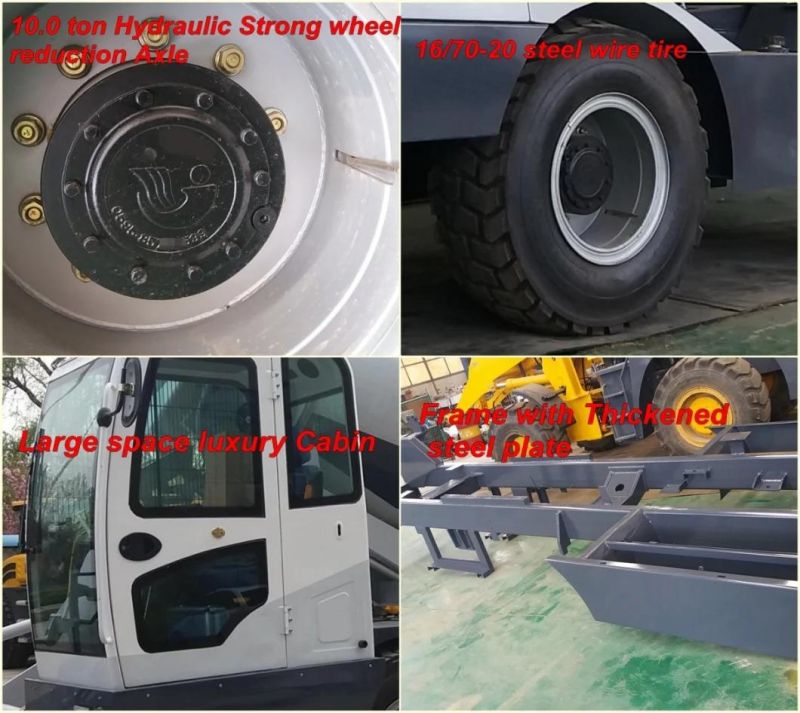

1, Standard Configuration and Feasures:


1) With Chinese YTO 85KW or Yunnei 92kw ENGINE, Cummins engine for option .
2)Chassis frame and the tank are made of manganese steel.the drum thickness is 6mm and buttom of the drum is 8mm.
3)Four wheel drive with 4 wheel air brake
4)Max.15 ton loading axles with good performance with the machine with full concrete loading
5)CVT transmission have good quality,Easier operate and never flameout at rough terrain.
6)Luxury cabin with FOPS&ROPS approved,With adjustable steer wheel,Luxury seat,Single handle joystick powershift control
7 about the rotation ,we use Eton  Slewing motor, Chinese brand mixing motor
8)Discharge chutes removable and angle changable
9)Famous brand Camel battery with Big AH
10)Hydraulic water pumping system,With water meter.High pressure washing gun.
11) weighting system with print.
4.0 M3 Self Loading Concrete Mixer Truck (HQ4.0) for Sale

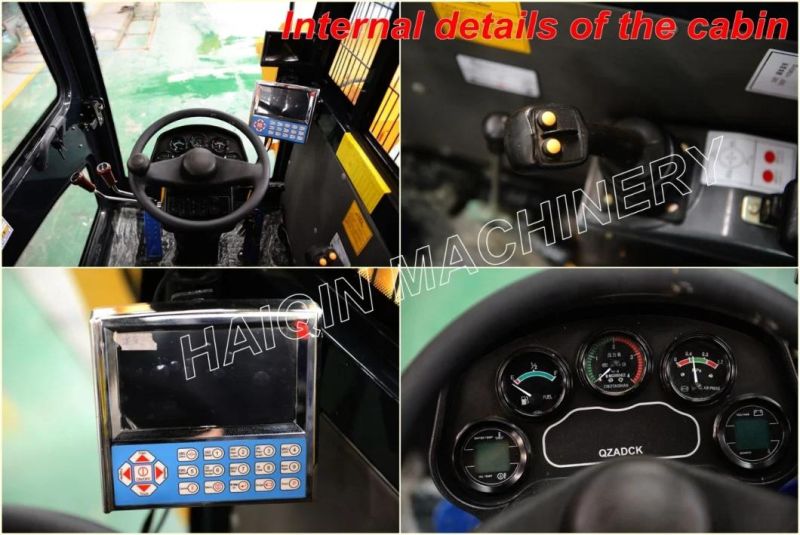

2,Interior photo of the mobile concrete mixer truck Cabin :
4.0 M3 Self Loading Concrete Mixer Truck (HQ4.0) for Sale

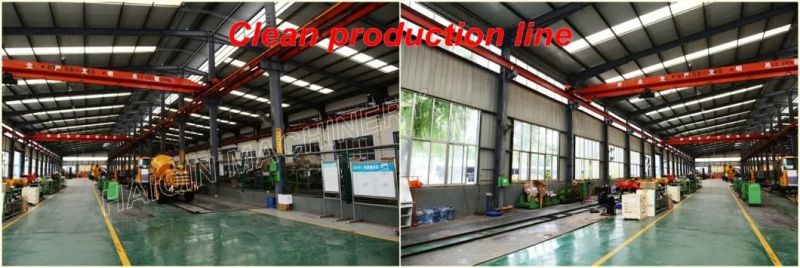

3, Clean production line :
4.0 M3 Self Loading Concrete Mixer Truck (HQ4.0) for Sale
4, Actual work picture of Haiqin Brand Mobile concrete mixer :
4.0 M3 Self Loading Concrete Mixer Truck (HQ4.0) for Sale

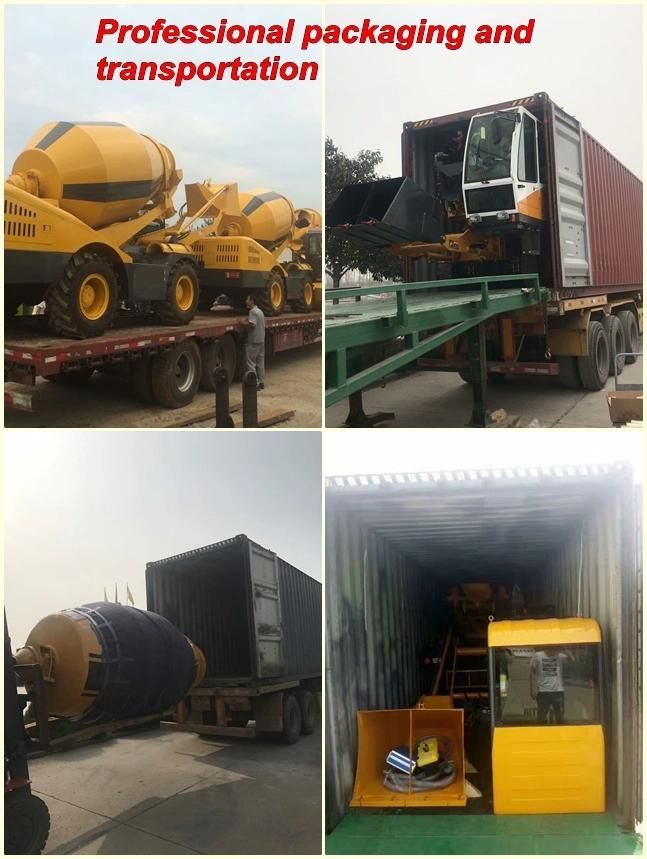

5, Loading pictures:
4.0 M3 Self Loading Concrete Mixer Truck (HQ4.0) for Sale
6, Details Specifications :

Drum capacity
5.5m³
Concrete output4m³.
Loading ratio76%

Rotary drum
Discharge mouth height 1.8 meters.Level turn 300 ° (options)
Production capacity
4 batches in an hour.16 cubic meters per hour
ENGINEYTO 85KW or Yuchai 95KW or Cummins
transmission wayFull hydraulic drive.4 wheel drive and 2 turns.All the power comes from hydraulic oil, including walking 4X4.

Climbing ability
30%

speed
Low speed 0-25 km/h, high speed 0-45 km/h.
CABUltra wide deluxe cab . ROPS type.

hydraulic system

Open feed, two gear pump participate in action.

joystick
A four-way hydraulic pilot with an electric control button controls the bucket.
bucket650L, hydraulic gate.

chute
Equipped with two removable shaft pins to increase the discharge length.
Water supply systemSelf-priming hydraulic drive pump/electronic water flow monitor/high pressure washer (optional).
brakeinner wheel brake and the emergency brake operate on 4 wheels, enabling the small servo pump on the independent double-return road.Negative pressure type stop brake, the front bridge is equipped with inner hub.
TurnHydraulic steering, rear wheel steering.
tyre16/70-20 wire tires
power system24V
OIL TANK/water tank2 x210L water tank. Diesel tank: 125 litres.Hydraulic tank: 130 litres.


weight
7600KG
L*W*H7500MM*2700MM*3380MM

wheelbase
2.35M

metering
Electronic weighing system (optional).
