• Model NO.：20cbm water tank truck
• Transmission Type：Manual
• Payload：20T
• Fuel：Diesel
• Drive Wheel：6×4
• Engine Capacity：6 - 8L
• Condition：New
• Max Speed(Km/H)：75
• Wheelbase (mm)：4600
• Curb Weight(Kg)：13540
• Overhang(Front/Rear) (mm)：1500,1870
• Transport Package：Nude Packing
• Specification：10350*2496*3048mm
• Trademark：SHACMAN,HOWO
• Origin：China
• Production Capacity：200units,Month

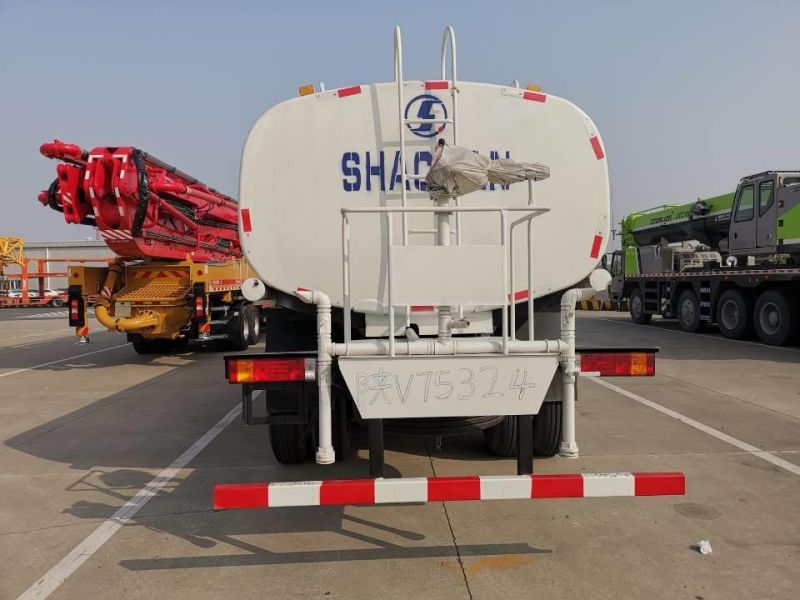

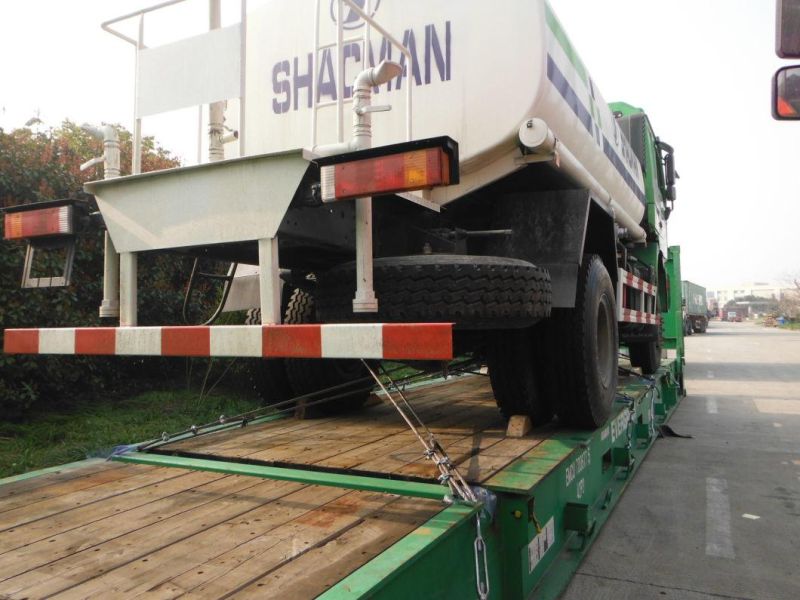

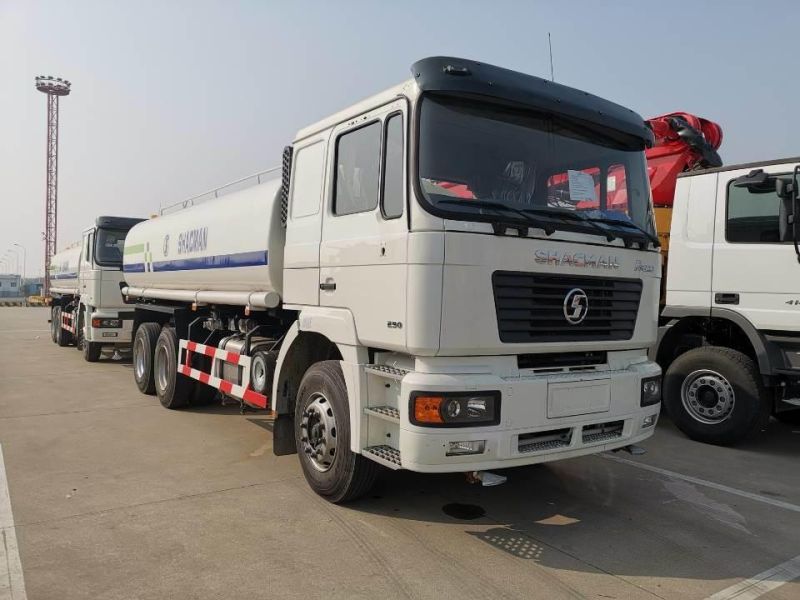

WATER TANK TRUCK- ZZ1257N4617HOWO /6x4 series /4600+1350 wheelbas" Technology Cabin6x4,WATER TANK TRUCK, HOWO76 cabin(Single sleeping bed,A/C), with CNHTC WD615.69 engine, 336HP, with HW15710 transmission,ZF8098 steering, with 12.00R20 tyres, etc.  Details for the specification List SPECIFICATIONTank volume:m³20 m³Dimension(Lx W xH)10350×2496×3048         Approaching angle/Departure angle(°)19/23Overhang(front/rear) (mm)1500/1870Wheelbase (mm)4600Max speed(km/h)75Curb weight(kg)13540Engine (Steyr technology, made in China)Model WD615.69, water-cooled, four strokes,6 cylinders in line with water cooling, turbocharged and inter-cooling, directly injectionFuel type    Diesel  Power, max(kW/rpm)247/2200EmissionEURO IIFuel tanker capacity (L)300Transmission ModelHW13710CL,10 forward&2 reverse Brake systemService brakeDual circuit compressed air brakeParking brakespring energy, compressed air operating on rear wheels Steering system ModelZF8098 Front axle HF7Rear axle MCY13Tyre 295/80R22.5Electrical systemBattery 2X12V/165AhAlternator28V-1500kwStarter 7.5Kw/24VCabHOWO70 cab(no bed,A/C),all-steel forward control,55º hydraulically tillable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers.
