• Model NO.：HTC1020
• Capacity：800kg
• Driving Type：4X2
• Steering：LHD, Rhd
• Brand：Sinohtc
• Transport Package：Container
• Specification：ISO
• Trademark：SINOHTC
• Origin：Shandong
• HS Code：87012000
• Production Capacity：100 PCS, Month

Basic Info.

Model NO. HTC1020 Capacity 800kg Driving Type 4X2 Steering LHD, Rhd Brand Sinohtc Transport Package Container Specification ISO Trademark SINOHTC Origin Shandong HS Code 87012000 Production Capacity 100 PCS/ Month

Product Description

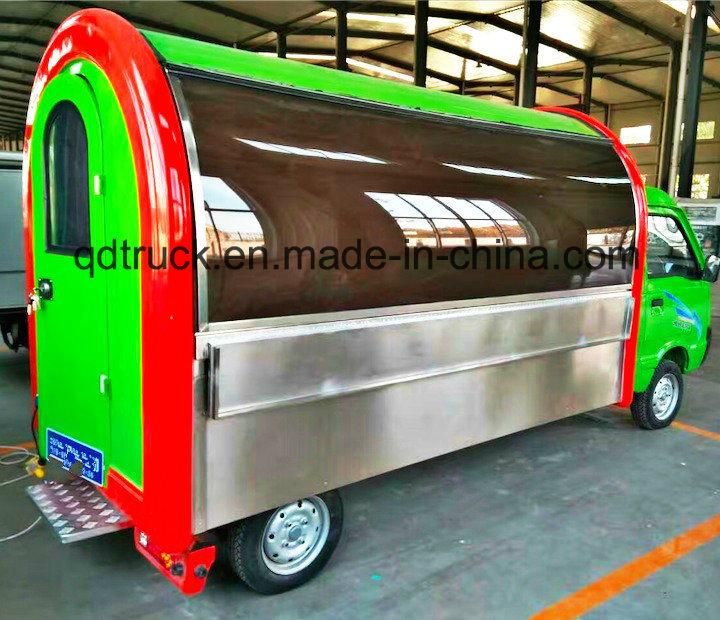

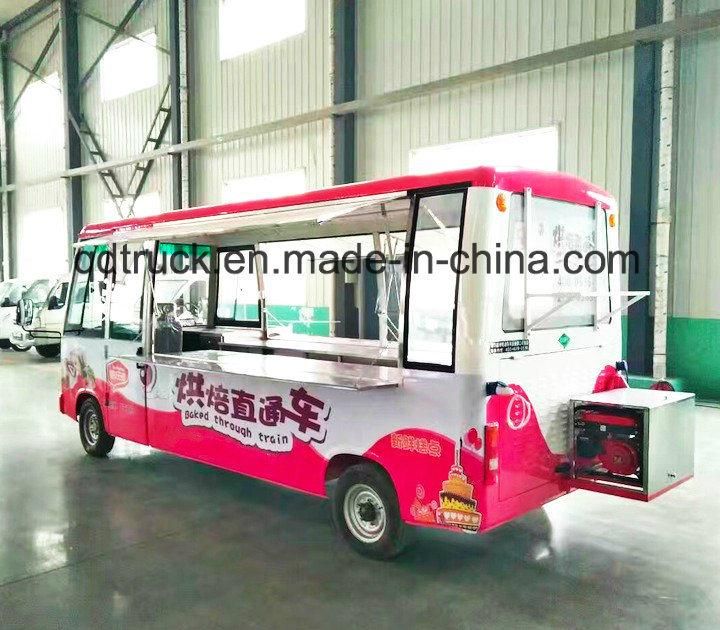

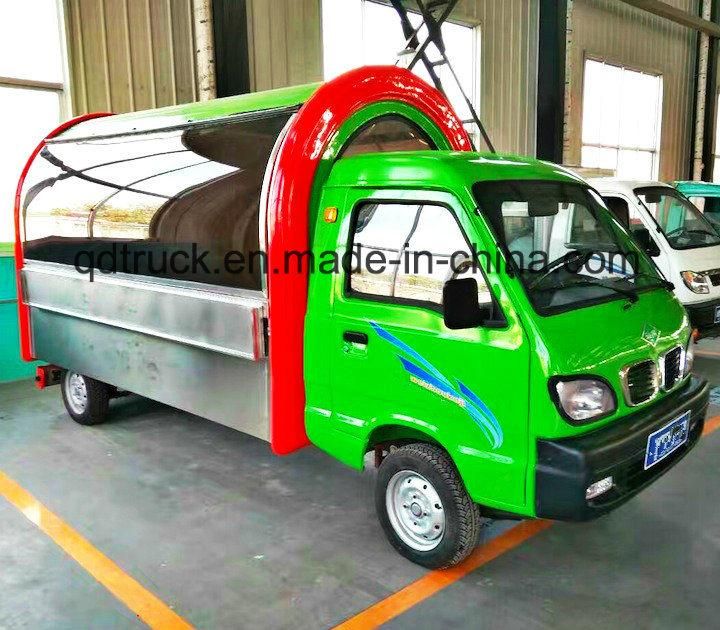

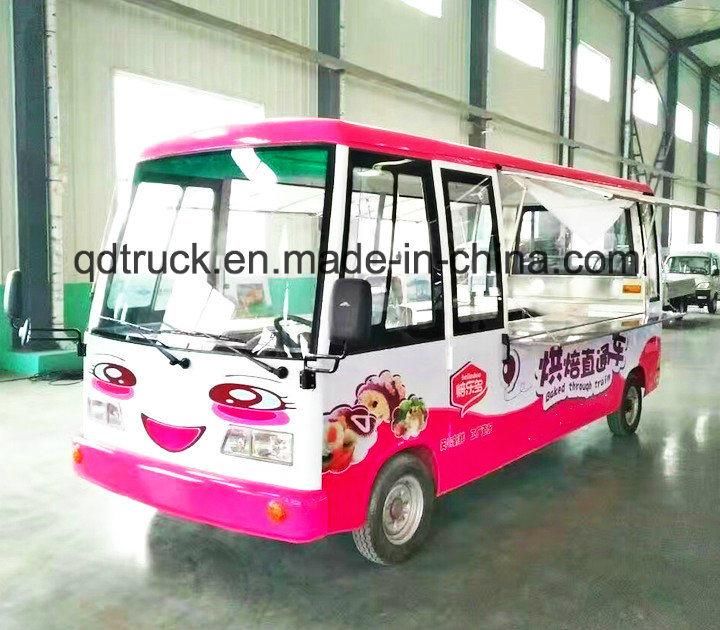

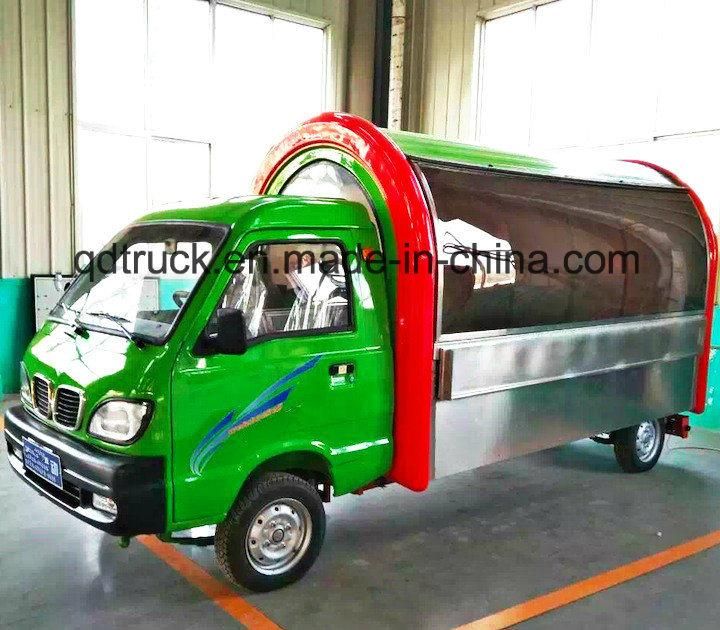

Mini electrical truck

Company information:
We're one professional manufacturer which refitting special truck and trailer in China, established in 1969, more than 40 yrs producing experience, a growing enterprise with endless innovations and development. Our corporation mainly specializes in the various semi trailers and special vehicle related business, such as dump truck, tanker trailer, concrete mixer truck, and etc. Also, our business line ranges from the research, development, and design to the manufacture and sales for other automobile accessories, especially for axles and hydraulic cylinders. We're one of the earliest company to get the approval of the ISO, CCC and Compulsory Product Certification Enterprises. We have exported more than 30 countries from 2005.Looking forward to your visiting or calling.




We keep good relations with main truck manufactrers in China. And we can supply all brands dump truck made in China. HOWO, SHACMAN, BEIBEN, DONGFENG, SINOTRUK, BEIBEN, FOTON, C&C, and so on. More details for these trucks, feel free to contact us please.

RHD & LHD electric truck eOne-T02(72V/7.5KW/80km/h),electric mini truck,electric pickup,2 seats

1.Product details:

Condition	New	Place of origin	Shandong China	Model	Extreme edition
Application	ice cream truck	Power	4.5kw	Weight	1400kg
Voltage	72v	Warranty	1 year	Colour	yellow green red or according to the customer requirement
Type	food truck equipment	Brandname	SINOHTC	Dimension(L*W*H)	5000*1940*2420mm

Power:220V-240V
Motor:4.5KW
Battery:6 pcs /180AH 72V
Maximum mileage:65KM
Speed:25KM/H
Utilization area: 8 square meters
1.8m business windows bilateral sides
Weight: 1320kg
Max load weight: 400kg
Material:
1. Truck body (steel plate+insulated plate+PVC plate) insulated and fireproof
2. Metallic Paint
3. Stainless chassis
4. Toughened glass windows
5. Awning: polyester+Acrylic
6. Tyre-145 tubeless tires
7. Audio speaker
8. Power cable





Model	Electric truck
Size	3400*1300*1740
Carriage Length	2.2m
Max. speed	40km/h
Power	4kw
Total weight	1000kg
Loading weight	800kg
Battery voltage	72V 180Ah
Climbing ability	15%
Driving mileage	80-120km
Min. ground clearance	150mm
Braking distance	(full load,20km/h) 6m
Min. turning radius	8m
Before the wheel track	1150mm
After the wheel track	1220mm
Color	According to requirement
Charging time	6-8 hours
Battery Charger	General Charger/Intelligent Battery Charger

 (The actual specification and size are not limited to the above figure, it shall be made based on the customers' requirements.)

2.Material
  2.1 Body: Electric truck shell adopts thickening choice steel production
  2.2 Chassis:Integral steel frame construction and suspension components treated with rust resistant.
3.Advantage::Less noise and zero emissions, only 1USD energy cost per 150km, energy efficiency performance, driver comfort, delivering reliability, low maintenance costs, suit every intensive or light operation.
4.Application: Warehouse, express, market, transport cargo and passengers in country and city, etc.

5- Technical Advantages
1)  The chassis system is designed as trapezoidal structure with high strength and high safety factor based on the standards for freight vehicle; the structure has high reliability and is simple to manufacturer; and it is easy to guarantee the processing requirements.
2)  The rear axle, which is advanced electronic electric axle jointly developed and designed by our company and the technology center of WEIFANG Vehicle Components Co., Ltd., has full-floating mechanism and is featured by high transmission efficiency, low noise, no leakage and stable speed changing. The input shaft of rear axle and output shaft of motor are connected via involute spline and there is no drifting clearance; the transferred torque is large, which guarantees the good drive performance of the complete vehicle.
3)  The electric control system, which is U.S. advanced INBOER electric control system, has good under-voltage and over-current protection capability, temperature control, speed regulation, current regulation and vehicle dynamic monitoring capability, as well as high intelligence degree. It is the excellent product that fills the domestic and foreign blank.
4)  D. The patented appearance design is fashionable and has smooth line; it meets the principle of aerodynamics; the   driving resistance of vehicle is reduced and the driving distance is prolonged.
5)  The high-efficiency and sensitive double-pipeline hydraulic braking system makes the vehicle more safe and reliable.
6)  The newly designed adjustable push-pull battery box makes the battery maintenance t more convenient.
