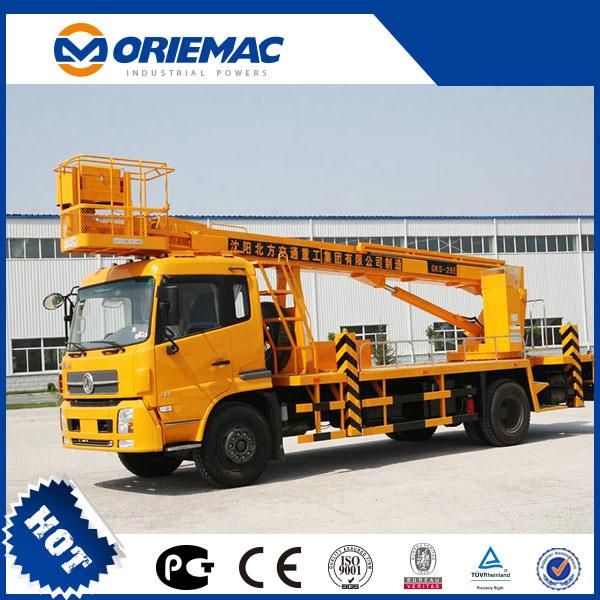

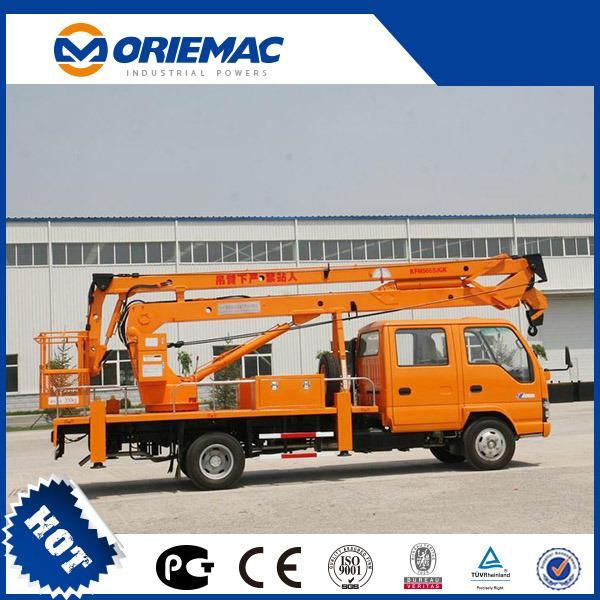

Isuzu Chassis 14m Truck Mounted Aerial Working Platform
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Type：Z
- Certification：ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
- Emission Standard：Euro 3
- Hoesrpower：150-250hp
- Payload：20T
- Fuel：Diesel
Base Info
- Model NO.：KFM5061JGK10S
- Transmission Type：Automatic
- Drive Wheel：4x2
- Condition：New
- Max. Working Height：14m
- Chassis Model：Isuzu Nkr77llwcjay
- Loading Capacity：200kg
- Structure：3 Section Floding Arm
- Engine Model：4kh1-Tcg40
- Color：Yellow
- Transport Package：Nude Packing
- Specification：CE, ISO9001
- Trademark：N. Traffic
- Origin：Liaoning, China
- HS Code：8428909090
- Production Capacity：500 Set,Sets , Month
Description
Bulletin No.
KFM5061JGK10S
Type
GKS-14QX
External dimensions ( mm )
7050×2020×3250
Structure type
Three-section telescopic boom
Working Cage
Internal size ( mm )
1200×600×1100
Rated loading ( kg )
200 ( or 2 persons )
Max. Working height ( mm )
14000
Max. Height from ground ( mm )
12300
Max. Working radius ( mm )
9300
Working radius when doing the highest height ( mm )
1320
Working Boom
Lifting angle of main boom ( º )
-24_78°
Out rate speed ( mm/sec )
8500/50
Ret rate speed ( mm/sec )
8500/50
Boom rack rotation angle ( º )
360
Boom rack rotation speed ( r/min )
1.0
Outrigger
Vertical span ( mm )
3050
Horizontal span ( mm )
3600
Traveling of vertical outrigger ( mm )
450
Adjustment
Single adjustable
