HOWO 10cbm Garbage Truck 10ton Skip Loader Bin Refuse Truck

Chengli Special Automobile Factory
  • Type：Skip Loader
  • Certification：ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
  • Volume：10001-15000L
  • Emission Standard：Euro 3
  • Transmission Type：Manual
  • Payload：20T

Base Info

  • Model NO.：CLW520HLMU6
  • Fuel：Diesel
  • Drive Wheel：4×2
  • Brand：Sinotruk
  • Models：Medium
  • Usage：Dump, Swing Arm Type, Sealed, Hang Barrel Type, Arm Type, Compression Type
  • Condition：New
  • Truck Name：Sinotruk HOWO 4X2 10cbm Skip Loader Garbage Truck
  • Material：Q235
  • Power of Movement：Hydraulic Pump
  • Steering System：LHD or Rhd
  • Color：Customized
  • Discharging Time：<30s
  • Loading Time：12-30s
  • Tank Material：Carbon Steel
  • Control：Automatic
  • PLC：Siemens
  • Oil Pressure：19.6,200 MPa,Kg
  • Garbage Unloading Way：Lifting and Dump
  • Container Thickness：3mm (Side) 4mm(Bottom)
  • Operation Control System：Electrically Hydraulic Control
  • Electric System：12,24V
  • Transport Package：Nude Packing with Wax
  • Specification：8900*2300*2900
  • Trademark：CLW
  • Origin：China
  • HS Code：8705309000
  • Production Capacity：20054 Unit Per Month

Description

Up-parts DescriptionMaterial of garbage containerQ235 carbon steelOperation control systemElectrically hydraulic controlSwing arm operating systemPower take-off, balance valve, oil pipe, fuel tank, oil pump, manual mutil-way reversing valve, balance valve, one-way hydraulic lock, etc.Especially suitable forShort distance transportation, sanitation department cleaning, transportation, etc.Swing arm maximum pivot angle145°Hoisting time30sUnloading time50s

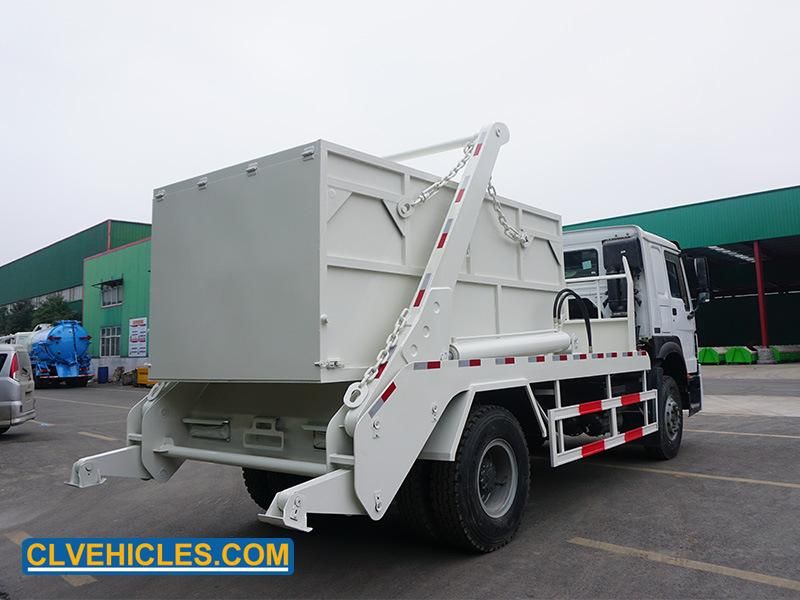

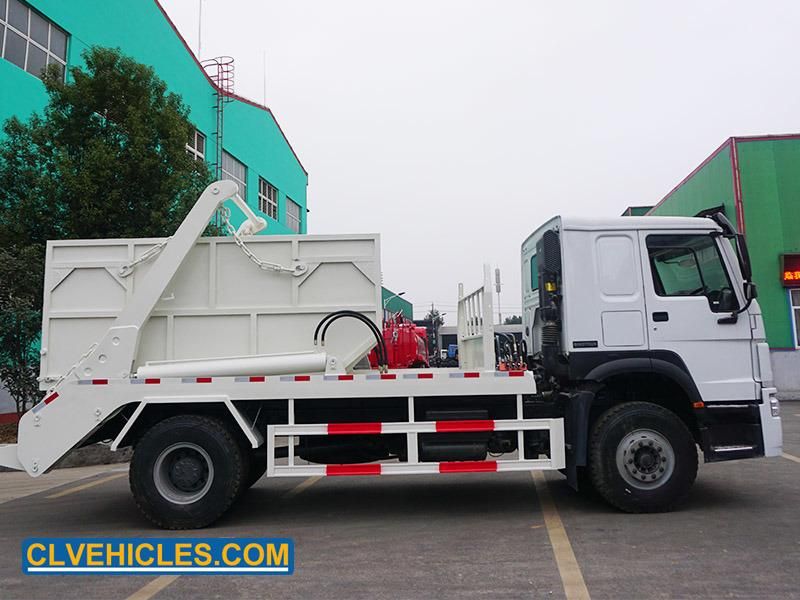

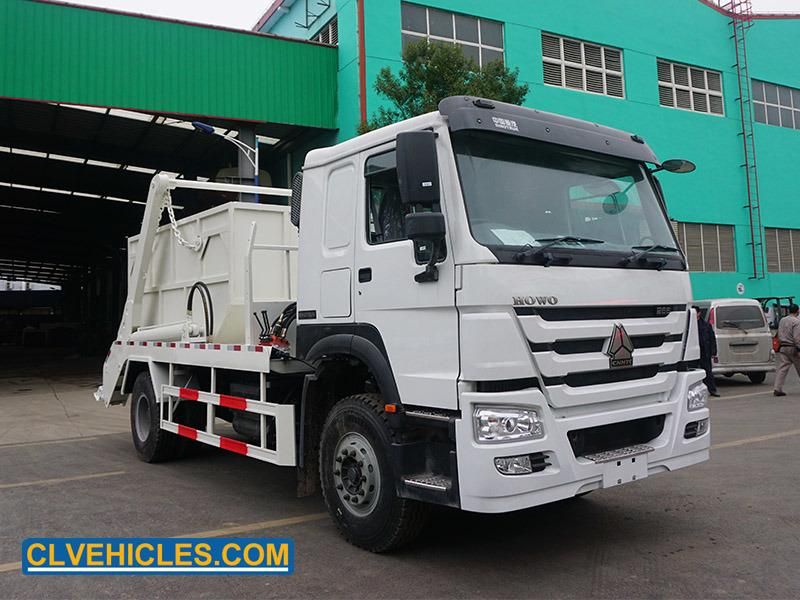

Skip Loader Garbage Truck Images

HOWO 10cbm Garbage Truck 10ton Skip Loader Bin Refuse Truck
HOWO 10cbm Garbage Truck 10ton Skip Loader Bin Refuse Truck
HOWO 10cbm Garbage Truck 10ton Skip Loader Bin Refuse Truck

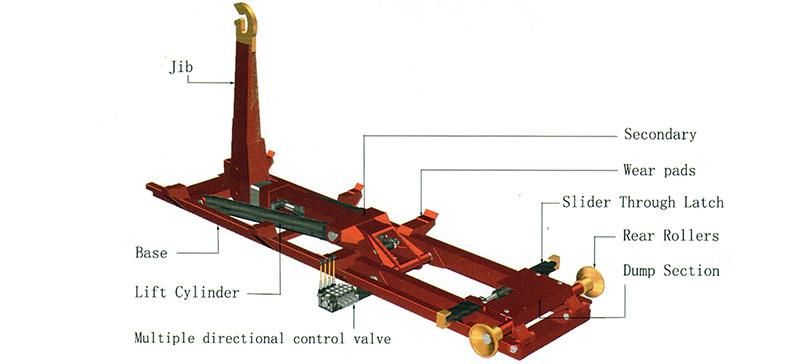

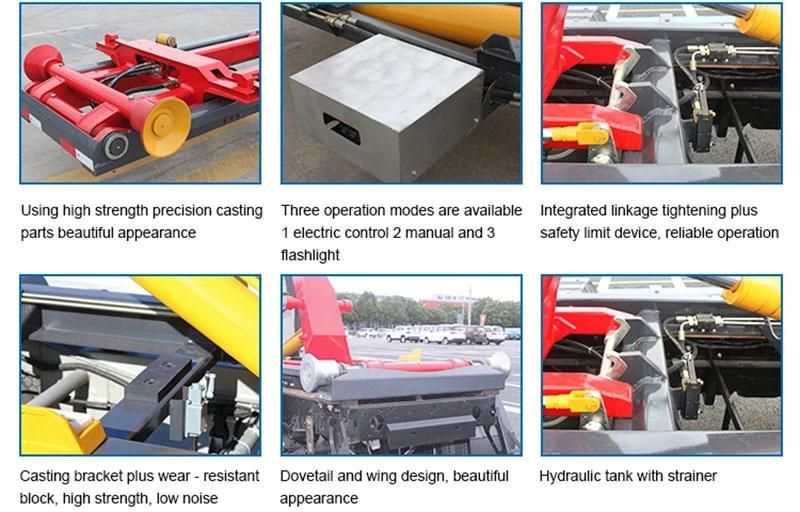

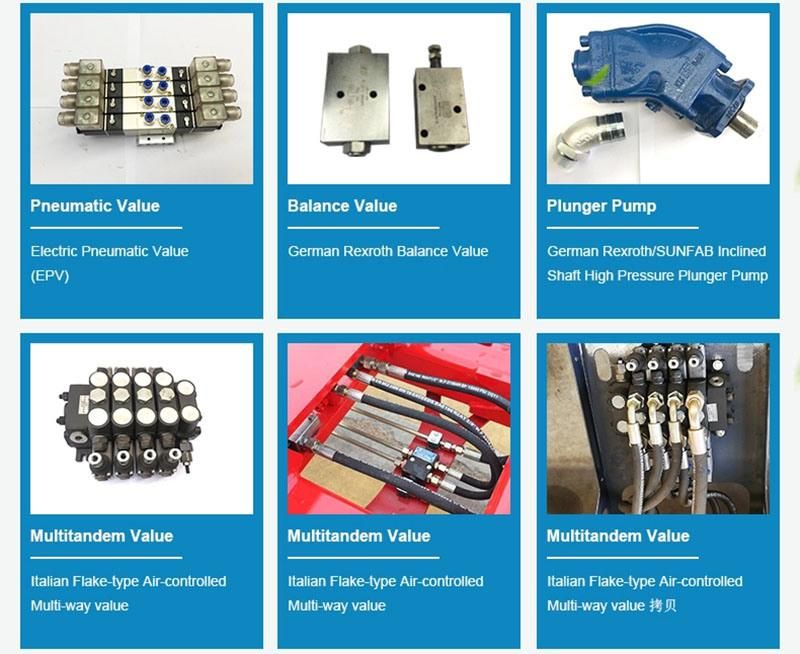

Skip Loader Garbage Truck Details
HOWO 10cbm Garbage Truck 10ton Skip Loader Bin Refuse Truck
HOWO 10cbm Garbage Truck 10ton Skip Loader Bin Refuse Truck
HOWO 10cbm Garbage Truck 10ton Skip Loader Bin Refuse Truck

About Us
HOWO 10cbm Garbage Truck 10ton Skip Loader Bin Refuse Truck

SINOTRUK HOWO 4X2 266HP 290HP 10M3 Skip Loader Garbage Truck Sinotruk HOWO 4X2 266HP 10Ton10m3 Swing Arm Garbage Refuse Skip Bin Loader Truck HOWO 10CBM Garbage Truck 10Ton Skip Loader Bin Refuse Truck
