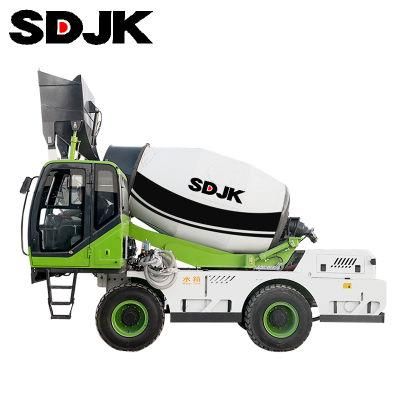

3.5 Cubic Meters Self Loading Concrete Mixer with Pump Price
Shandong JK Machinery Co., Ltd.- Certification：ISO9000, CE
- Transmission Type：Automatic
- Emission Standard：Euro 2
- Fuel：Diesel
- Maximum Horsepower：116HP
- Condition：New
Base Info
- Model NO.：JBC-35
- Power(W)：85kw
- Weight：7200 Kg
- Warranty：1 Year
- Concrete Output：14cbm,H
- Engine：Yuchai4105
- Transport Package：40hc
- Specification：7830*2680*4170 mm
- Trademark：SDJK
- Origin：Shandong
- HS Code：8705400000
- Production Capacity：500sets,Month
Description
Model
JBC-35
Mixing Drum
Mixing Capacity
3.5 m³
Geometrical Capacity
5.3 m³
Concrete Output
3.5 m³ / batch, 14 m³ / h
Drum Rotating Speed
16-20 rpm
Drum Rotating Angle
270°
Engine
Model
YUCHAI 4105
Type
4-cylinder, 4-stroke, turbo-supercharged,water-cooling
Rated Power
85 KW (116HP) @ 2400 rpm
Emission Standard
Euro II
Loading Bucket & Discharge Chute
Loading Bucket Capacity
0.6 m³
Loading Times to Full Drum
6 Times
Discharge chute
2 Sets
With Extender
Rotate 90°
Water System
Max. Water suction Volume
550 L/min. (self-priming hydraulic water pump)
Water tank Volume
2x310 L
Mixer
Max. Travel Speed
30 km/h
Gradeability
40°
Min. Turning Radius
5300 mm
Operating Weight
7200 kg
Max. Load
8400 kg
Max. Gross Weight
15600 kg
Overall Dimension (L×W×H)
7830*2680*4170 mm
Fuel Tank Volume
75 L
Total Hydraulic System Capacity
75 L
Oil Tank Volume
16 L
