• Model NO.：EV1
• Speed：80km,H
• Specification：3400*1515*2050
• Trademark：SUNTAE
• Origin：Shandong

Basic Info.

Model NO. EV1 Speed 80km/H Specification 3400*1515*2050 Trademark SUNTAE Origin Shandong

Product Description

First of all, it is an electric truck, which can be a container or a truck. Use container carbon fiber composite.
Secondly, the body adopts the hydraulic double-sided self elastic European wing door design, with multi-functional shelf partition, the second generation intelligent integrated steering wheel, SUV model design, high chassis design, short wheelbase carbon fiber body design.
1.Basic Parameters

overall dimension ( mm)	3400*1515*2050
interior size of van (mm)	1500*1500*1270
tread (mm)	1350
wheelbase (mm)	2100
seating capacity	2 persons
BRAKE SYSTEM F/R	F: disk, R: drum
CHASSIS TYPE	Load-bearing chassis
driven type	rear wheel drive
chassis category	bearing type
curb weight (kg)	880
peak speed (km/h)	60
NOMINAL LOAD CAPACITY(kg)	500
grade ability (%)	20
rated load quality (kg)	340
curb weight (kg)	1350
MOTOR
TYPE	Permanent magnet synchronous machine
RATED POWER / ROTATE SPEED / TORQUE (kW/r/min/N·m)	10/4500/21.2
PEAK POWER / ROTATE SPEED / TORQUE (kW/r/min/N·m)	30/6000/80
About Motor
motor type	permanent magnet synchronous motor
rated power (kw)	13
max torque (n.m)	130
max speed (r/min)	6000
Power Battery
battery voltage (v)	144
llattery type	lithium ion battery
Battery Charger
charging type	built-in charger
charger	max charging current 23A
distance per charge (km)	100
MAX SPEED(km/h)	80
charging time (h)	4~5
TRANSMISSION SYSTEM	Automatic
CLIMBING CAPACITY(%)	20
BATTERY SYSTEM
BATTERY TYPE BATTERY PACK CAPACITY(Ah)	Lithium iron phosphate battery (FeLiPO4)  72
TOTAL BATTERY PACK CAPACITY(kWh)	8.2 KWH
CHARGING TYPE	Constant pressure constant current
CHARGE CURRENT(A)	MAX CHARGE CURRENT 23A
RATED INPUT VOLTAGE(V),CURRENT(A) FREQUENCY(Hz)	90-265/16Amax/45-65
OUTPUT VOLTAGE(V),CURRENT(A)POWER (kW)	50-198/23/3.3

2. Please send your usage background to get technical consultation from our technical department.

Please see videos of test and application at our motor branch
EIFPMG youtube channel https://electric-car.en.made-in-china.com

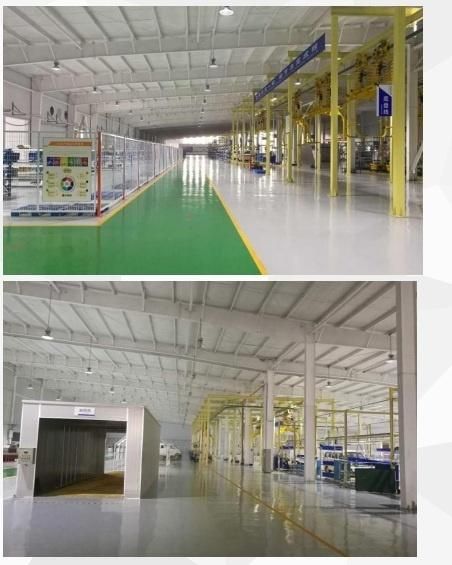

About SUNTAE Electric Car Production Line:


What we will do for you:
1. provide technical consultant before order and confirm your actual technical requirement according to your description on usage within 1-3 working days;
2. supply the right and approved under serious quality inspection system within 10 days(if customized model,we will recheck the delivery time);
3. provide technical support when the product arrives you, to make sure you can run it smoothly in actual field;
4. provide 1 year warranty, and whole life technical support;
5. always update our product information with you.
