10/11/12 Cbm 6X4 New Concrete Mixer Truck/Ready Mix Concrete Trucks

QINGTE GROUP SPECIAL VEHICLES CO., LIMITED
  • Certification：ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
  • Transmission Type：Manual
  • Emission Standard：Euro II
  • Displacement：9.726
  • Payload：30T
  • Fuel：Diesel

Base Info

  • Model NO.：Concrete Mixer Truck
  • Drive Mode：6x4
  • Maximum Horsepower：300-400hp
  • Condition：New
  • Color：Green,Yellow,White,Red,Black.etc
  • Driver Seat：Air Seat
  • Warranty：One Year or 100000km Which Comes First
  • Transport Package：Nude Packing After Painted Wax
  • Specification：9335x2496x3980
  • Trademark：SINOTRUK-HOWO
  • Origin：China
  • HS Code：8705400000
  • Production Capacity：3000units,Month

Description

Type

9cubic meters concrete /cement mixer truck

Chassis model

ZZ1257N3847

Dimension

 9335×2496×3980mm

Rated loading capacity

11850kg

Wheel base

3800+1350mm

Tire specification

12.00-20(11pcs)

Engine model

WD615.69(sino truck brand)

Power

336HP

Emmission standard

Euro 2

Fuel material

Diesel

Max speed

90km/h

Feeding speed

≥3m3/min

Output speed

≥2m3/min

Speed reducer

Import from italy

Water box capacity

300L

8m3concrete mixer

Italy PV089 pump,MF089motor,6SP Gearbox,China 12R radiator

9m3concrete mixer

Italy PV089 pump,MF089motor,TOP P68 Gearbox,China

12L radiator

10m3concreter mixer

Italy PV089 pump,MF089motor,TOP P68 Gearbox,China 12L Radiator

11-12m3concrete mixer

Italy PV089 pump,MF089motor,TOP P75 Gearbox,China 12L Radiator

14m3 concrete mixer

Italy PVA090 pump,MF090motor,TOP P75R or P80 Gearbox,China 25L or 26L Radiator

16m3 concrete mixer

Italy PVA090 pump,MF090motor,TOP P80 Gearbox,China 25L or 26L Radiator

Mixer body material

5mm or 6mm steel plate

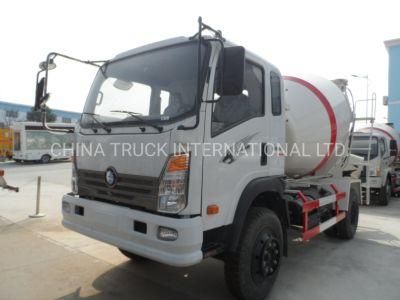

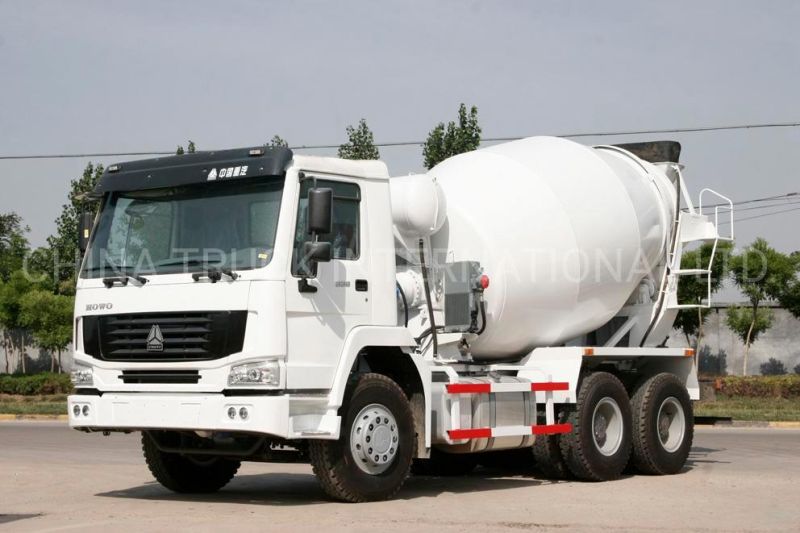

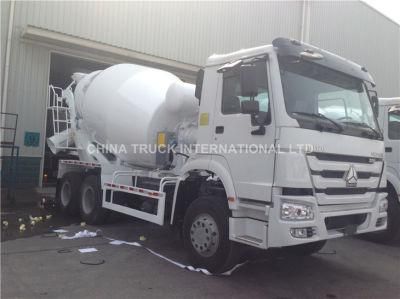

3. Concrete Mixer Truck Photos
10/11/12 Cbm 6X4 New Concrete Mixer Truck/Ready Mix Concrete Trucks
10/11/12 Cbm 6X4 New Concrete Mixer Truck/Ready Mix Concrete Trucks

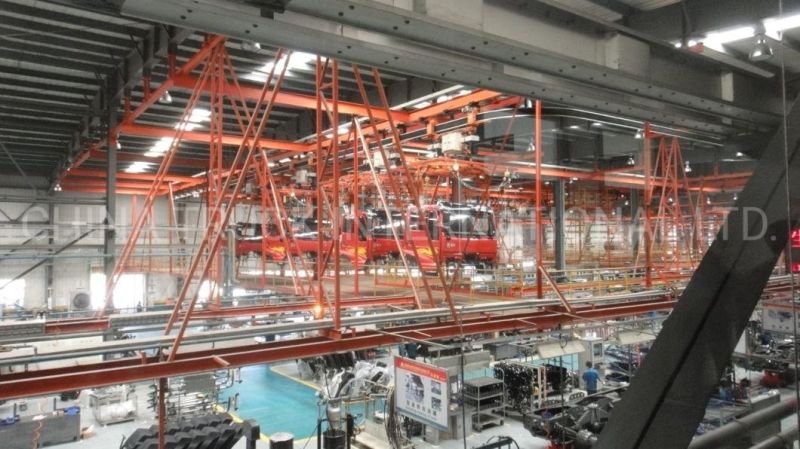

4. Our Factory
10/11/12 Cbm 6X4 New Concrete Mixer Truck/Ready Mix Concrete Trucks

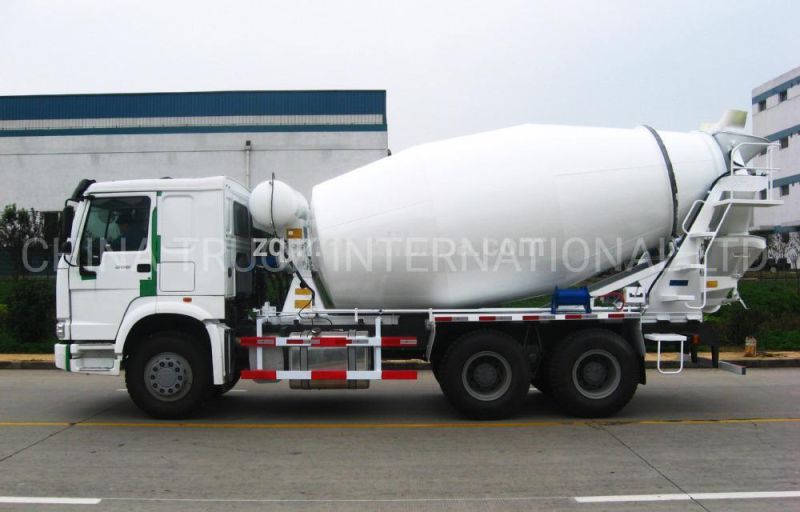

5. Packing: Nude packing after painting wax or according to your requirement.

Shipping:By bulk cargo carrier, RORO
10/11/12 Cbm 6X4 New Concrete Mixer Truck/Ready Mix Concrete Trucks


FAQ

Q1: I want the front two tires are bias tires and the rear 9 tires are radial tires, is it ok ?
   A: We can make the tires as your requirement to suit your country's need.
Q2: What about your products quality ?
   A: Quality is our culture! "Our factory has advanced production technology and management team!
   We always attach great importance to quality controlling from the very beginning!
Q 3: Can i have samples of this type of flatbed semi trailer to test the quality ?
   A: Yes, you can buy any samples to test the quality,our MOQ is 1 unit.
Q 4: What others we can do ?
   A: According to your order, we will provide the best price and quality trucks and trailers.
   And we are well capable in offering overseas after-sales service. Besides, we also provide rational
   packing and shipping program,let shipment save money and security.
Q 5: How to guarantee customers get the goods smoothly after they pay ?
   A: Don't worry, dear. We have been in this field for 10 years, we will send you production photos once in a while, and we will help you to book the latest ship.
Q 6: What's the delivery time ?
   A: The delivery time is within 15 working days after receiving your advance payment.
Q 7: Can you supply some quick-wear truck or semi trailer parts ?
   A: Yes, we can supply truck and semi trailer parts as your request,such as oil filter, fuel filter, air filter, traction, traction pin, balance   beam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads,   brake pan, bearings etc.
 Q 8:  Do you have any used truck and semi trailer for sale ?
   A: We have some trucks and trailers in stock for choice, from 2010-2016 year, the price are favorable. We'll
   show you our stock if you need.
   Q 9:  Which INCOTERMS 2010 TERMS can we work ?
   MAOWO is a professional and sophisticated international player, can handle all INCOTERMS
   2010 terms, and we normally work on FOB, CFR, CIF, CIP, EXW.
   Q 10:  What logistics ways we can work for shipment?
   A: We can ship construction machinery by various transportation tools.
   (1) For 80% of our shipment, we will go by sea, to all main continents such as South America,
   Middle East, Africa, Oceania etc. Either by container or RoRo/Bulk shipment.
   (2) For neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Uzbekistan , Vietnam, Laos  etc.,we can ship construction machinery by road or railway.
   (3) For light spare parts in urgent demand, we can ship it by international courier service, such as
   DHL, TNT, UPS, or Fedex.
