1.5m3, 1.8m3, 2.0m3, 2.5m3, 2.6m3, 3.5m3, 4.0m3 Construction Small Mobile Mixing Machine with Self Loading Function
QINGDAO KONO DEERE MACHINERY CO., LTD.- Transmission Type：Automatic
- Fuel：Diesel
- Drive Mode：4x2
- Condition：New
- Charging Capacity：3.5m3
- Reclaiming Capacity：4.8m3
Base Info
- Model NO.：KD3500
- Motor Power：92kw
- Mixing Power：92kw
- Working Cycle Period：15
- Speed of Mixing Drum：0-14r,Min
- Water Supply Mode：Self
- Discharge Way：Self Dumping
- Outline Dimension：7.5*2.3*3.2m
- Transport Package：Nude
- Specification：3.5m3
- Origin：Shandong China
Description
Main parameter
KD3500
KD2500
MIXING UNIT
Drum capacity
4800L
3600L
Real concrete yield per batch
3500L
2500L
PRODUCTIVITY
up to 4 batches per hour
up to 4 batches per hour
TRANSMISSION
hydraulic
hydraulic
4wheel driver,2 wheel steering
4wheel driver,2 wheel steering
Tire Size
16/70-20
20.5/70-16
Engine
YT0
Weichai
Model
Euro-3 Xinchai 498/YTO 4108
Weichai4102
Diesel Water-cooled
Diesel Water-cooled
65KW
47KW
Speed range
F1: 1-8 KM/H
F2:8-25KM/H
R1:1-8 KM/H
R2:8-25KM/H
F1: 1-8KM/H
F2:8-25KM/H
R1:1-8 KM/H
R2:8-25KM/H
Gear on chassis
Powershift with CVT gearshift(Go forward,Reverse;Quick,slow)
Powershift with CVT gearshift(Go forward,Reversie;quick,slow)
discharge
160º, discharging concrete
160º, discharging concrete
JOYMIX
One joystick to control main functions.
One joystick to control main functions.
weight
6550 kg
5850 kg
Overall dimensions(L×W×H)
7.5X2.3×3.2m
6.9×2.3×2.95m

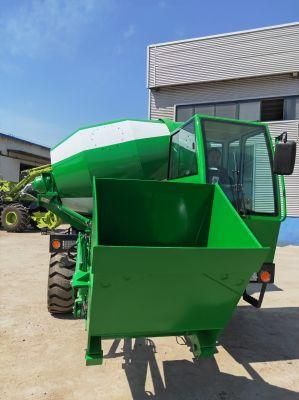

This self loading concrete mixer is used for loading,weighing, mixing, discharging and other functions, and can achieve transportation and on-site construction operations. the productivity is about 12-14 m3/h.
The machine adopts 4 wheels drive, can produce concrete in harsh working conditions efficient and stable.
Equip with high precision weighing system. The aggregate is weighed during the loading process to ensure that the production of concrete to meet the construction requirements.
If you would like to know more about our concrete mixer truck, please feel free to contact us :
