Chengli Kitchen Trash Recycling Garbage Truck for Garbage Transportation Compactor Refuse Trailer

Hubei Weiyu Special Vehicles Co., Ltd.
  • After-sales Service：Yes
  • Warranty：1 Year
  • Type：Garbage Compactor Truck
  • Certification：ISO9000, CCC, CE
  • Volume：3001-6000L
  • Emission Standard：Euro 4

Base Info

  • Model NO.：CLW5060LJC
  • Transmission Type：Manual
  • Payload：5t
  • Fuel：Diesel
  • Drive Wheel：4×2
  • Brand：FOTON
  • Models：Small
  • Usage：Compression Type
  • Condition：New
  • Chassis Brand：Dongfeng, Foton, Sinotruk, JAC, etc.
  • Campacting Ratio：0.8-0.9 Ton,M3
  • Compression Ratio：3-4
  • Compression Cycle Time：No More Than 15s
  • Unload Garbage Time：No More Than 23 S
  • Hydraulic Pressure：16MPa
  • Garbage Box Thickness：Side 3mm, Bottom 4mm, Carbon Steel-Q345A
  • Garbage Box Volume：5cbm, 8cbm, 10cbm, 12cbm, 15cbm, 18cbm, 20cbm, etc
  • Garbage Box Capacity：4ton, 6ton, 8ton, 10ton, 12ton, 15ton, 16ton, etc.
  • Dirty Water Tank Volume：0.2cbm
  • Hopper Volume：0.8cbm
  • Controlling Way：Manual and Electrical Control
  • Color：as Per Customer′s Request
  • Transport Package：Naked Pack with Wax
  • Specification：6725*2100*2280 (mm)
  • Trademark：CLW
  • Origin：Suizhou, China
  • HS Code：8705909090
  • Production Capacity：500 Unit,Month

Description

General Technical ParametersOverall Dimension6725×2100×2280(mm)Gross Vehicle Weight7495(Kg)Curb Weight2800(Kg)Chassis SpecificationChassis BrandDONGFENG, FOTON,JAC,Shacman etc.Drive model4*2CabinSingle Row, LHD, with air condition, audio system, and USB, etc.Number of Passengers2EngineModel101KW/138HPEmission standardEURO 4Displacement4000(ml)Fuel typeDieselGearboxMSB-5MT, 4Forwards & 1Reverse, manual operation, with power steering.Brake SystemOil breakWheel Base3800mmFront/Rear Axle Loading2495/5000(Kg)Approach/Departure Angle24/12°Tire7.50-16, 6pc with 1 spare tireMax Driving Speed95(km/h)Upperstructure SpecificationCompector BoxBox Volume6CBMBox Capacity4TonDirty Water Tank Volume2CBMHopper Volume4CBMCompression density0.8-0.9T/CBMCompression ratio3-4Compression cycle time≤15 sUnload garbage time≤23 sBody ThicknessSide3mm, Carbon Steel-Q345ABottom4mm, Carbon Steel-Q345AThe Electromagnetic ValveUZCT-115/24V, 2setsHydraulic Pressure16MpaControlling WayManual and electrical controlOther Configuration
  1. Tail feed flip frame or flip bucket, PLC one-button control system, etc.

    After-sales Service

    1)Pre-sales Service: Communicate with customers, analyze their needs.
    2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
    3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

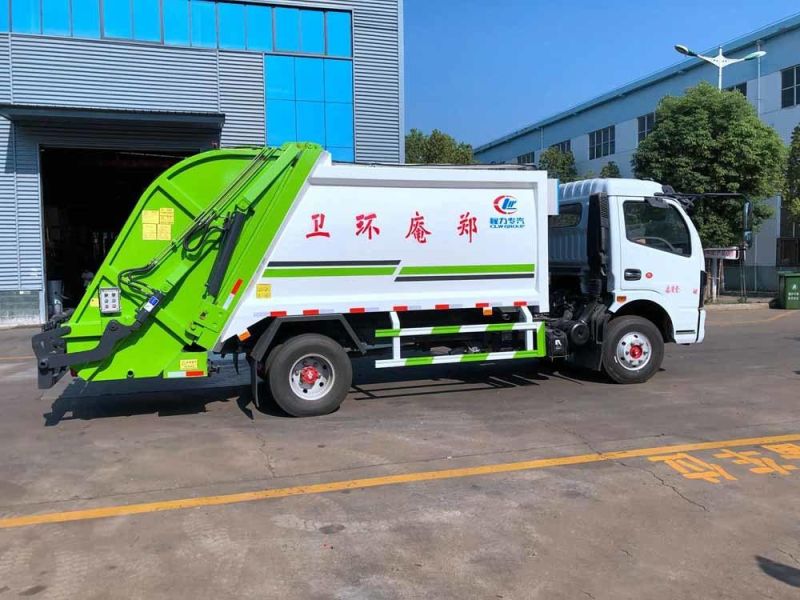

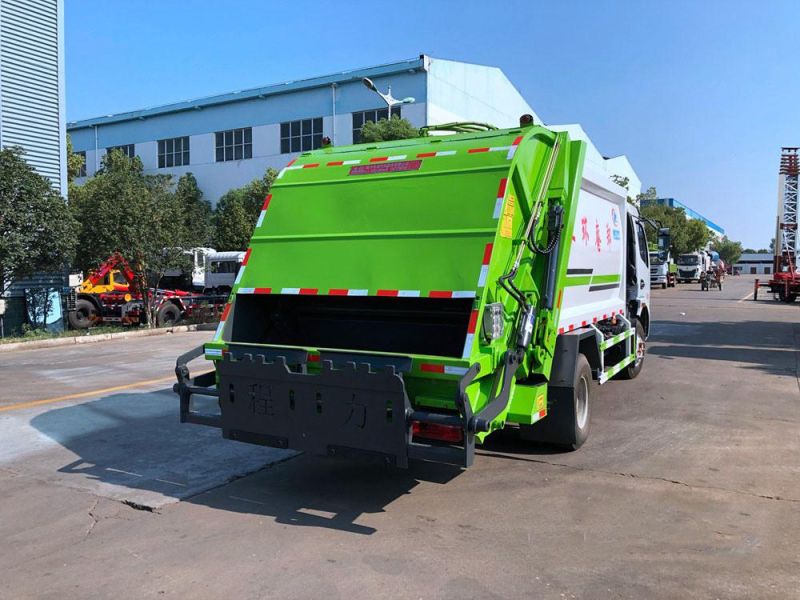

    Reference Photos
    Chengli Kitchen Trash Recycling Garbage Truck for Garbage Transportation Compactor Refuse TrailerChengli Kitchen Trash Recycling Garbage Truck for Garbage Transportation Compactor Refuse Trailer

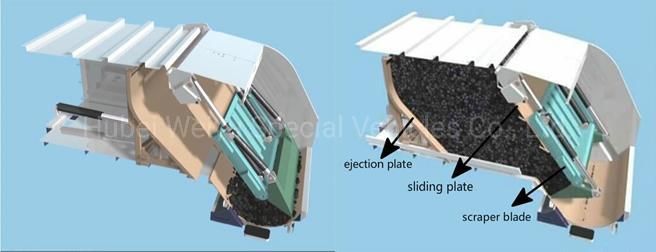

    Main structure:
    Chengli Kitchen Trash Recycling Garbage Truck for Garbage Transportation Compactor Refuse Trailer

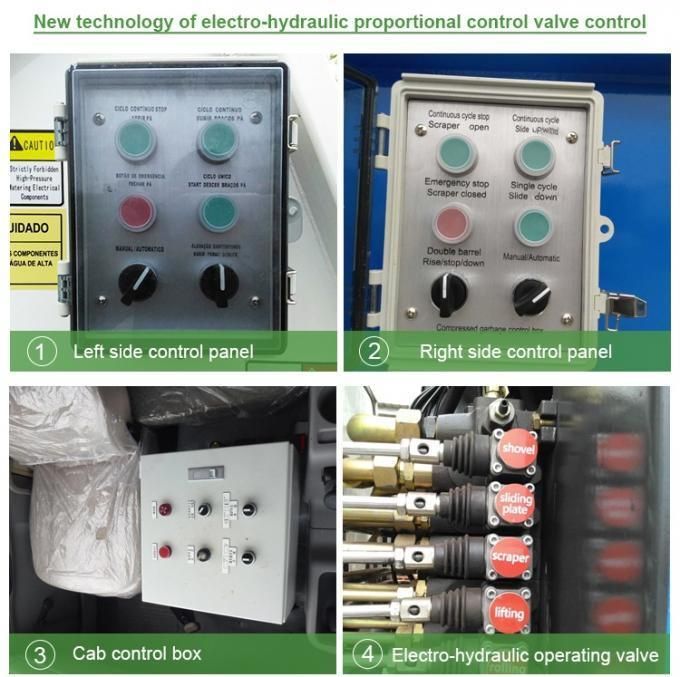

    Main Working System
    Chengli Kitchen Trash Recycling Garbage Truck for Garbage Transportation Compactor Refuse Trailer

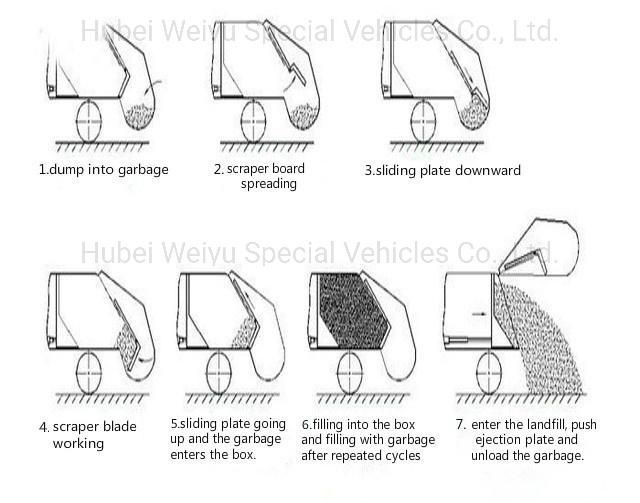

    Garbage Loading and Unloading Process
    Chengli Kitchen Trash Recycling Garbage Truck for Garbage Transportation Compactor Refuse Trailer
    Chengli Kitchen Trash Recycling Garbage Truck for Garbage Transportation Compactor Refuse Trailer

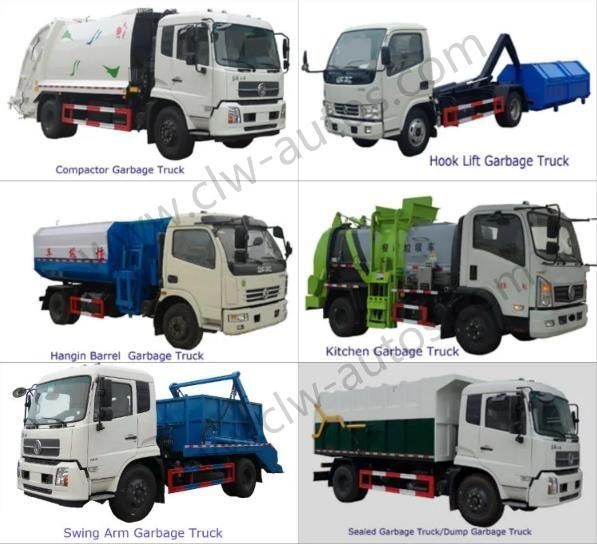

    Various Kinds of Garbage Trucks
    Chengli Kitchen Trash Recycling Garbage Truck for Garbage Transportation Compactor Refuse Trailer
