Specialized Vehicle

Home > Product > Advertising Truck

Sino Truck HOWO LED Advertising Truck,HOWO LED Billboard,Sino Truck HOWO LED Billboard Truck,Sino Truck HOWO Mobile LED Stage Truck,Sino Truck HOWO LED Display

Hubei Dong Runze Special Vehicle Equipment Co., Ltd.
  • After-sales Service：Afrer Sales Service
  • Warranty：12 Months
  • Type：LED Advertising Truck
  • Application：Outdoor Activity
  • Displacement：3.5L
  • Intergrant：Power Supply System

Base Info

  • Model NO.：DRZ-Led
  • Passenger Number：3
  • Fuel Type：Diesel Oil
  • LED Tube Core Type：IV
  • Self-powered：Without Self-powered
  • LED Screen Type：PH10
  • Power Supply Mode：Own Generator-powered
  • Screen Dimension：5900*2025*2995
  • Display Function：Video
  • Steering：LHD ,Rhd
  • Transport Package：Container
  • Specification：3840*1760mm ( 6.8m2)
  • Trademark：DRAU
  • Origin：Cn
  • HS Code：8705
  • Production Capacity：3000

Description

Driving type 4x2 1880 cab ,with two seats, with A/C,with  wind deflector.WLY6T46 , 6 forwards & 1 reverse120 L7.00R16 radial steel tires with one spare
1.Right and left side P8 LED outdoor full colour display screen, size 3840mm*1792mm for each display screen. Can be liftable.
2.Rear LED monochrome screen,size 1280mm *1440 mm
3. Internal and external electrical distribution box
4. Circulating ventilation and cooling systems
5.OUMA Silent diesel generator set,15KW
6.One set industrial computer with control system,sound system
7.Waterproof box 2pcs, amplifier 1pc, Control Panel 1pc.
8.With built-in stage





 Ask for better price

Vehicle

Vehicle model



DFAC led advertising truck

Manufacturer



Dong Runze Special Vehicle

Overall dimensions

mm

7290×2330×3350

Curb weight

kg

7205

Traction system



4×2

Max speed

km/h

90

Chassis

Chassis model



EQ1070TJ9AD3

Manufacturer



DongFeng Automobile Co., Ltd

Number of axles



2

Wheel base

mm

3800

Tire specification



7.50-16

Number of tires



6

F/R track base

mm

1770/1586

Engine

Engine model



CY4102-E3C

Manufacturer



Dongfeng Chaoyang diesel engine

Fuel type



Diesel

Power

kw

88

Engine horse power

hp

120

Displacement

ml

3856

emission standard



Euro 2

Driver's cab

Brand



DongFeng

Model



Flat head, single row

Allowable seats



2

Steering



Left hand drive

Transmission



5-speed with over drive

Operation control system



Electrically hydraulic control

Air-conditioning



Optional

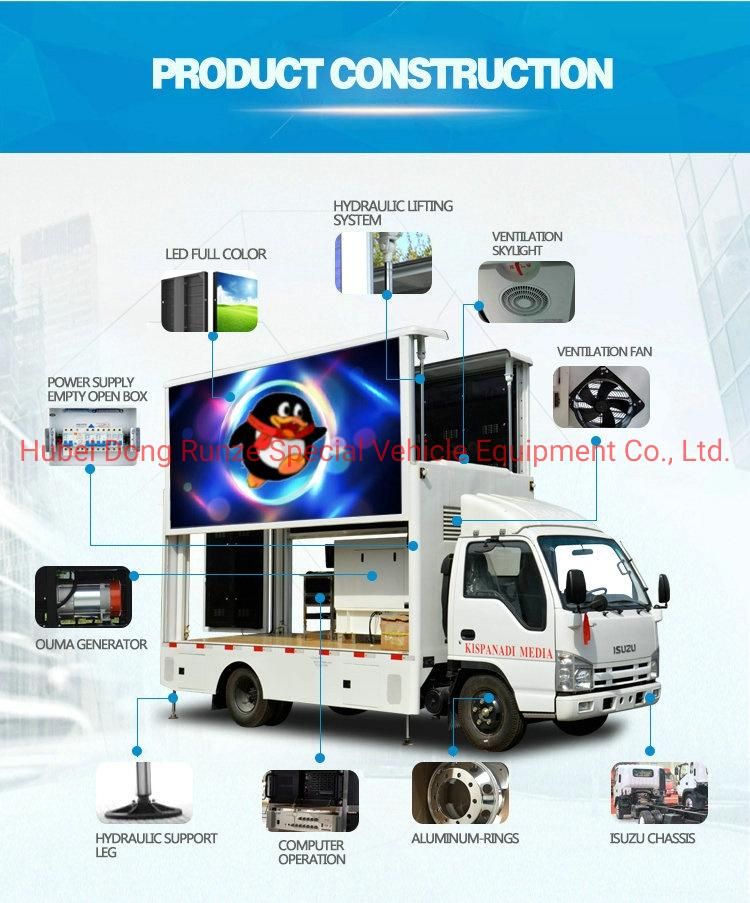

Standard equipment

1> Three sides waterproof P8/P6/P5 full color led screen;

2> Both sides hydraulic lifting system for screen

3> 5cm composite steel box, wooden floor;

4> Inside and outside the electric distribution box;

5> Loop ventilation cooling system;

6> Ouma silent diesel generator;

7> One industrial computer with control system, 4 waterproof speakers, 1 amplifier, 1 console.

8> Hydraulic legs and 9.6m2 mobile hydraulic stage

9> With air conditioning in the van

Color &Painting

According to customer's requirements




Sino Truck HOWO LED Advertising Truck,HOWO LED Billboard,Sino Truck HOWO LED Billboard Truck,Sino Truck HOWO Mobile LED Stage Truck,Sino Truck HOWO LED Display


 LED Billboard Truck Box Boby Customizing


 led screen left and right size

3840*1760mm ( 6.8m2)

rear door led screen size

1280*1440mm (1.84 m2)



 Equipment configuration

1> All 3-sides(right, left, rear side) waterproof P5/P6 full color led screen

2> 5cm composite steel box, wooden floor;

3> Inside and outside the electric distribution box;

4> Loop ventilation cooling system;

5> Ouma silent diesel generator;

6>1 industrial computer with control system, 4 waterproof speakers, 1 amplifier .

Color & painting

According to customer's requirements

Price

P5 full color screen x all 3 sides,  $22000-$27000FOB



P6 full color screen x all 3 sides,  $20000-$25000FOB

Options

(1) Lifting system 1.5m height for side led screen,  add$900/one side
(2).4 hydraulic legs,add $500
(3) 9.6m2 hydraulic stage, add $700
(4) External stitching stage, add $50/m2

other



P8 :3840*1792=6.88

P6 : 3840*1728=6.65

Rear Screen :1280*1440=1.84

5995×2050×3100

3308

5595*2025*2995

3360

5995×2100×3050

3300

5995×2000×2900

3360

5995*2040*2990

3360

5595*2025*2995

3360

5990*1990*2950

3300

5995*2030*3050

3360

5995*2150*2900

3360

8760*2365*3675

4700

P8:5376*2304=12.38

P6:  5376*2304=12.38

Rear Screen 1600*1600=2.56

7290*2330*3350

3800

P8:4864*2048=10

P6:  4800*2112=10.13

Rear Screen 1600*1600=2.56

5250*1900*2750

2800

P8:2560*1536=3.93

P6:2496*1536=3.83

Rear Screen 960*1280=1.64

5100*1710*2640

3070

P8:2304*1536=3.54

P6:2496*1536=3.83

Rear Screen 960*1280=1.64

5000*1960*2590

2900

4650*1700*2400

2765

P8:2304*1408=3.14

P6:2304*1345=3.1

1. Mobile LED advertising trucks is also named as mobile LED screen trucks, LED advertising vehicles, LED mobile advertising vehicles, LED media cars, LED propaganda vehicles, LED stage trucks, digital led screen display trucks, etc.



2. Widely used for outdoor commercial advertising, stage rental, traffic advertising, mobile truck advertising, sports stadium advertising etc.



3. One side waterproof P6/P8/P10 full color led screen. The other side advertising light box with subtitle. The rear side monochrome screen to display text.



4. Optional1-side, 2-sides or 3 sides full-color led screens. Brightness can be adjusted automatically according to different surroundings.

Sino Truck HOWO LED Advertising Truck,HOWO LED Billboard,Sino Truck HOWO LED Billboard Truck,Sino Truck HOWO Mobile LED Stage Truck,Sino Truck HOWO LED Display
