4*2 6m3 Gallons City Vacuum Suction Truck Round Tanker for Waste Sluge Collection with High Vacuum Pump

Hubei Weiyu Special Vehicles Co., Ltd.
  • After-sales Service：Yes
  • Warranty：One Year
  • Certification：ISO9000, CCC, TS16949, EPA, EEC, CE
  • Emission Standard：Euro3, Euro4, Euro5
  • Payload：4tons
  • Transmission Type：Manual

Base Info

  • Model NO.：CLW53YE6
  • Fuel：Diesel
  • Tank Volume：6000-7000L
  • Drive Wheel：4x2
  • Hoesrpower：150-250hp
  • Condition：New
  • Hand Driving：Customized
  • Dust Capacity：6000 Liters
  • Sewage Pump：Vacuum Pump
  • Pump Brand：Chinese Famous Brand or Italy Pump
  • Passangers：2-3
  • Hydraulic Lifting Discharge：Yes
  • Suction Hose：6 Meters
  • Lift Height：30-50m
  • Cleaning Hose：60 Meters
  • Oil and Gas Separator：Yes
  • Operating Video：Supply
  • Logo&Color：Customized
  • Vertical Suction：7m
  • Oil Gas Separator：Yes
  • Transport Package：Naked, Waxed, Bulk Ship, RO-RO
  • Specification：6cbm, 6000liters, 6000gallons
  • Trademark：CLW
  • Origin：Suizhou, China
  • HS Code：8705909090
  • Production Capacity：500 Unit,Month

Description

ItemsDescriptionsSpecifications and TypesGeneralTruck NameSewage suction truckDrive Type4*2Gross Vehicle Weight(kg)8280Curb Weight (kg)3500Curb Weight (kg)4780Overall Dimensions L*W*H(mm) Engine BrandYUNEIFuel TypeDieselPower170HPEmission StandardEuro 2/ 3/ 4/ 5Displacement(ml)2977Engine Type4 cylinders in line,water cooling, turbo-charged diesel engine,inter-coolingChassisChassis BrandHOWOFront/Rear Axle Load(KG)3000/5280Tire No.6Tire SpecificationSucking SystemSewage tank Volume(L)6000Tank shapeRoundTank Material5mm thick carbon steelSuction Depth(m)More than 6 meterSuction hose length8 metersTank Tipping angle(°)More than 45Rear doorOpen and closed by hydraulic cylinders

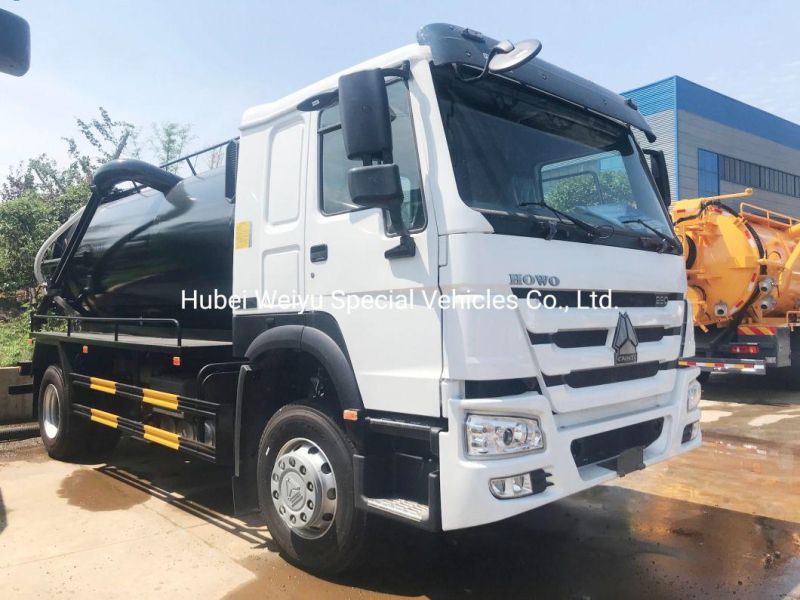

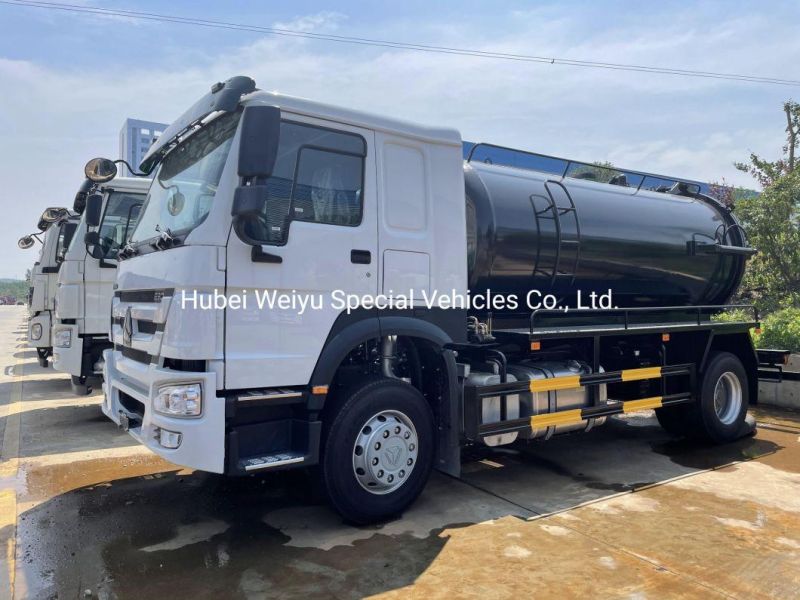

Reference pictures
4*2 6m3 Gallons City Vacuum Suction Truck Round Tanker for Waste Sluge Collection with High Vacuum Pump

4*2 6m3 Gallons City Vacuum Suction Truck Round Tanker for Waste Sluge Collection with High Vacuum Pump

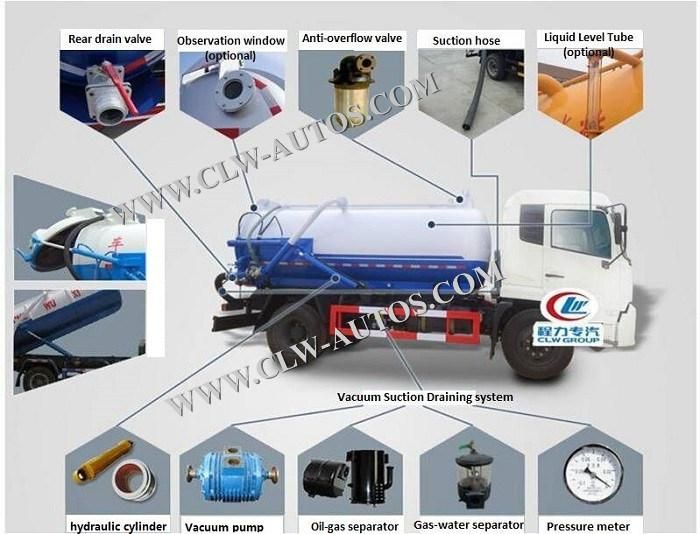

Product Diagram

4*2 6m3 Gallons City Vacuum Suction Truck Round Tanker for Waste Sluge Collection with High Vacuum Pump

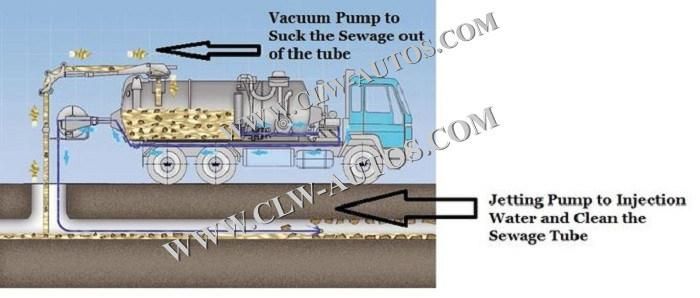

Working Diagram

4*2 6m3 Gallons City Vacuum Suction Truck Round Tanker for Waste Sluge Collection with High Vacuum Pump

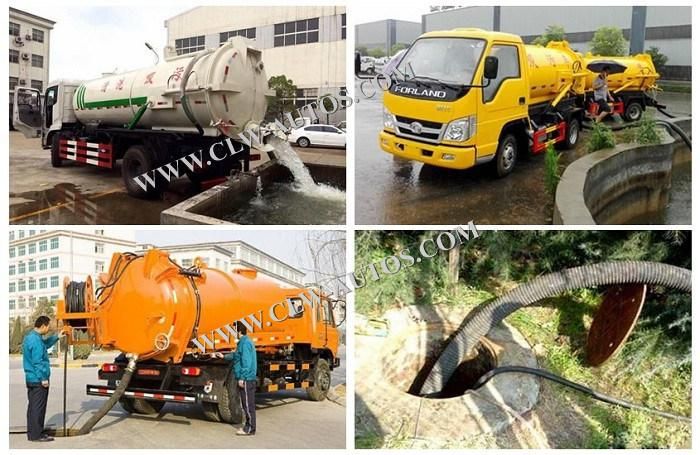

Working Show

4*2 6m3 Gallons City Vacuum Suction Truck Round Tanker for Waste Sluge Collection with High Vacuum Pump

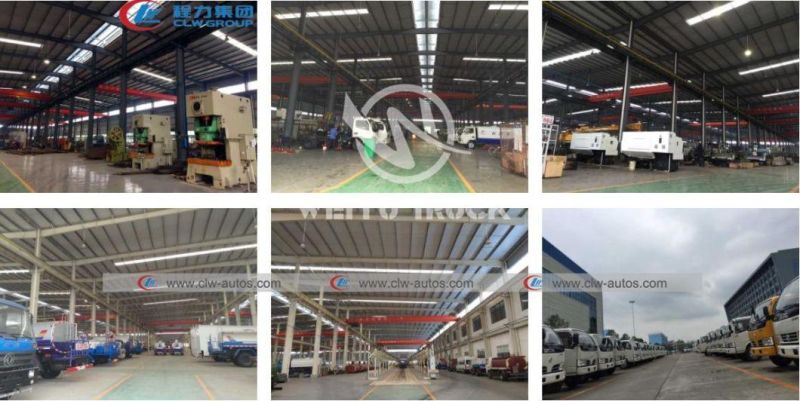

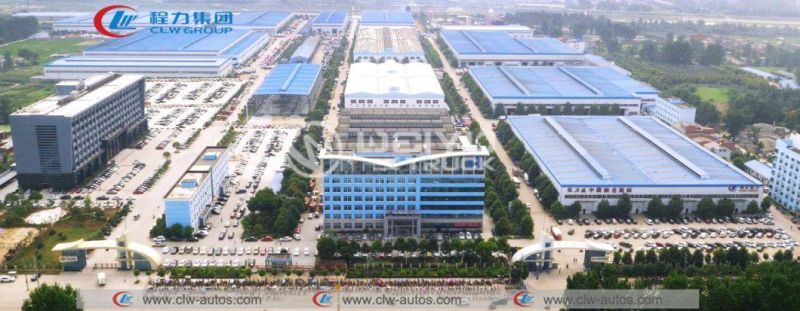

Factory View
4*2 6m3 Gallons City Vacuum Suction Truck Round Tanker for Waste Sluge Collection with High Vacuum Pump4*2 6m3 Gallons City Vacuum Suction Truck Round Tanker for Waste Sluge Collection with High Vacuum Pump



Overseas Exhibition and Local Support

4*2 6m3 Gallons City Vacuum Suction Truck Round Tanker for Waste Sluge Collection with High Vacuum Pump


Customer Visiting


4*2 6m3 Gallons City Vacuum Suction Truck Round Tanker for Waste Sluge Collection with High Vacuum Pump
