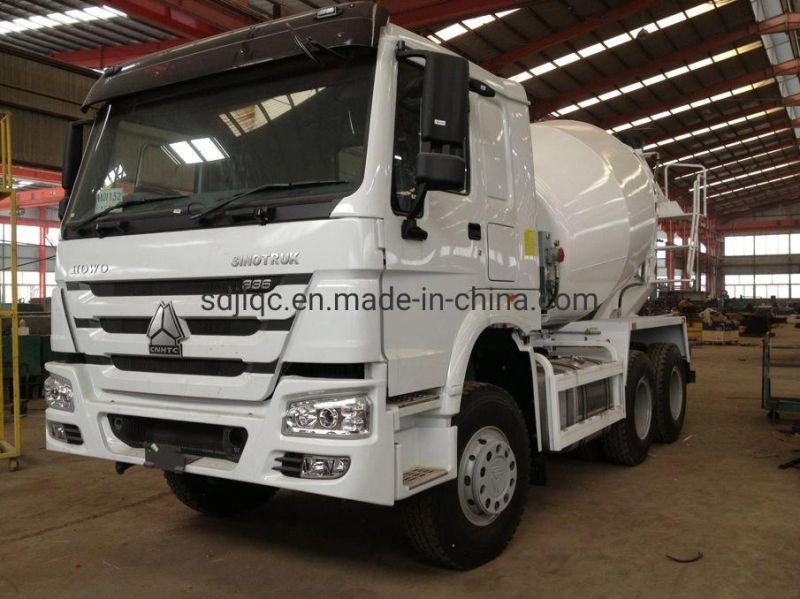

Factory Outlet 6X4 Rhd 8m3 9m3 10m3 Concrete Mixer Truck Price
Jinan Sino Vehicles Sales Co., Ltd.- Certification：ISO9000, CCC
- Transmission Type：Manual
- Emission Standard：Euro2
- Displacement：9
- Payload：20T
- Fuel：Diesel
Base Info
- Model NO.：ZZ1257N3847A
- Drive Mode：6x4
- Maximum Horsepower：300-400hp
- Condition：New
- Wheel Base：3800mm
- Transport Package：in Nude
- Trademark：HOWO
- Origin：Shandong Province
- Production Capacity：1000 Pieces,Year
Description
ZZ1257N3847ADrive type 6x4, 10 Wheels Right Hand Drive, Option: Left Hand Drive Engine SINOTRUK 336hp, Euro II Clutch Single- plate dry coil-spring clutch, hydraulically operating with air assistance Transmission HW19710, 10 forward and 2 reverse Propeller Shaft Double universal joint propeller shaft with gear-shaped coupling flange Front Axle Rigid stud axle with double T-cross section; Loading capacity: 7000kg Rear Axles Pressed axle housing with axle loading capacity 2x16000kg Chassis Frame: U-profile parallel ladder with section of 300×80×8 mm and reinforced subframe, all cold riveted cross members Front suspension: semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension: semi-elliptic leaf springs and bogie spring Fuel tank: 400 L capacity, with locking fuel cap Spare wheel carrier: with one spare tire Steering ZF8118, hydraulic steering with power assistance, Ratio: 26.2 Brakes Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake Option: ABS Wheels & Tyres Rims: 8.5-20,10 hole-steel Tires: 12.00-20 Option: 11.00-20 11.00R20 12.00R20 Driver's Cab Long cab, all steel forward control, 70o hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, single berth with 4-point support full floating suspension + shock absorbers with transverse stabilizer, safety belt, air conditioner, adjustable steering wheel, adjustable roof flap. Electrics Operating voltage:24V, negative grounded Starter: 24V, 7.5Kw Alternator: 28V, 1500W Batteries: 2×12V, 165Ah Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp Option: 180Ah Overall Dimensions 10350×2496×3048 (mm) Cargo Body Dimension 5400x2300x600 (mm) Loading capacity 25000kg
Company Information:
Shandong heavy truck and machinery Co., Ltd was established in 2017 in Jinan, China. We are professional supplier for Chinese brand heavy truck and construction machinery as well as spare parts. Sinotruk, Shacman, Beiben, CAMC, SEM, Foton, Weichai, liugong, Zhongtong, Yutong etc all fall in the scope of our business. Meanwhile, we have our own brand wheel loader and backhoe(with CE certificafte) etc, made by our own factory HOMONS MACHINERY LIMITED.
With good communication and services, our company has exported our products to Nigeria, Angola, Ghana, Libya, Cameroon, Guinea, Congo, Mali, Tanzania, Ethiopia, Algeria, Sudan, Egypt and other African countries; Peru, Chile, Venezuela, Colombia, Brazil and Argentina in South America; Ukraine, Russia, Tajikistan, Kazakhstan, Thailand, Philippines, Malaysia, Indonesia, Pakistan, Brunei and Bangladesh in Asia and other countries and regions.
Our company will adhere to the service concept of quality first, service first, and customer first, will provide our customers with the highest quality products and services. At the same time, customers are welcome to call, write to inquire about prices, and visit.
Packing and delivering:
Customer Visit:
Our Service:

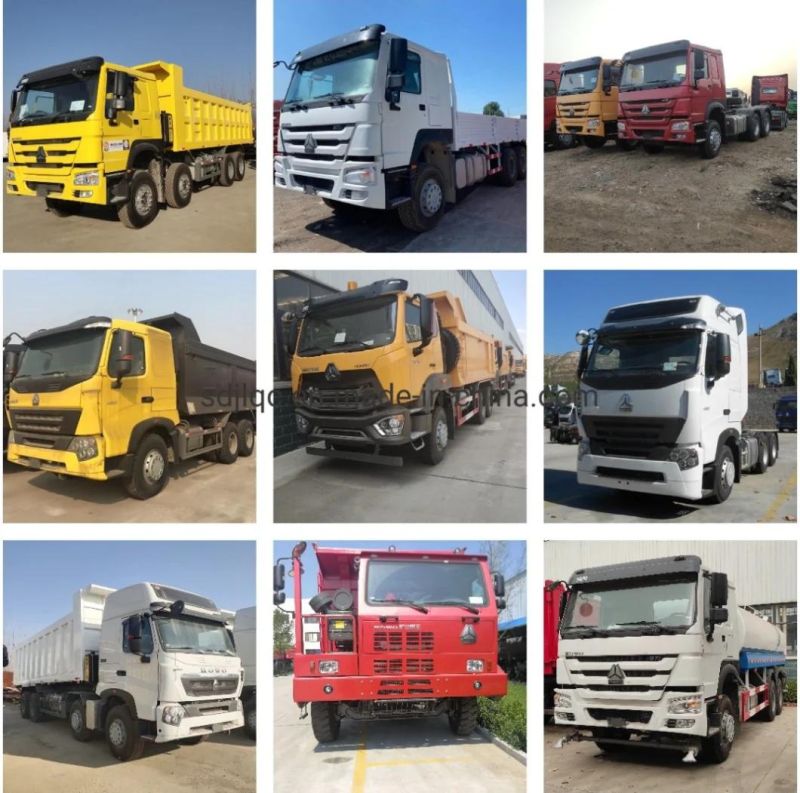

Other Products:

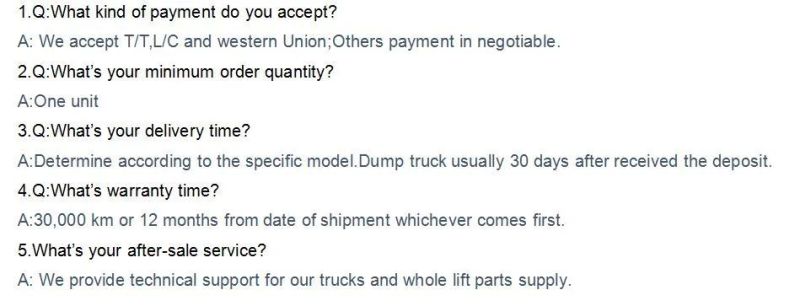

RFQ:
Company Information:Shandong heavy truck and machinery Co., Ltd was established in 2017 in Jinan, China. We are professional supplier for Chinese brand heavy truck and construction machinery as well as spare parts. Sinotruk, Shacman, Beiben, CAMC, SEM, Foton, Weichai, liugong, Zhongtong, Yutong etc all fall in the scope of our business. Meanwhile, we have our own brand wheel loader and backhoe(with CE certificafte) etc, made by our own factory HOMONS MACHINERY LIMITED.
With good communication and services, our company has exported our products to Nigeria, Angola, Ghana, Libya, Cameroon, Guinea, Congo, Mali, Tanzania, Ethiopia, Algeria, Sudan, Egypt and other African countries; Peru, Chile, Venezuela, Colombia, Brazil and Argentina in South America; Ukraine, Russia, Tajikistan, Kazakhstan, Thailand, Philippines, Malaysia, Indonesia, Pakistan, Brunei and Bangladesh in Asia and other countries and regions.
Our company will adhere to the service concept of quality first, service first, and customer first, will provide our customers with the highest quality products and services. At the same time, customers are welcome to call, write to inquire about prices, and visit.
Packing and delivering:
Customer Visit:Our Service:Other Products:RFQ:
