• Model NO.：CLW
• Fuel：Diesel
• Transmission Type：Manual
• Drive Wheel：4x2
• Condition：New
• Truck：High Altitude Operation Truck
• Working Platform：360°turning(Left or Right)
• Working Platform Allowable Person：2
• Clutch：Reinforced Diaphragm Clutch, Diameter 430m
• Driving Type：4X2, 4X4, 6X2, 6X4, 8X4
• Axles Number：2
• Steering Wheel：LHD or Rhd
• Color：White, Green, Red, Optional
• Safety Accessory：Available
• Transport Package：Naked, Waxing and So on
• Specification：ECE ISO GCC CCC ASME ASTM
• Trademark：CLW
• Origin：Hubei, China
• HS Code：8701909000
• Production Capacity：800sets,Month

rive Model4X2Vehicle Main            Dimensions(L x W x H)mm6422*1990*2995Wheel base  (mm)3360Wheel track  (front/rear) (mm)1105/1812Approach/Departure angle(°)19/15Weight in KGSCurb Weight5125GVW.5450Max. driving speed(km/h)95EngineBrandJACModelHFC4DA1-2B2Type4-stroke direct injection ,  6-cylinder in-line with water cooling, turbo-charging
and inter-coolingHorse Power(HP)1220Displacement2.771LMax. Output Power88KWEmission standardEuro IIIGearbox5 forwards& 1 reverseClutchReinforced diaphragm clutch, diameter 430mmTire8.25R16 All steel radial tire, 1pc including 1 spare tireBrakesService brake: dual circuit compressed air brake
Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brakeSteering Gearpower steering, hydraulic steering with power assistanceEquipmentWorking Platform360°turning(left or right), H-shape legs 360°Dimensioin1100X570X1000mmExtendable boom sectioin2002/3/4Max Lifting Weight990KG 1000KG,1500KG,2000KGMax. Working Radius10m,8m,12m,14m,13m,15m,16m,17m,18mBoom TypeStraight/FoldableLifting Max. Height8m,10m,12m,14m,16m,18m,20m

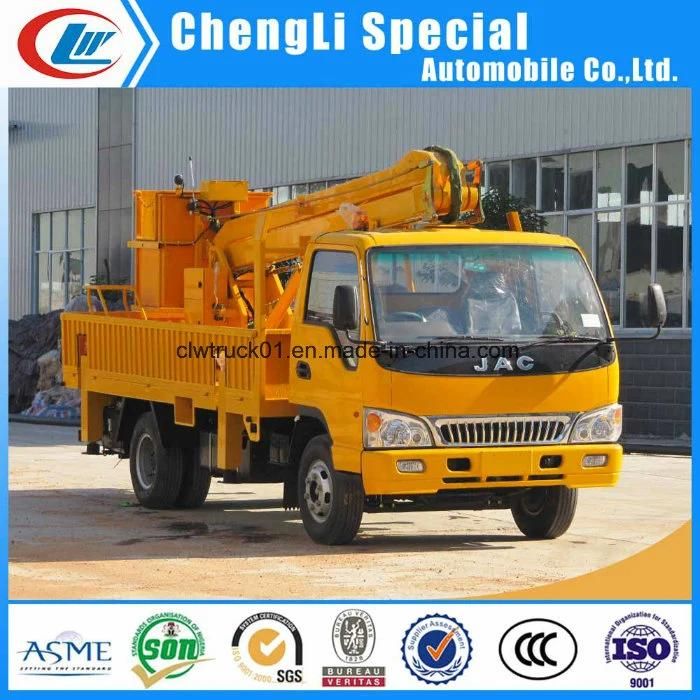

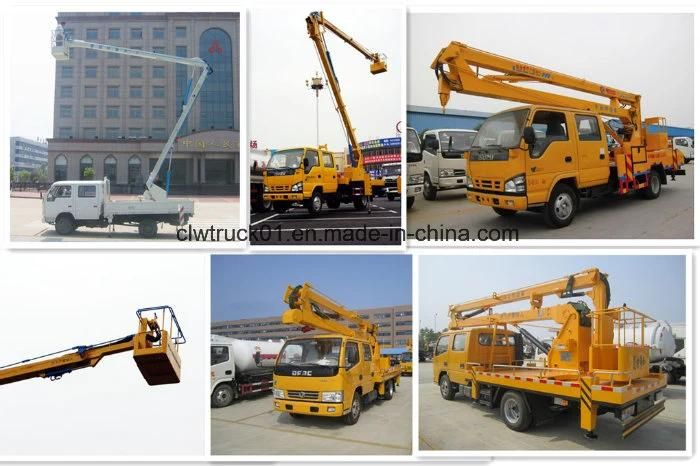

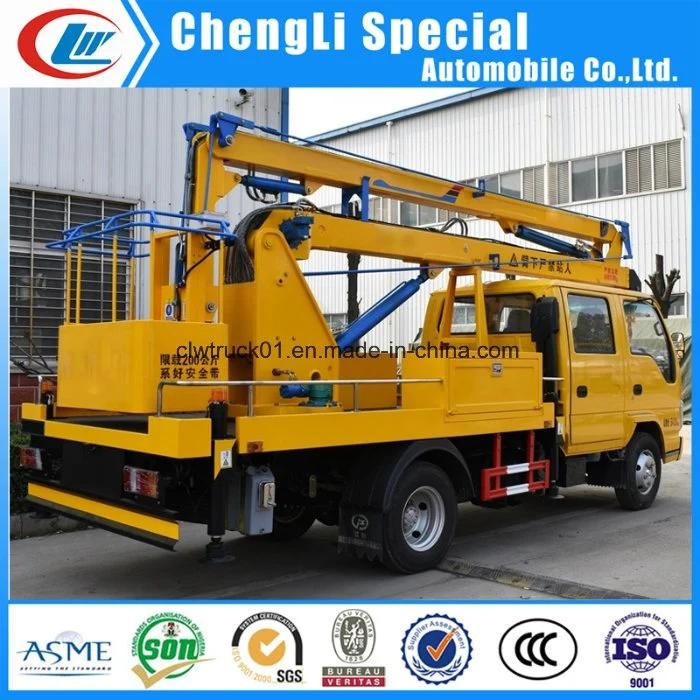

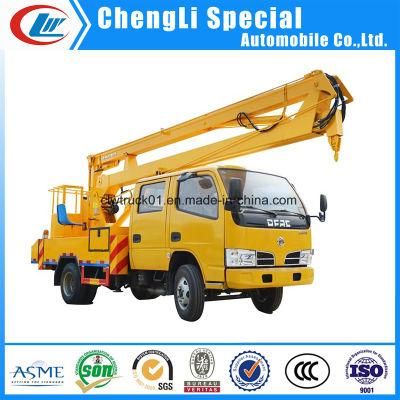

Product photo for reference:







Company Information

ChengLi Special Automobile Co., LTD is a manufacturing group located in SuiZhou City, HuBei Province, China.

1. Our factory is a professional truck & tanker manufacturer with more than 12 years experience in China.

2. There are totally 8000 workers, include 100 senior welder and 15 senior engineers.

3. More than 300 type of products supply.

4. Our sales volume of 2015 reach US$300 million.

Packing and Shipping



Our Services

1. One year quality warranty for key parts such as axles, engine, transmission;

2. All spare parts would be OEM and supplied at cost prices;
3. Overseas service center to ensure efficiency after-sales service;
4. Regular after-sales visit to collect information about the vehicle's working status and feedback from
customers.

Other Products


1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )



Customised Truck & Trailer Solutions to Meet Your Requirements
