Specialized Vehicle

Home > Product > Sewage & Fecal Suction Truck

Dongfeng 5mm Thick Carbon Steel Tanker Vacuum Sewage Suction Truck Fecal Suction Vehicle Septic Tank Truck for City Cleaning

Hubei Weiyu Special Vehicles Co., Ltd.
  • After-sales Service：Yes
  • Warranty：One Year
  • Certification：ISO9000, CCC, TS16949, EPA, EEC, CE
  • Emission Standard：Euro 3
  • Payload：10tons
  • Transmission Type：Manual

Base Info

  • Model NO.：CLW4586TSY
  • Fuel：Diesel
  • Tank Volume：10000lites
  • Drive Wheel：4x2
  • Hoesrpower：199 HP
  • Condition：New
  • Material：Carbon Steel
  • Hand Driving Type：Optional
  • Sewage Capacity：10m3, 10cbm
  • Sewage Pump：Vacuum Pump
  • Pressure Gauge/Glass Window：Yes
  • Passangers：2-3
  • Water Gas Separator：Yes
  • Vertical Suction：7m
  • Lift Height：30-50m
  • Hand Washing Device：Optional
  • Operating Video：Supply
  • Color & Logo：Customized
  • Transport Package：Naked, Waxed, Bulk Ship, RO-RO
  • Specification：7195*2380*2540 mm
  • Trademark：CLW
  • Origin：Suizhou, China
  • HS Code：8705909090
  • Production Capacity：500 Unit,Month

Description

ItemsDescriptionsSpecifications and TypesGeneralTruck NameSewage suction truckDrive Type4*2Gross Vehicle Weight(kg)16200Curb Weight (kg)4560Curb Weight (kg)11640Overall Dimensions L*W*H(mm) Engine BrandYUCHAIFuel TypeDieselPower199 HPEmission StandardEuro 2/ 3/ 4/ 5Displacement(ml)4156Engine Type6 cylinders in line,water cooling, turbo-charged diesel engine,inter-coolingChassisChassis BrandDongfengFront/Rear Axle Load(KG)5600/10600Tire No.6+1 spareTire SpecificationSucking SystemSewage tank Volume(L)10,000Tank shapeRoundTank Material5mm thick carbon steelSuction Depth(m)More than 6 meterTank Tipping angle(°)More than 45Rear doorOpen and closed by hydraulic cylinders

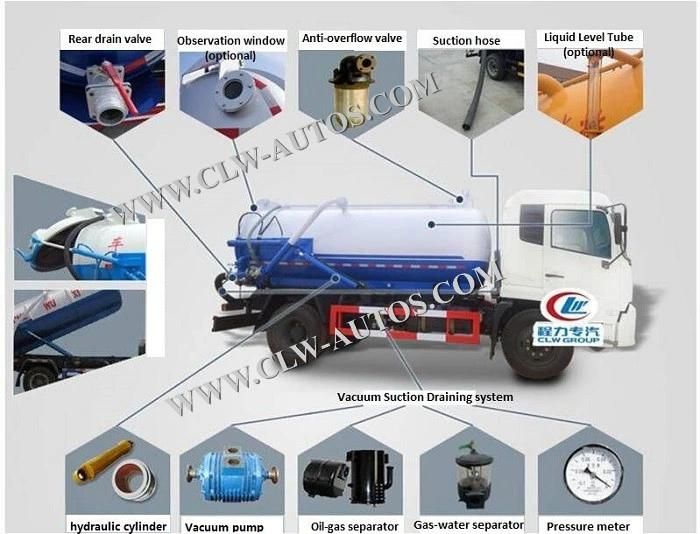

Product Diagram
Dongfeng 5mm Thick Carbon Steel Tanker Vacuum Sewage Suction Truck Fecal Suction Vehicle Septic Tank Truck for City Cleaning

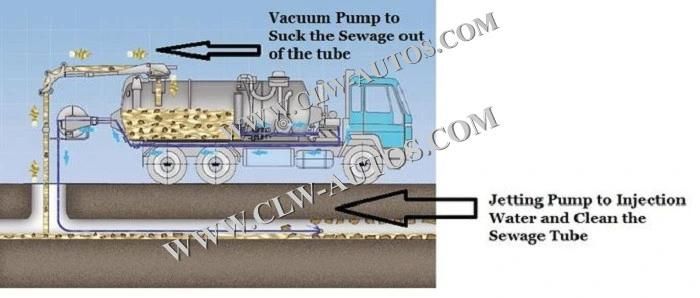

Working Diagram

Dongfeng 5mm Thick Carbon Steel Tanker Vacuum Sewage Suction Truck Fecal Suction Vehicle Septic Tank Truck for City Cleaning
Dongfeng 5mm Thick Carbon Steel Tanker Vacuum Sewage Suction Truck Fecal Suction Vehicle Septic Tank Truck for City Cleaning
Dongfeng 5mm Thick Carbon Steel Tanker Vacuum Sewage Suction Truck Fecal Suction Vehicle Septic Tank Truck for City Cleaning

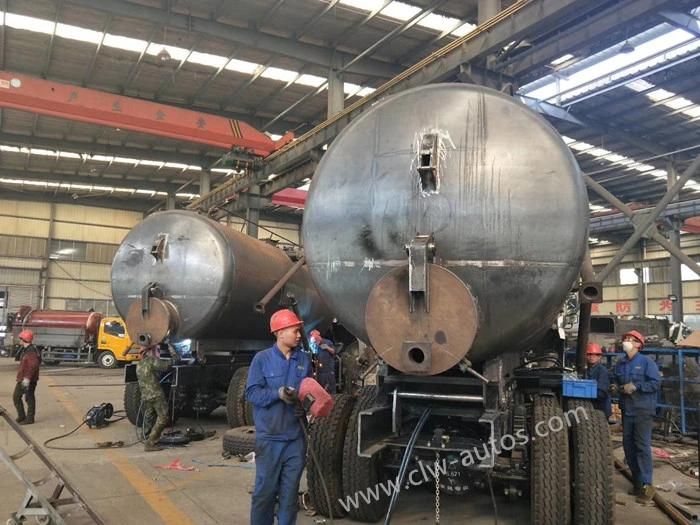

Working Photos

Dongfeng 5mm Thick Carbon Steel Tanker Vacuum Sewage Suction Truck Fecal Suction Vehicle Septic Tank Truck for City Cleaning

Other Special Truck Series

Dongfeng 5mm Thick Carbon Steel Tanker Vacuum Sewage Suction Truck Fecal Suction Vehicle Septic Tank Truck for City Cleaning

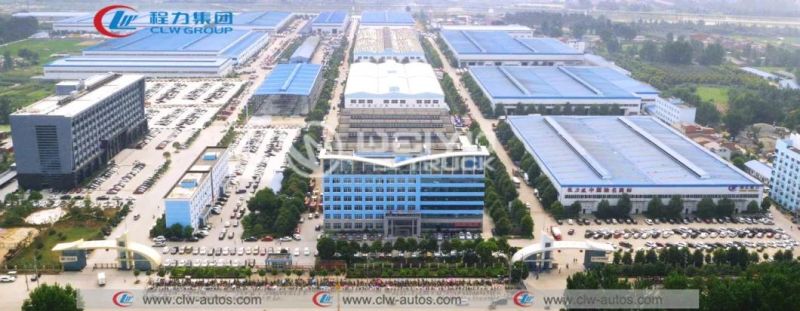

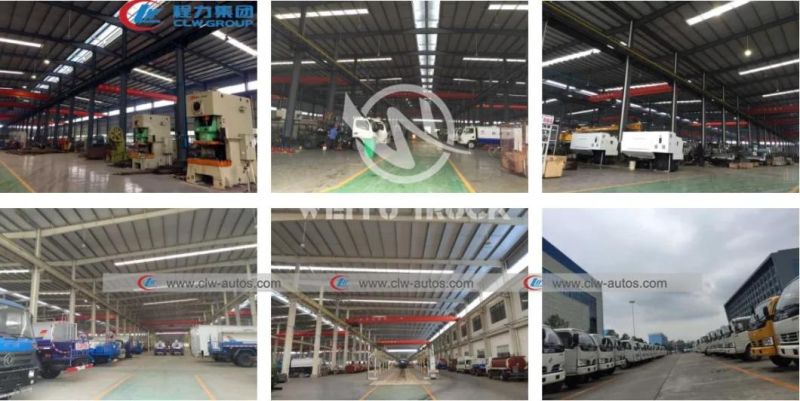

Factory View
Dongfeng 5mm Thick Carbon Steel Tanker Vacuum Sewage Suction Truck Fecal Suction Vehicle Septic Tank Truck for City Cleaning
Dongfeng 5mm Thick Carbon Steel Tanker Vacuum Sewage Suction Truck Fecal Suction Vehicle Septic Tank Truck for City Cleaning


Overseas Exhibition and Local Support
Dongfeng 5mm Thick Carbon Steel Tanker Vacuum Sewage Suction Truck Fecal Suction Vehicle Septic Tank Truck for City Cleaning
