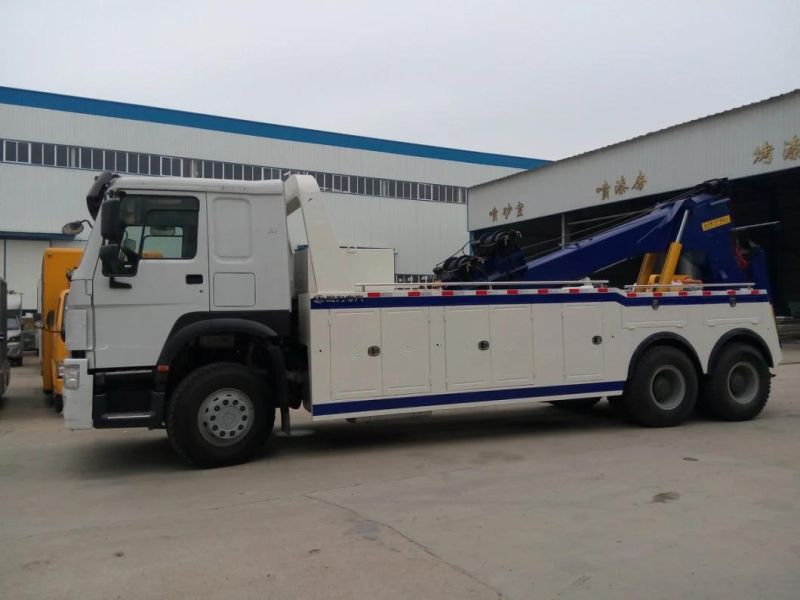

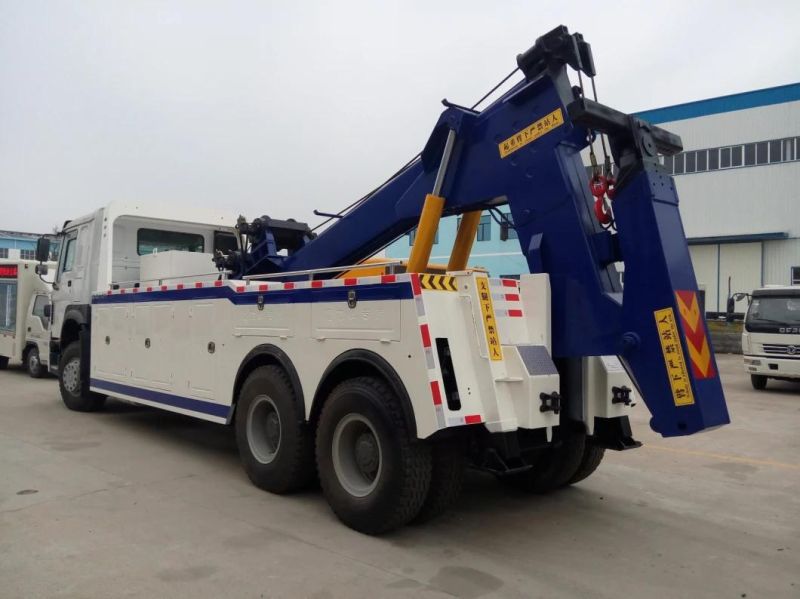

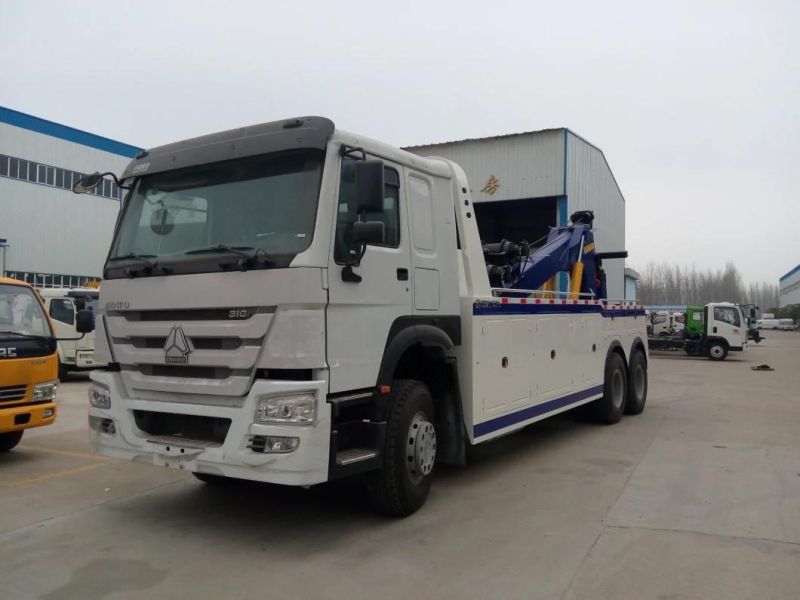

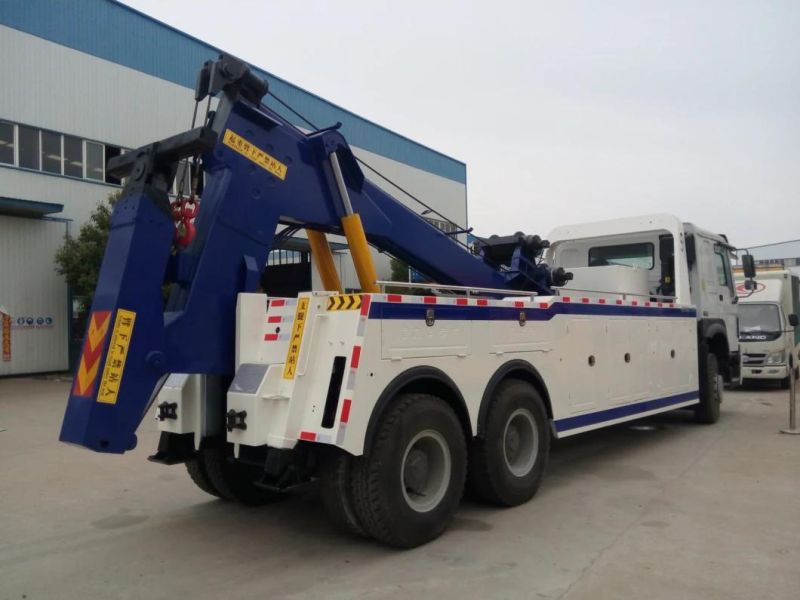

HOWO 6X4 20ton Tow Wrecker Truck Road Rescue Vehicle

Acntruck Automobile Sales (Shanghai) Co., Ltd.
  • Certification：ISO9000, CE
  • Emission Standard：Euro 2
  • Transmission Type：Manual
  • Towing Tonnage：10T
  • Fuel：Diesel
  • Bearing Capacity：Medium

Base Info

  • Model NO.：BJ1049V
  • Brand：SINOTRUK
  • Condition：New
  • Max. Lifting Capacity：20000kg
  • Max Speed：100km,H
  • Rated Power：336HP
  • Wheelbase：5825+1350mm
  • Towing Capacity：25ton
  • Boom Lifting Height：9600mm
  • Winch Rope：Length 45m; Diameter 18mm
  • Transport Package：Nude Packing or by Container
  • Specification：10095x2500x3500mm
  • Trademark：ACNTRUCK
  • Origin：Shanghai, China
  • HS Code：8701909000
  • Production Capacity：100units, Month

Description

ProductZZ1257Color of truckWhite ,Red,or as customer's requirementParametersOverall dimension L/W/H(mm)10095×2500×3500Curb Mass(kg)21,000Fuel TypeDiesel Max Speed(km/h)100EngineTypeWD615.69;6-cylinder in Line; Water Cooling Direct Injection diesel engine; Turbo charged & inter-cooler;Emission standardEuro 2Displacement(ml)/Power(HP)9726/336ManufacturerChina National Heavy Duty Truck Group Co.,LtdChassisDrive type6×4Wheelbase(mm)5825+1350TransmissionHW19710, 10 Forwards & 1 ReverseSteering wheel Has power steeringCabHOWO cab,single row with a bed,Right hand driveClutch420mm, Single Dry Plate,Suspension springNumber of spring (front/rear):10/12Tire Type10+1 spare tires, 295/80R22.5Air-conditionYesLifting organMax Lifting Capacity 20,000 KgBoom Lifting Height 9,600 mmWinchWinch Rated Pulling Capacity2 Winches; 10Ton each;Winch RopeLength 45m; Diameter 18mmHoisting organTowing Capacity 25TonMax under-hoist useful length3100mmUnderlift Elevation angle in working condition-7°~16°Underlift Elevation angle-7°~92°
