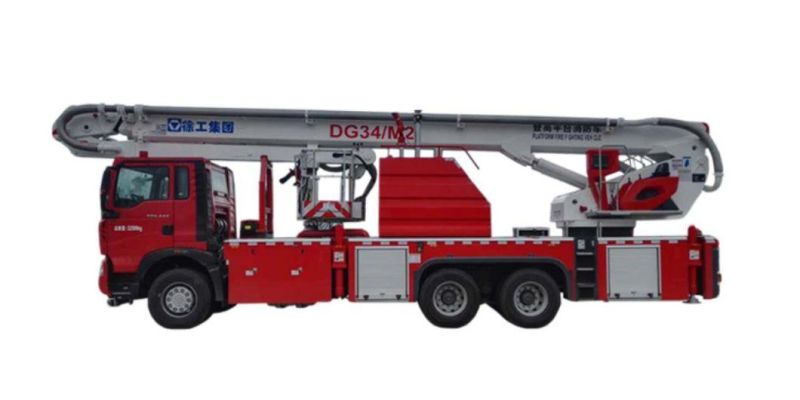

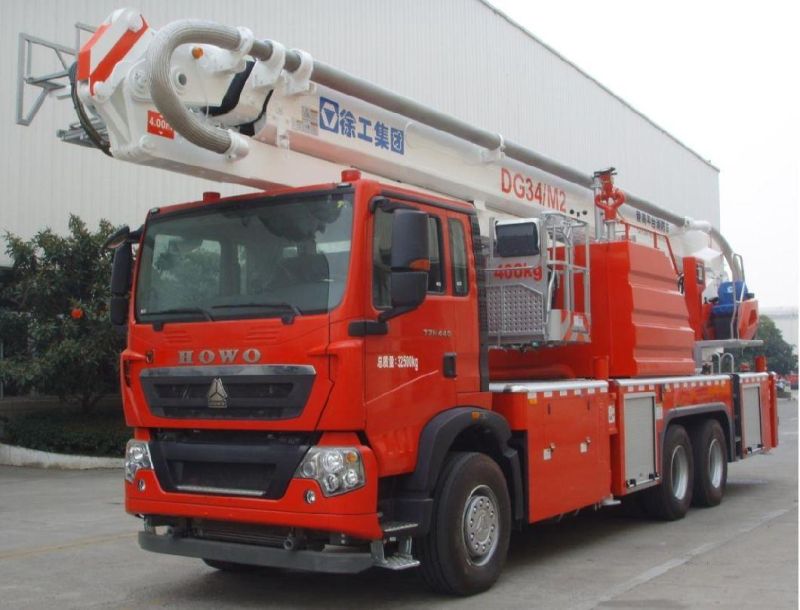

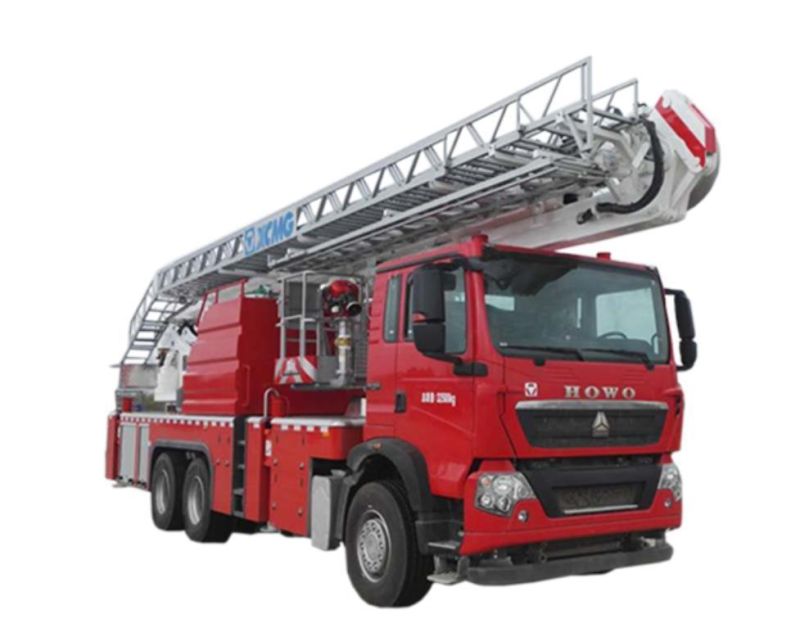

• Model NO.：DG34M2
• Fuel：Gasoline
• Drive Wheel：6×4
• Horsepower：＞450hp
• Condition：New
• Dimension：12360mm*4000mm*2500mm
• Total Vehicle Weight：32250kg
• Max.Travel Speed：90km,H
• Rated Working Height：34m
• Rated Load on Platform：400kg
• Transport Package：Comply with Export Packaging Requirements
• Specification：ISO
• Trademark：XCMG
• Origin：Xuzhou, Jiangsu, China
• HS Code：87059091
• Production Capacity：10000,Year

CategoryItemUnitParameterDimensionOverall lengthmm12360Overall heightmm4000Overall widthmm2500WeightTotal vehicle weightKg32250Total vehicle curb weightKg26500TravelMax.travel speedKm/h≥90Max.net powerkw320Power density--10.2Main performanceRated working heightm34Rated load on platformKg400Max.working radiusm21Outrigger span(longitudinal*lateral)mm6200*5800Working speedBoom deploying timeS≤135Outrigger extending timeS≤30Fire-fighting performanceWater monitor rated flowL/S≥50/≥40Water monitor rated pressureMpa≤0.8/≤1.0Water monitor rated reachm≥70/≥65Foam monitor rated flowL/S--Foam monitor rated pressureMpa--Foam monitor rated reachm--Below /above horizontal°-45~+90/-35~+65Leftwards/rightwards°±90/360Fire pump rated flowL/S≥50Fire pump rated pressureMpa≥1.5
