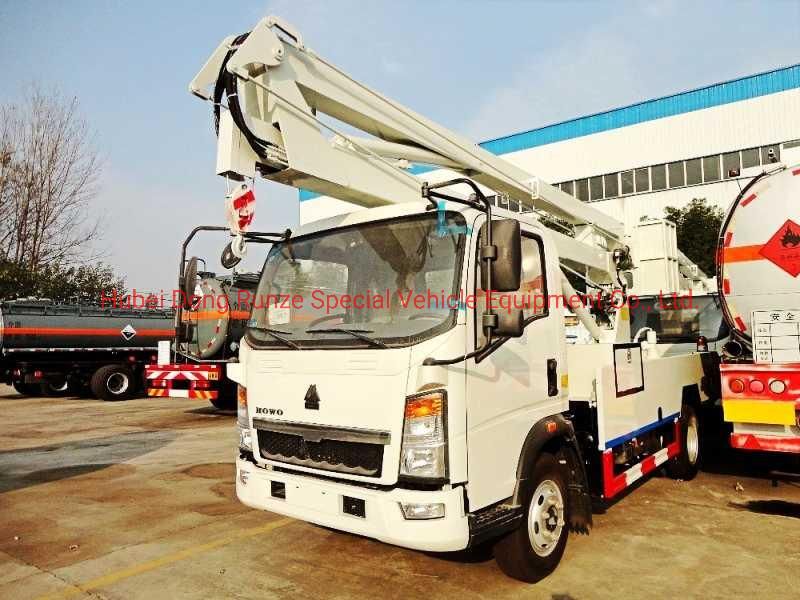

12-28m Rhd HOWO Light Diesel Aerial Bucket Truck

Hubei Dong Runze Special Vehicle Equipment Co., Ltd.
  • After-sales Service：24hours
  • Warranty：24months
  • Type：H
  • Certification：ISO9000, CCC
  • Emission Standard：Euro 5 - 6
  • Hoesrpower：150-250hp

Base Info

  • Model NO.：DRZ-22
  • Payload：20T
  • Fuel：Diesel
  • Transmission Type：Manual
  • Drive Wheel：4x2
  • Condition：New
  • Tire：10.00r-20;11.00r20
  • Cabin：Sino Truck HOWO
  • Fuel Tank(L)：400L
  • Drive：LHD,Rhd
  • Work Lift Height：8-30m
  • Boom Crane Loading Capacity：1000kg
  • Wheelbase (mm)：4500mm
  • Engine：205HP
  • Transport Package：Nil
  • Specification：8m, 12m, 16m, 18m, 20m, 24m, 22m, 26m, 30m
  • Trademark：SINO Truck Howo
  • Origin：China
  • HS Code：8705909990
  • Production Capacity：10000

Description

Driving type 4x2     LHD2080 cab, with A/C ,with two seats, with right hand driven.DC6J65TC,  6 forwards & 1 reversePush type diaphragm spring clutch, 395mmRight hand driven, power steering9.00R20 radial steel tire with one spare




1. Max working height: 22 m
2. Max. working range: 9.1 m
3. Rated load of elevating platform: 200 kg
4. Size of elevating platform (L×W×H)  1200×600×1000 (mm)
5. Max. hoisting capacity:   1000 kg
6. Slewing angle:  360° (full circle slewing)
7. Max. hoisting height: 8 m
8.










Products Technical Specification of Products Technical Specification of Aerial Working Trucks
SUZU FTR street lights maintenance trucks. Type22m arieal working truckBrandSUZU 4*2CabWith A/C, on bedVehicle DescriptionOverall dimensions(mm)10100*2500*3900Curb weight(vehicle) (kg)14300Max speed (Km/h)110EngineMode4HK1-TC50Type151(KW)Max. torque650(N.m)Displacement(ML)5193Company of engineSUZU MotorEmission levelEuro 5Chassis DescriptionWheel base4700Front axleElliot I-beam type 6.3TRear axleDriving axle, 13TNumber of leaf spring of suspension15/17Front overhang / rear overhang1335/2890Front tread / rear tread1960/1855Approach angle /Departure angle15/17Gear box6-speed with over driveBrake systemAir brakingOperation control systemPower SteeringElectric system24VTyres10.00R20Aerial wrking parameterMax. working height22mMax. working radius7.5mLoading weight of working hook200kgSwing angle360degreeSwing speed0-2r/minSupporting legs4sets hydraulic supporting legs



Pictures of SUZU Aerial Platform Trucks for Street Lights Maintenance:

23m telescopic boom truckOutside dimensionL*W*Hmm8720*2350*2950weightPassengersperson4Total weightkg10800Main parameterLoading capacity of working platformkg220Max. Working heightm23Working radius of Max. Working heightm5.05Max. Working Radiusm12.6Working height of Max. Working radiusm5.6Supporting landinghorizontalmm4200verticalmm4200Main Equipment of FTR ISUU Telescopic Boom Aerial Working Truck 23m Working HeightWorking platform and fenceAntiskid walking board and stainless steel fencePTO systemPneumatic operationWorking platform size1100x700x1150Boom styleFive telescopic boom, four section booms synchronous expansionBoom lifting styleBoom lifting up and downRotation device360 degree Continuous rotationSupporting landingH, adjusted separatelyOperationRemote control on the working platform or on the ground, electric operation. Hydraulic operation turntable.Control systemLoad sensitive proportional control system, stepless speed regulation.Leveling systemHydraulic automatic leveling.

 FTR ISUZ Telescopic Boom Aerial Working Truck 23m Working Height

Acutal pictures of FTR ISUZ Telescopic Boom Aerial Working Truck 22 - 23m Working Height

12-28m Rhd HOWO Light Diesel Aerial Bucket Truck




Product nameAerial bucket truckOptionsProducer DRZ BrandHubei Dong Runze Special Vehicle Equipment Co., Ltd Max Working Height20 meters Overall dimention7400x2610x3850(mm) Boom TypeTelescopic boom Section of Boom5-section12~32mWorking Raduim14.7 meters Platform bucket loadmax 200kg, 1000x680x1200mm Chassis BrandI.SU.ZU FTRDongfeng, Forland,Sinotruk,etcDrive cabSingle cab, LHD, with a sleeper Engine190hp Euro 4 diesel engine BrakeAir brake SteeringPower steering TransmissionMT, 6 forward gears and 1 rear gear OthersPower window, central lock, A/C Wheelbase3900mm Tire9.00-20 radial tire, 6+1 Max speed90km/h Main Safety SystemEmergency pumpIncluded, When the engine and main pump fail, workers can be sent back to the groundEngine on/off on basketIncludedAutomatic interlock deviceBasket and gound control lock, the two can't operation at same timeLevel detection functionReal-time detection of whether the vehicle is horizontalEmergency stop device

For emergency stop operation

Night safety warning deviceThere are engineering strobes and lights on the vehicleVehicle level status testerCan detect the horizontal and vertical tilt of the vehicle

ISUZ mounted Crane truck ( 3.2Ton boom crane SQ3SK2Q)

General

Vehicle Brand

 DONG RUN ZE TRUCKS

Chassis Brand

I.S.U.Z.U

Overall Dimension

6500 * 2100 * 3100 mm

GVW / Kerb Weight

7,300kg / 4,000kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

I.S.U.Z.U

Power

130 HP (88 KW)  4KH1

Displacement

2999 ml

Emission Standard

Euro 4 or 5

Chassis

Drive Type

4X2, (Left hand drive ONLY)

Transmission

Manual MSB 5 speed levers with 1 reverse

Wheelbase/No. of axle

3360 mm / 2

Tire Specification

7.00-16

Tire Number

6 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Cargo Box Dimension

4000*1900*500 mm

Crane Type

Telescpoic boom crane

Max Lifting Capacity

3200 kg

Slewing Angle

360° All rotation

Crane Weight

1229kg

Installation Space

850 mm

Control panel

English or Your language

All standard accessories: Basic tool kit, English manual...

Optional

** Knuckle boom crane.

** Hydraulic tipper box.

** Box thickness according to requirement.

** Box height could be nominated
** Remote Control Box optional





ItemsParameterTruck Model5070JSQ2Crane Parameter  Max Lifting Capacity3200 kgMax Lifting Moment6.8 T.MRecommend Power14 kwMax Oil Flow of Hydraulic System25 L/minMax Pressure of Hydraulic System20 MpaOil Tank Weight30 LCrane Weight1229 kgInstallation Space850 mmRotation Angle360° All Rotation  Cargo Body  ThicknessSide2mmFloor3mm

12-28m Rhd HOWO Light Diesel Aerial Bucket Truck

Similar Key Words: hydraulic boomlifter, overhead working truck, truck mounted aerial platform, aerial beam lifter, man lift truck, articulated basket platform, skylift, insulated aerial cage truck

tictrucks.en.made-in-china.com

PACKING & DELIVERY

Aerial platform truck 16m water tank and water pump ,Truck Mounted Aerial Work Platform water tank,Work Platform water tank truck,aerial bucket truck  water tank,bucket truck with water tank ,Truck Mounted water tank Aerial Work Platform





Truck mounted aerial platform, which will be used to clean pole mounted solar panels for street lights. So it requires a special arrangement of truck mounted water tank as well as water hose at the basket.

The pole height is 6M so aerial lift should be 8-10M.
Water tank capacity can be 3000Ltr
