Isuzu 3 Tons Shrimp Truck Fish Transported Mobile Refrigeration Truck

Chengli Special Automobile Factory
  • Certification：ISO9000
  • Payload：8t
  • Emission Standard：Euro 3
  • Transmission Type：Manual
  • Horsepower：＜150hp
  • Fuel：Diesel

Base Info

  • Model NO.：CLW5060LCCQL3
  • Bearing Capacity：Small
  • Car Type：Van
  • Condition：New
  • Chassis Brand：FAW, Icevo, Isuzu, Foton, Sinotruk, Dongfeng, etc
  • Driving Type：4X2, 4X4, 6X4
  • Product Name：Refrigerator Truck, Refrigerated Truck
  • Usage：Fresh Vegetables, Meat, Seafood Transportation
  • Color：as Your Requirements
  • Transport Package：Naked, RO-RO, Bulk. Container
  • Specification：9000mm * 2490mm * 3850mm
  • Trademark：FAW
  • Origin：China
  • HS Code：8705
  • Production Capacity：500 Units,Month

Description

Upper-Body SpecificationVan box dimension(mm)5100 * 2280 * 2300Material of van boxGlass fiber reinforced plastics (GFRP)Insulation thickness(mm)80Refrigeration unitsKorean ND THERMO brand  Type: DT-230STemperature rating in container-18ºC~0ºCVoltage & Total CurrentDC12V(20A)Power240WCompressorSD-5L09(87cc)/SD-5H09(87cc)RefrigerantR404A 1.2KgEvaporator Dimension (mm)680×594×174Condenser Dimension (mm)905×211×420Isuzu 3 Tons Shrimp Truck Fish Transported Mobile Refrigeration TruckIsuzu 3 Tons Shrimp Truck Fish Transported Mobile Refrigeration Truck
Isuzu 3 Tons Shrimp Truck Fish Transported Mobile Refrigeration TruckCompetitive Advantage

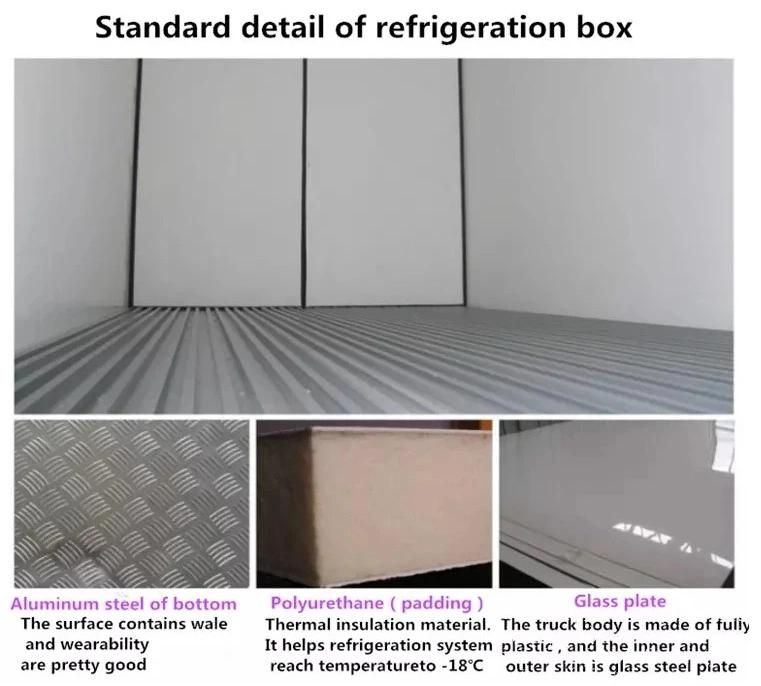

  1. The "sandwich" board bonding type assembled by pieces is currently adopted by large domestic refrigerating truck manufacturers, and the refrigerating truck produced by this technology has high heat insulation performance.
  2. Refrigerated car body structure: Polyester wet plate making process and glass fiber reinforced stainless steel column frame structure, using the most advanced fifth-generation fully enclosed polyurethane plate bonding method in the world.
  3. The material of the panel: the inner and outer wall panels are made of domestic high-quality mechanism 2.2mm FRP; the intermediate insulation material is made of thick imported polyurethane; the thickness of the car body is 80mm; the thickness of the door is 80mm; the overall aluminum plate on the bottom plate, the color plate below, the imported polyurethane.
  4. Accessories: 2.5mm aluminum alloy edging around the car, stainless steel wrap angle, stainless steel door lock, anti-collision rubber 4, stainless steel door frame, stainless steel hinge, energy saving lighting inside the box.
  5. Refrigeration unit: The well-known domestic brand of the refrigeration unit American Carrier or Thermoking overhead unit, the temperature of the car is 0 to 5 degrees and 18 degrees.
Isuzu 3 Tons Shrimp Truck Fish Transported Mobile Refrigeration Truck
Isuzu 3 Tons Shrimp Truck Fish Transported Mobile Refrigeration TruckIsuzu 3 Tons Shrimp Truck Fish Transported Mobile Refrigeration Truck
