• Model NO.：ZA20JE
• Transmission Type：Automatic
• Drive Wheel：4x2
• Condition：New
• Max. Rated Lifting Capacity：25000kg
• Max. Lifting Height of Jib：46.58m
• Transport Package：Comply with Export Packaging Requirements for Min
• Specification：12700*2500*3450 mm
• Trademark：ZOOMLION
• Origin：China
• HS Code：84262000
• Production Capacity：100 Units Per Month

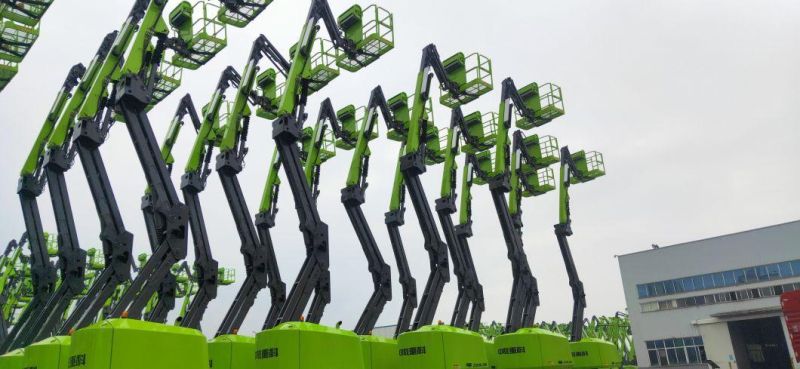

Electric Articulating Boom LiftsComply with CE/ANSI/GB StandardModel ZA20JE GBZA20JE CESizeWork Height21.45m21.50mPlatform Height19.45m19.50mHorizontal Outreach11.45m11.45mUp and Over Height8.25m8.30mA - Stowed Length8.72m8.72mB - Stowed Width2.49m2.49mC - Stowed Height2.52m2.56mD - Platform Length1.83m1.83mE - Platform Width0.76m0.76mF - Wheelbase2.52m2.52mG - Ground Clearance330mm375mmPerformancePlatform Capacity250kg250kgDrive Speed6.1km/h6.1km/hGradeability45%45%Axles Oscillation200mm200mmTurning Radius (Inside)2.78m2.78mTurning Radius (Outside)5.49m5.49mSwing400° non-continuous360° continuousPlatform Rotation±90°±90°H-Tail Swing0.6m0.6mMax. Working Slope3/5°3/5°Max. Wind Speed12.5m/s12.5m/sPowerBattery8×6V/420Ah8×6V/420AhCharger48V/35A48V/60ADrive MotorAC 32V/3.3kwAC 32V/3.3kwLift MotorAC 32V/10kwAC 32V/10kwAuxiliary PowerManual Pump12V DCHydraulic Tank Capacity75L75LTireType33x12 D610 Foam-filled Tires355/55 D625 Foam-filled TiresWeightGross9200kg9200kg
