Sinotruck HOWO 6X4 Euro3 340HP 10m3 25ton Concrete Mixer Truck
Acntruck Automobile Sales (Shanghai) Co., Ltd.- Certification：ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
- Transmission Type：Manual
- Emission Standard：Euro3
- Displacement：9
- Payload：25t
- Fuel：Diesel
Base Info
- Model NO.：HW76
- Drive Mode：6x4
- Maximum Horsepower：300-400hp
- Condition：New
- Rated Mass：11650kg
- Engine：Wd615.95c, 340HP
- Rated Power：249kw
- Wheelbase：3825+1350mm
- Front Axle：Hf9 Drum Brake, 9000kg
- Rear Axle：Hc16 2X16000kg
- Tyre：12.00r20, 10+1PC
- Transport Package：Nude
- Specification：9040× 2500× 3890mm
- Trademark：CCC ISO9001
- Origin：China
- HS Code：8474310000
- Production Capacity：100unit,Month
Description
SINOTRUK HOWO 6×4 Concrete Mixer TruckCab HW76 Cab,Single bed,Air conditioner Dimension(Lx W xH)(mm) 9040×2500×3890mm Total mass(kg) 25000kg Kerb mass(kg) 13220kg Rated mass(kg) 11650kg Approach / departure angel 16/24 Front/rear suspension(mm) 1500/2365 Max. gradeability (%) 28 Engine brand CNHTC Engine Engine model WD615.95C,340hp Rated output power 249kw Torque(N.m r. p. m) 1490N.m/1200-1500rpm Rated speed(rpm) 1900rpm Emission Standard E-III Fuel type Diesel Displacement(L) 9.726L Driving type 6×4 Axle number 3 Wheel base(mm) 3825+1350mm Clutch φ430 diaphragm spring Gearbox HW19710,10 Forward&2 Reverse,Manual Front axle HF9 Drum brake 9000kg Rear axle HC16 2×16000kg Steering ZF 8118 left-hand drive(LHD) Type 12.00R20,10+1pc Tank capacity(L) 400L Max. speed (km/h) 90km/h Color Optional Tank Volume(m³) 10m³ Pump, Motor, Reducer Imported parts

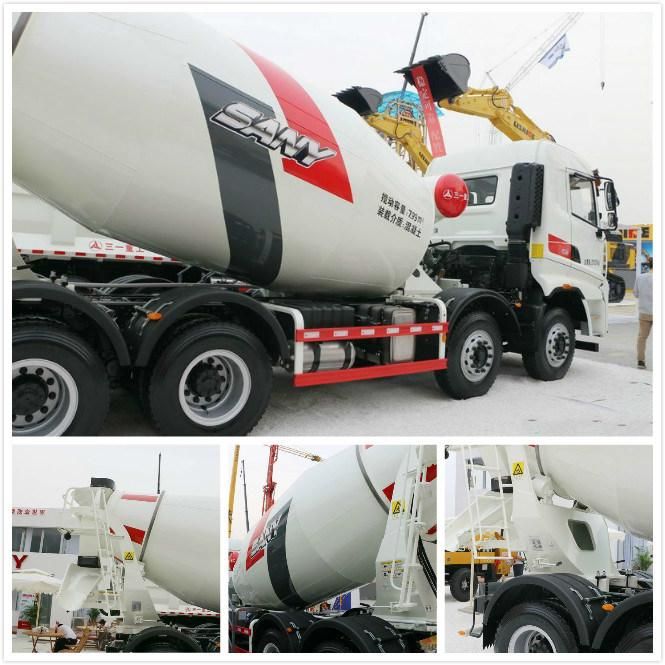

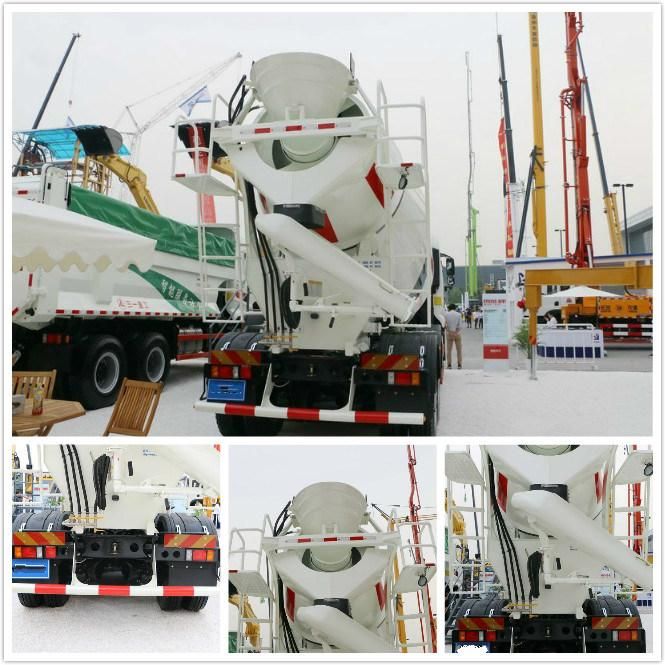

III.DETAILED IMAGES
