Specialized Vehicle

Isuzu N Series Four Doors 4ton Cooler Refrigerator Truck

Chengli Special Automobile Factory
  • Certification:ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
  • Payload:5ton
  • Emission Standard:Euro 4
  • Transmission Type:Manual
  • Horsepower:<150hp
  • Fuel:Diesel

Base Info

  • Bearing Capacity:Small
  • Car Type:Van
  • Condition:New
  • Driving Type:Oil Brake
  • Length of Van Box:4100mm
  • Van Box Material:Glass Fiber Reinforced Plastics
  • Chassis Brand:Isuzu 100p
  • Refrigeration Unit:Thermo King
  • Refrigeration Type:RV380
  • Temperature:-15ºC
  • Insulation Thickness:80mm
  • Refrigerant Type:R404A
  • Colour:Optional
  • Warranty:One Year
  • Tire:7.00r16
  • Gear Box:5speed+1reverse
  • Engine:4kh1cn5ls
  • Service Brake:Oil Brake
  • Transport Package:Nude Packing
  • Specification:5ton
  • Trademark:CLVEHICLES
  • Origin:China
  • HS Code:8704210000
  • Production Capacity:100units,Month

Description

Up-parts DescriptionVan box dimension(mm)3100×1900×1800Material of van boxGlass fiber reinforced plasticsInsulation thickness(mm)80Refrigeration unitsTHERMO KING RV-380TypeIndependent unitTemperature setting range-25ºC-+30ºCRefrigerant TypeR404ARefrigerant Filling quantity (kg)1.8Compressor ModelTK16Refrigerating Capacity (w) mbient temperature 30ºC  (A.T.P.)0ºC  4050/ -25ºC  2300
Product Images

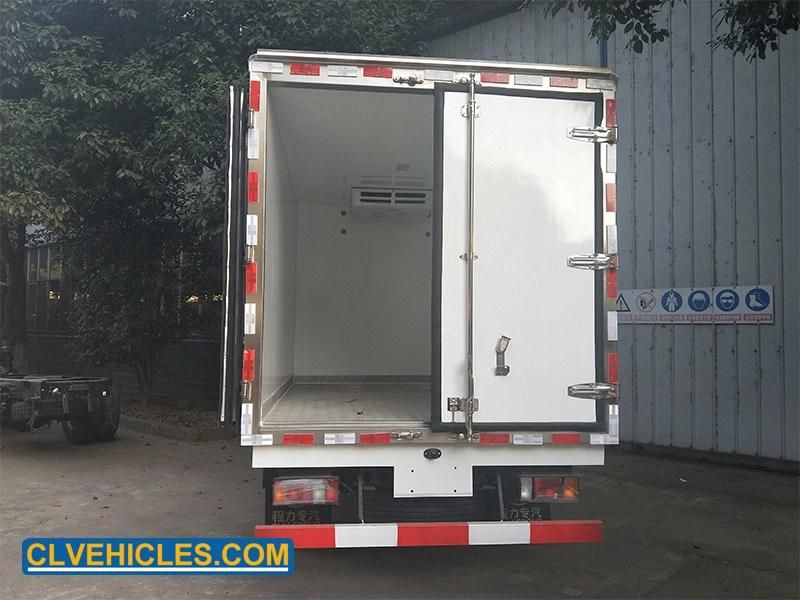

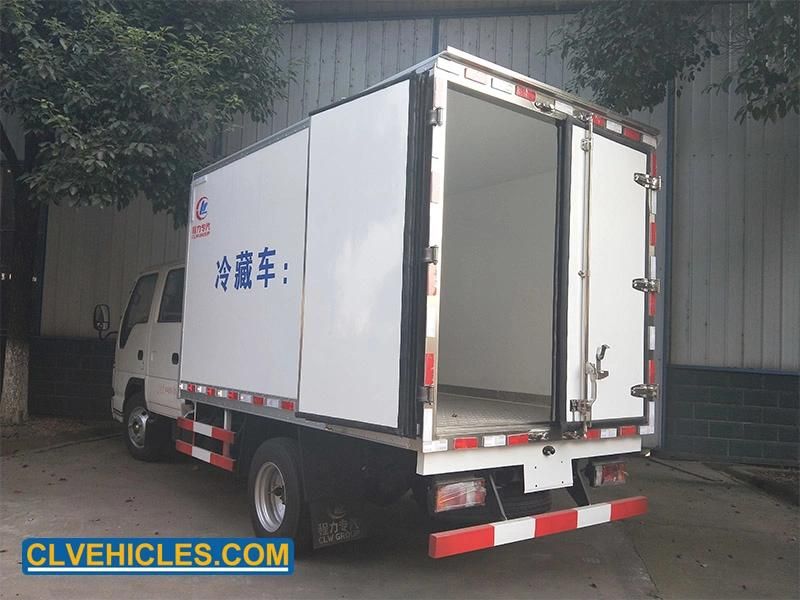

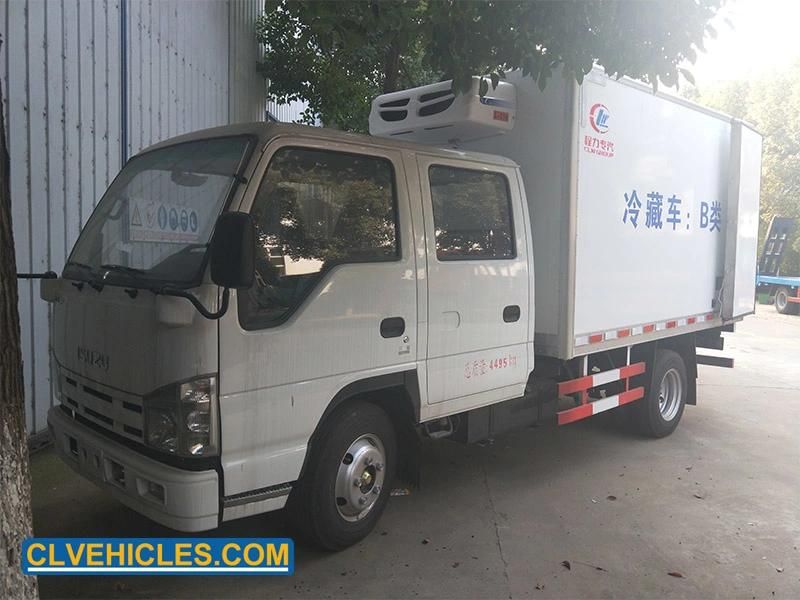

Isuzu N Series Four Doors 4ton Cooler Refrigerator Truck
Isuzu N Series Four Doors 4ton Cooler Refrigerator Truck
Isuzu N Series Four Doors 4ton Cooler Refrigerator Truck
Isuzu N Series Four Doors 4ton Cooler Refrigerator Truck

Competitive Advantage
  1. The "sandwich" board bonding type assembled by pieces is currently adopted by large domestic refrigerating truck manufacturers, and the refrigerating truck produced by this technology has high heat insulation performance.
  2. Refrigerated car body structure: Polyester wet plate making process and glass fiber reinforced stainless steel column frame structure, using the most advanced fifth-generation fully enclosed polyurethane plate bonding method in the world.

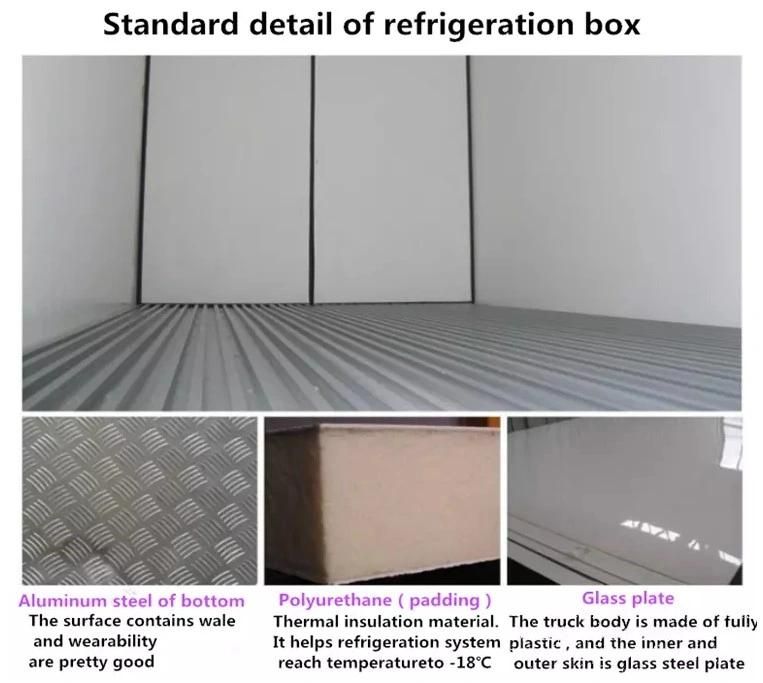

  3. The material of the panel: the inner and outer wall panels are made of domestic high-quality mechanism 2.2mm FRP; the intermediate insulation material is made of thick imported polyurethane; the thickness of the car body is 80mm; the thickness of the door is 80mm; the overall aluminum plate on the bottom plate, the color plate below, the imported polyurethane.
  4. Accessories: 2.5mm aluminum alloy edging around the car, stainless steel wrap angle, stainless steel door lock, anti-collision rubber 4, stainless steel door frame, stainless steel hinge, energy saving lighting inside the box.
  5. Refrigeration unit: The well-known domestic brand of the refrigeration unit American Carrier or Thermoking overhead unit, the temperature of the car is 0 to 5 degrees and 18 degrees.
Isuzu N Series Four Doors 4ton Cooler Refrigerator Truck
