• Model NO.：CLW
• Drive Mode：6x4
• Maximum Horsepower：300-400hp
• Condition：New
• Truck：Concrete Mixer Truck
• Drive Type：4X2,6X4,8X4
• Mixer Body Volume：6cbm, 8cbm, 10cbm, 12cbm, 14cbm
• Cabin：1 Sleeper or Without Sleeper
• Tire：12.00r20,11r22.5,315,80r22.5
• Speed Reducer：Italy Brand
• Motor：Japanese Brand
• Cylinder Number：6
• Pump：Imported Brand, or Chinese Famous Brand
• Driving Type：LHD or Rhd
• Transport Package：Waxed Before on Board
• Specification：CCC, ISO9001
• Trademark：CLW
• Origin：Hubei Suizhou
• Production Capacity：500 Unit,Month

cement mixer TruckModelSCL5251GJBA4Gross weightkg25000Curb Weightkg10870Overall Dimensionmm9500X2490X3950Tank volumem310Wheelbasemm3800+1350Axle loadkg7000/18000Wheel TrackFrontmm2050Rearmm1850Minimum Ground Clearancemm550EngineWP10.380E32/380, water - cooled, direct injection, and intercooledPowerkW283Emission standardEuro 3TransmissionFaster , 9+1Torque1400N·mMaximum torque speed1200-1400rpmRated speed1750rpmFuel ConsumptionL/100Km28-33Fuel Tank CapacityL300Fuel typeDieselTires12.00R20Rear axle ratio5.2Maximum Speedkm/h85Maximum Grade ability%25Minimum Turning Circlem19Max. Brake Distance(Fully laden,30km/h)m9.5Material of tank bodyAlloy manganese steelVolume of water tank400LThickness of tank (mm)Body Thickness:6
Sealing head Thickness:8ReducerGerman Z F brandHydraulic systemGerman REXROTH brandCooling systemChina well-known brandFeeding speed≥3 m³/minRunning speed0-14 r/minOutput speed≥ 2 m³/minResidue rate≤1%

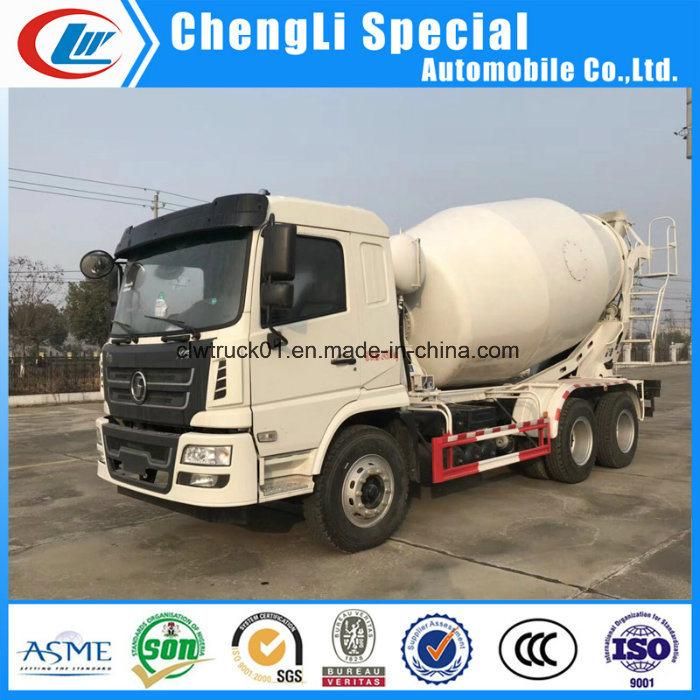

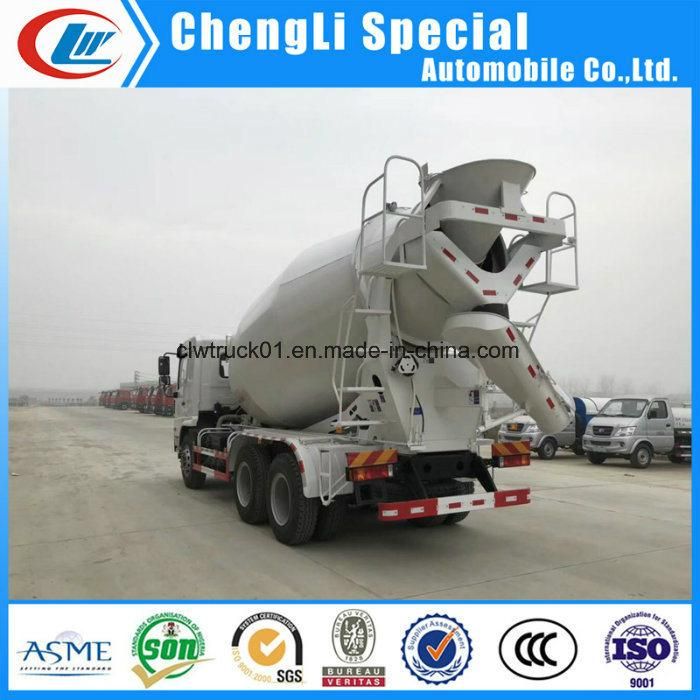

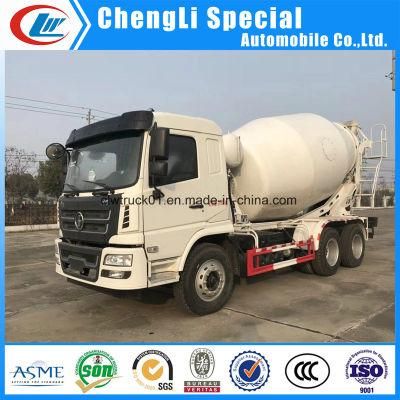

Product photo for reference:



Company Information

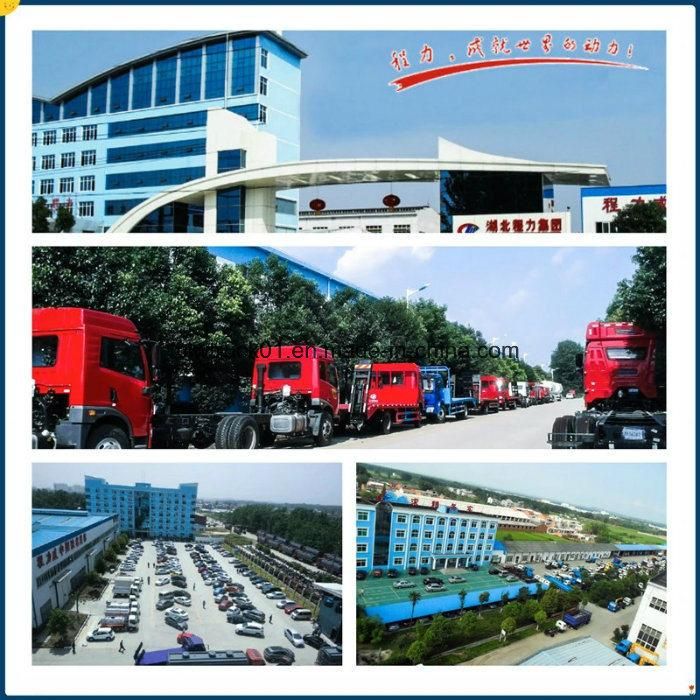

ChengLi Special Automobile Co., LTD is a manufacturing group located in SuiZhou City, HuBei Province, China.

1. Our factory is a professional truck & tanker manufacturer with more than 12 years experience in China.

2. There are totally 8000 workers, include 100 senior welder and 15 senior engineers.

3. More than 300 type of products supply.

4. Our sales volume of 2015 reach US$300 million.

Our Services

1. One year quality warranty for key parts such as axles, engine, transmission;

2. All spare parts would be OEM and supplied at cost prices;
3. Overseas service center to ensure efficiency after-sales service;
4. Regular after-sales visit to collect information about the vehicle's working status and feedback from customers.

Certificates



Other Products

Our main products:

1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )






Customised Truck & Trailer Solutions to Meet Your Requirements
