• Model NO.：Telescopic Ladder Truck
• Hoesrpower：150-250hp
• Payload：7t
• Fuel：Diesel
• Transmission Type：Manual
• Drive Wheel：4x2
• Condition：New
• Tire：8.25-16
• Cabin：Jmc
• Fuel Tank(L)：400L
• Drive：LHD
• Work Lift Height：18-20m
• Boom Crane Loading Capacity：1000kg
• Wheelbase (mm)：3950, 4200, 4500, 4700, 5100
• Engine：160HP, 190HP
• Transport Package：Nil
• Specification：28m
• Trademark：DRZ
• Origin：China
• HS Code：8705909990
• Production Capacity：10000
• Package size per unit product：880.00cm * 250.00cm * 340.00cm
• Gross weight per unit product：6800.000kg

Overview ItemsDescriptionsSpecifications and TypesGeneralTruck NameAerial ladder moving truckDrive Type4*2Gross Weight(kg)4495Curb Weight (kg)4170Overall Dimensions L*W*H(mm)5810×2010×3250EngineEngine ModelCY4102-C3FEngine BrandChao ChaiFuel TypeDieselPower70kw/95HPEmission StandardEuro IIIDisplacement(ml)3856Engine Type4 cylinders in line,water cooling, turbo-charged diesel engine,inter-coolingChassisChassis BrandDongfengCabinFlat roof, single rowTire No.6+1Tire Specification7.00-16 Nylon tireWheelbase (mm)3300Axle No.2Gear Box5 speed forward with 1 reverse, manualBrakeAir brakeSteering WheelLeft hand drive with power-assistedRadiatorSuitable for tropical climatePerformanceMax lifting height(m)28Outrigger No.4

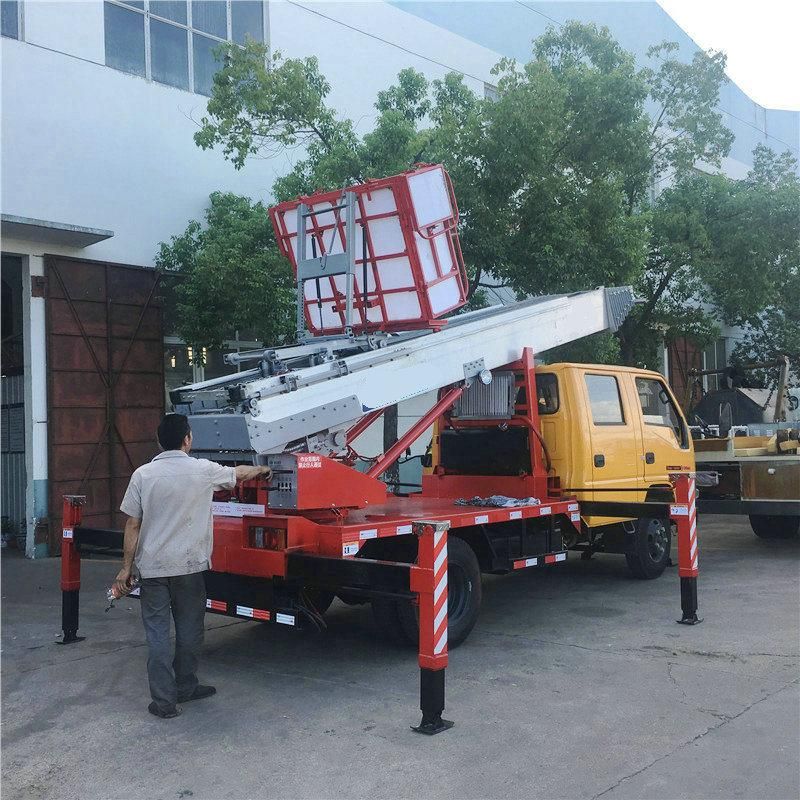

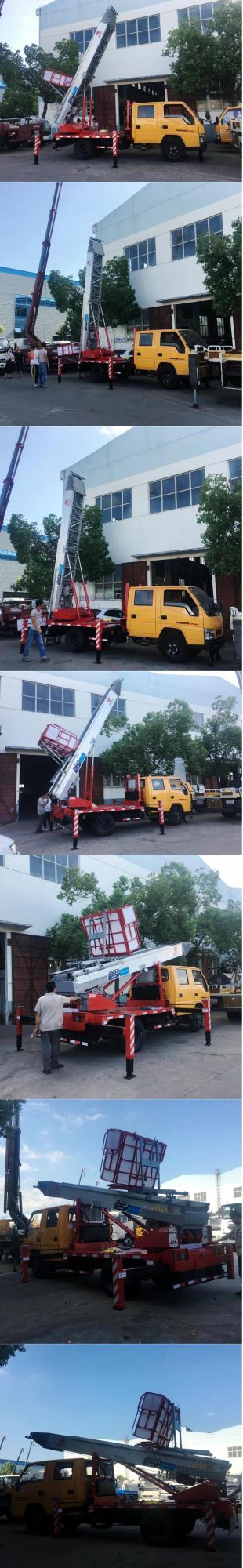

Pictures of new Chinese hydraulic lift ladder truck for sale






ISU.ZU mounted Crane truck ( 3.2Ton boom crane SQ3SK2Q)

General

Vehicle Brand

 DONG RUN ZE TRUCKS

Chassis Brand

I.S.U.Z.U

Overall Dimension

6500 * 2100 * 3100 mm

GVW / Kerb Weight

7,300kg / 4,000kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

I.S.U.Z.U

Power

130 HP (88 KW)  4KH1

Displacement

2999 ml

Emission Standard

Euro 4 or 5

Chassis

Drive Type

4X2, (Left hand drive ONLY)

Transmission

Manual MSB 5 speed levers with 1 reverse

Wheelbase/No. of axle

3360 mm / 2

Tire Specification

7.00-16

Tire Number

6 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Cargo Box Dimension

4000*1900*500 mm

Crane Type

Telescpoic boom crane

Max Lifting Capacity

3200 kg

Slewing Angle

360° All rotation

Crane Weight

1229kg

Installation Space

850 mm

Control panel

English or Your language

All standard accessories: Basic tool kit, English manual...

Optional

** Knuckle boom crane.

** Hydraulic tipper box.

** Box thickness according to requirement.

** Box height could be nominated
** Remote Control Box optional





ItemsParameterTruck Model5070JSQ2Crane Parameter  Max Lifting Capacity3200 kgMax Lifting Moment6.8 T.MRecommend Power14 kwMax Oil Flow of Hydraulic System25 L/minMax Pressure of Hydraulic System20 MpaOil Tank Weight30 LCrane Weight1229 kgInstallation Space850 mmRotation Angle360° All Rotation  Cargo Body  ThicknessSide2mmFloor3mm



Similar Key Words: hydraulic boomlifter, overhead working truck, truck mounted aerial platform, aerial beam lifter, man lift truck, articulated basket platform, skylift, insulated aerial cage truck

tictrucks.en.made-in-china.com

PACKING & DELIVERY

Aerial platform truck 16m water tank and water pump ,Truck Mounted Aerial Work Platform water tank,Work Platform water tank truck,aerial bucket truck  water tank,bucket truck with water tank ,Truck Mounted water tank Aerial Work Platform



Certifications

Packaging & Shipping



Truck mounted aerial platform, which will be used to clean pole mounted solar panels for street lights. So it requires a special arrangement of truck mounted water tank as well as water hose at the basket.

The pole height is 6M so aerial lift should be 8-10M.
Water tank capacity can be 3000Ltr

Truck may be medium light truck of 3.% ton.
