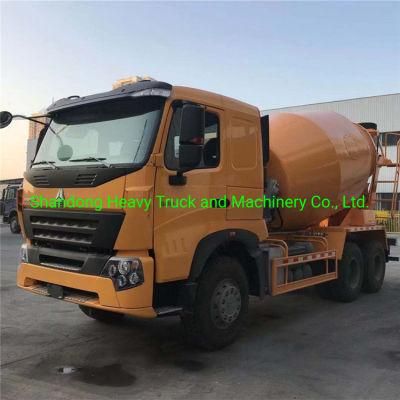

Sinotruk HOWO A7 Concrete Mixer Machine 6X4 9m3 Concrete Mixer Pump Truck for Sale

Jinan Sino Vehicles Sales Co., Ltd.
  • Certification：ISO9000, CCC
  • Transmission Type：Manual
  • Emission Standard：Euro 2
  • Displacement：9
  • Payload：30T
  • Fuel：Diesel

Base Info

  • Model NO.：ZZ1257M3647W
  • Drive Mode：6x4
  • Maximum Horsepower：300-400hp
  • Condition：New
  • Wheel Base：3600mm
  • Engine Model：Wd615
  • Tires：12.00r20
  • Transmission：Hw19710
  • Concrete Max. Output：T: 9m3,Time
  • Transport Package：in Nude
  • Specification：8800*2550*3800 mm
  • Trademark：HOWO
  • Origin：Shandong Province
  • Production Capacity：1000 Pieces,Year

Description

Operating voltage:24V, negative grounded
Starter: 24V, 7.5KW
Alternator: 3-phrase, 28V, 1540W
Batteries: 2×12V, 165Ah
Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lampDimensions in mmWheel base (mm)
Front wheel track (mm)
Rear wheel track (mm)
Front overhang (mm)
Rear overhang (mm)
Approach angle(°)
Departure angle(°)
Tank capacity  (mm)3825+1500
2022/2041
1830
1500
1850
19
23
10CBM Imported pump, motor and reduerWeight in kgPermissible loading capacity (kg)
Dead weight (kg)
Gross vehicle weight (kg)
Gross combination weight (kg)
Front axle loading capacity (kg)
Rear axle loading capacity (kg)30000
12090
25000
30000
9000
2×16000PerformanceMaximum driving speed(km/h)
Maximum gradeability (%)
Minimum ground clearance(mm)
Minimum turning radius (m)
Fuel consumption(L/100km)78(reference data)
36
314
15
40(reference data)Packing and delivering:
