• Model NO.：sewer cleaning tanker truck
• Drive Wheel：6x4
• Hoesrpower：251-350hp
• Condition：New
• Model：HOWO 336HP Sewage Truck
• Diesel Emission：Diesel Emission StandardT Euro II
• Dimension (mm：9600*2500*3690
• Engine：Wd615.69
• Gear Box：19710
• Cabin：Hw 76
• Capacity：16000L
• Front Axle：Hf7
• Rear Axles：Hc16
• Transport Package：Nude Packing, Wax Before Shipment
• Specification：SGS
• Trademark：sinotruk
• Origin：Shandong
• HS Code：8701909000
• Production Capacity：10000 Sets Per Year

Technical Specification
Name

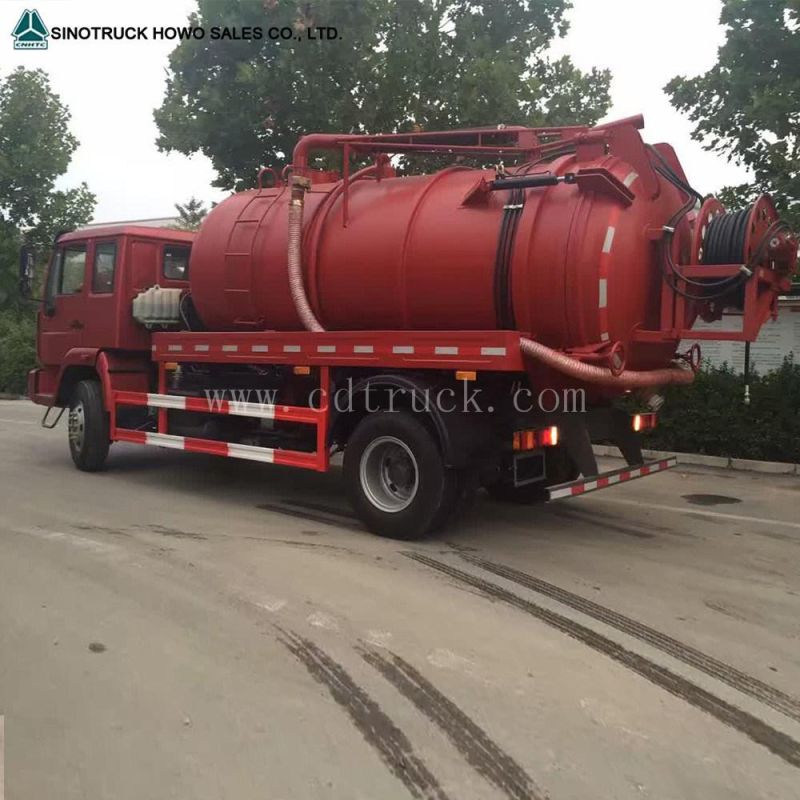

HOWO 336HP sewage truck
Fuel type
Diesel
Emission Standard
Euro II
Dimension (mm)
Overall dimension (L×W×H)
9600*2500*3690
Wheel base
4325+1350
Front overhang
1500
Rear overhang
2600
Weight data (kg)
G.V.W
25000
Curb weight (chassis)
13840
Whole vehicle
main performance
Max. speed (km/h)
90
Engine
Model
WD615.69
Maximum power
247kw / 336hp
Number of cylinders
6
Displacement (L)
9.726
Engine Manufacturer
Sinotruk
Gear box
Model
HW15710
Number of gears
10 forward gears & 2 reverse
Axle
Front Load capacity (ton)
7
Rear Load capacity (ton)
13
Steering Wheel
left hand drive
ZF8098
Electric device
Rated voltage
24V
Tyre & Quantity
295/80R22.5 10+1 pcs
Cabin
HW76 cab(single sleeper,A/C),55º hydraulically tillable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio, safety belts and adjustable steering wheel, air horn, 4-point support fully floating suspension and shock absorbers.
Tank Description
Tank Capacity
16000L
Standard Equipment
1.Equipped with hydraulically opened rear lid withself-discharging,
high vacuum degree and sucking range
2.Equipped with self-priming and self-draining vacuum pump
(rating rotate speed=1400r/m,min rotate speed>800r/m,max suctio lift>6m
vacuum>500mmHg, clockwise)
3.Time for full suction<5min

Our main products include low bed semi trailer, flatbed semi trailer, fuel tanker semi trailer, cement tanker semi trailer, tanker.
truck series: sinotruck howo series. such as tractor truck, dump truck, fuel tanker truck, water tanker truck, cement tanker truck. and so on.
as a trailer manufacturer and agent for sinotruk. we can offer best price for you.
