• Model NO.：DRZ5260GXWZZ
• Fuel：Diesel
• Tank Volume：15000~20000L
• Drive Wheel：6x4
• Hoesrpower：251-350hp
• Condition：New
• Tire：11.00-20, 295,80r22.5
• Alxes：Sino Truck Technology
• Engine：Wd615.69
• Emission Standards：Euro 2, Euro 3, Euro 5-6
• Tank Capacity：14000~20000L
• Driving Type：LHD ,Rhd Optional
• Wheelbase (mm)：4325+1350
• Vacuum Pumps Model：50qzxdg-45,400 or 65qzxdg-68,400
• Transport Package：Nil
• Specification：OEM
• Trademark：HOWO
• Origin：China
• HS Code：8705909990
• Production Capacity：10000

Overview ItemsDescriptionsSpecifications and TypesGeneralTruck NameSewage suction truck Drive Type6*4 Gross Vehicle Weight(kg)25000 Curb Weight (kg)12050 Overall Dimensions L*W*H(mm)8900×2500×3600EngineEngine ModelWD615.69 Engine BrandSINOTRUK Fuel TypeDiesel Power250kw/336HP Emission StandardEuro II Displacement(ml)9760 Engine Type6 cylinders in line, water cooling, turbo-charged diesel engine, inter-coolingChassisChassis BrandHOWO Front/Rear Axle Load(KG)7000/18000 (parallel installed) Tire No.10 Tire Specification295/80R22.5 Tubless tire Wheelbase (mm)4325+1350 Axle No.3 Gear BoxHOWO 10 speed forward with 2 reverse, manual Steering WheelLeft hand drive with power-assisted BrakeAir brake CabFlat roof with single sleeper, with A/CSucking SystemTank Volume(L)18000 Tank shapeCylindrical Tank Material5-6mm thick carbon steel Vacuum PumpDouble Wei Yi pump Suction Depth(m)More than 6 meterCabinHW 76 Standard Cab, Right hand drive, one sleeper. A/C, With two bunks, 70° hydraulically tillable to the front as attached photo for ref. (picture just for reference)





Vehicle Main Dimensions(L x W x H)mm10400x2500x3450Wheel base (mm)5800+1400Wheel track (front/rear) (mm)2022/1830Approach/Departure angle(°)16/15Weight in KGSTare Weight12000KGLoading Capacity20000Front axles loading capacityHF9 1x9000Rear axles loading capacityST16 2x16000Max. driving speed(km/h)90EngineBrandSinotrukModelWD615.47Type4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-coolingHorse Power(HP)371HPEmission standardEuroGearboxHW19710, 10 Forwards gear & 2 reverseClutchReinforced diaphragm clutch, diameter 430mmSteering GearZF 8098, power steering, hydraulic steering with power assistanceFuel tank (L)300LTire12R22.5 radial steel tire 11 Pieces including one spareBrakes

Service brake: dual circuit compressed air brake

Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust valve brake

UPPER EQUIPMENTTanker Capacity16 cubic metersTank MaterialMaterial: Q235 high tension steel, Body Thickness 6mm, End Plate thickness 8mm, With Hydraulic Controlled Rear Door and Middle lifting.Vacuum Suction PumpChinese Famous Brand, 4" diameter Rubber tube in 6 meters long, Vertical Suction Range 6 meters under ground level, Full Tank Suction time about 9 minutes, Vacuum Pressure -0.092Mpa.

The pictures of HOWO 6x4 6x6 371hp Widely used cleaning Tanker truck 12000L-16000L Suction sewage truck

HOWO 10 CBM Vacuum suction sewage truck
Cesspit Emptier












Truck chassis specification
Item
unit
parameter
Chassis model

ZZ1164K4516D1
Overall dimensions
mm
8300x2490x3400
GVW
kg
Appro × 16000
Mass in working order
Appro × 6805
Wheel base
mm
4500
Exhaust / hp
ml / hp
6494 / 220
Max speed
km / h
95
Tire specification
10.00 - 20
Engine type
YC6J220-46
Traction system
4 × 2
Number of Tyres
6
Number of axles
2
Electric system
24 V
Operation control system
Electrically hydraulic control
Allowable passengers in cab
3
F / R Axle load ( kg )
  6000 / 10000
Engine
The truck, diesel engine, water cooled, direct injection, 220 horse power




Special function
Specification
Tank Capacity ( L )
12000
Tank Dimension ( mm )
4500 x Φ1800
Equipped with high-power vacuum suction sewage pump.
Tanker with lifting function, with double hydraulic cylinder, rear cover can hydraulic open with self-flowing valve.
Equipped with power take off, transmission shaft, , pipe network, sewage pipe for
observing and cleanout equipment.

, SINO TRUCK vacuum tanker truck, SINOTRUCK sewage suctionvehicle HOWO septic suction truck, HOWO Vacuum suction sewage truck
http://tictrucks.en.made-in-china.com
Emission Standard
 EUR 2
 Driving Type
 4×2
 Sewage tank volume (L)
 10000 liters
 Dimensions
 Wheelbase(mm)
 4700
 Overall Dimension(mm)
 7850x2490x3250
 Weight parameters
 GVW(kg)
 16000
 Rated Payload (kg)
 7360
 Curb weight(kg)
 8510
 Front axle load(T)
 7 Ton front axle load capacity
 Rear axle load(T)
 Styre 10 Ton rear axle load capacity
 Front axle span(mm)
 2020
 Rear axle span(mm)
 1850
 Front/rear overhang(mm)
 1560/2133
 Max speed(km/h)
 99
 Engine performance
 Engine model
 YC6J190-30
 Engine manufacture
 Yuchai engine
 Engine type
 Straight in-line,6 cylinders,water-cooling,direct injection
 Displacement(L)
 6.494L
 Max. output(kw/Hp)
 140kw/190hp
 Drive line system
 Clutch
 GF420J styre technology, Dry-type single shock spring clutch
 Transmission
 9 forwarder,1 reverse gear, Mechanical control, manual operation
 Spring suspension type-Leaf spring mechanical suspension
 No. of leaf of spring

 Brake system
 Service braking
Pneumatic braking system
 Parking braking
Spring brake, acting on the front and rear axle, emergency braking
 Cab description
Crew cut, one and half cab,3 passengers allowed, air-conditioner, the cab can be tippable
Forwardly, all metal enclosed cab.
Tire specification
 Tire specification
 10.00-20,total 6 tires
Sewage suction tanker system description
 Suction pump
Vacuum sewage suction pump
 Vacuum degree (kpa)
90Kpa
 Pump type
vacuum pump model:50QZXDG-30/40
 Rated speed (R/min)
500r/min
 Pump speed (L/s)
318m3/h
 Suction range (m)
»8m
 Lift angle of tank (°)
30°
 Tank material
Q235A
 Full suction time (m)
About 6 minutes
 Absolute working pressure (Mpa)
10Mpa
 Inlet /outlet hole diameter (mm)
DN100
  ModelManufacturerTIC5150GXW3TIC DRZETank bodyStandard dump bodyCubic volume (m3)8-10Body length (mm)5150Body width(mm)1790Tank materialExcellent Q235A carbon steelTank shapeRoundnessVacuum pump information ManufacturerChina famous WeilongTypevacuum pump XD-44 2units pumpDisplacement (Ml/R)63Pressure (Mpa)16Roate speed (R/min)500-3000Max Vertical Suction (m)≥8Absolute Working Pressure (pa)8500Rated Speed (RPM)500Rated Pumping Speed (L/s)98Pump inlet diameter (mm)50Container Filling Time (s)≤4Container Emptying time (s)≤4Max Vertical Suction (m)≥8Absolute Working Pressure (pa)8500Rated Speed (RPM)500Hose diameter (MM)100Discharge angle (.)45Engine ModelYC4E160-33TypeDiesel ,4-cycle, 4 cylinder in line,Water cooledMax output power(kw/rpm)139/1600Maxtorque(N.m/rpm)2200Displacement (ml)4260Emission standardEuro 3Transmission& Clutch ModelHW90710C ( china famous )Type7 Forward and 1 Reverse SpeedGearshiftManual (Mechanical)Clutch390 mm Dry and Double Plate ClutchFront Axle TypeHOWO famous diecasting I-beamSuspension typeMultiple leaf main springsCapacity (kg)5000Rear Axle TypeCasting iron, AxlesSuspension typeMulti leaf spring,Capacity (kg)10000 kgsRear axle ratio5.98Main Technical Specification Drive type4x2Wheel base (mm)4700Overall Length (mm)7850Overall Width (mm)2500Overall Height (mm)3200Kerb weight (kg)7300Payloading capacity (kg)10000G.V.W (kg)17390Max. traveling speed (km/h)90Front track (mm)2020Rear track (mm)1860Min. ground clearance (mm)215Cab & Tire TypeForward control, all steel welded construction, cabin Painting. RadioSeat3 seatsAir conditioner systemManual controlTire size9.00-20-18PRNo. of Tire6 + 1Electric System System voltage24V, Negative earthBatteries (V/Ah)24/123Steering system Type of steering gearRecirculating ball and screw typeAdjustment of wheelTilt and telescopicSteering wheel positionLeft hand driveFuel capacity Tank capacity (L)200Fuel consumption for 100km (L)25

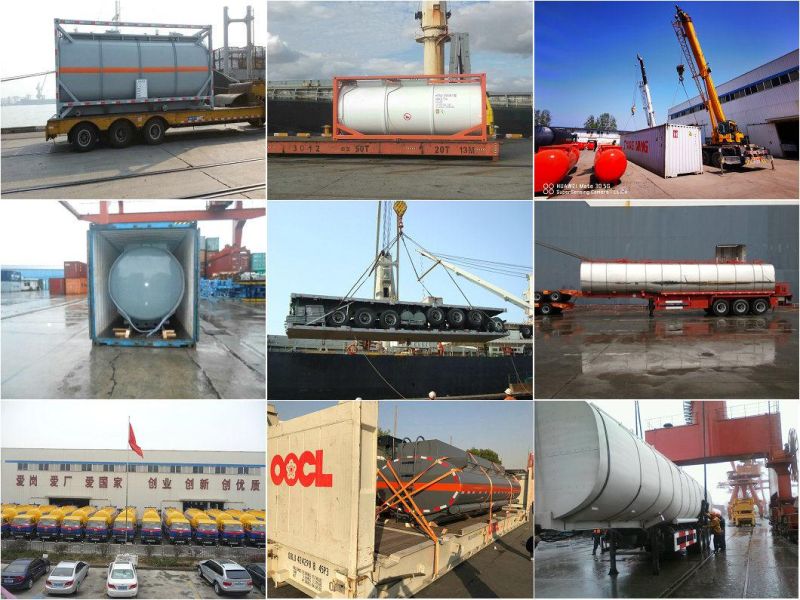

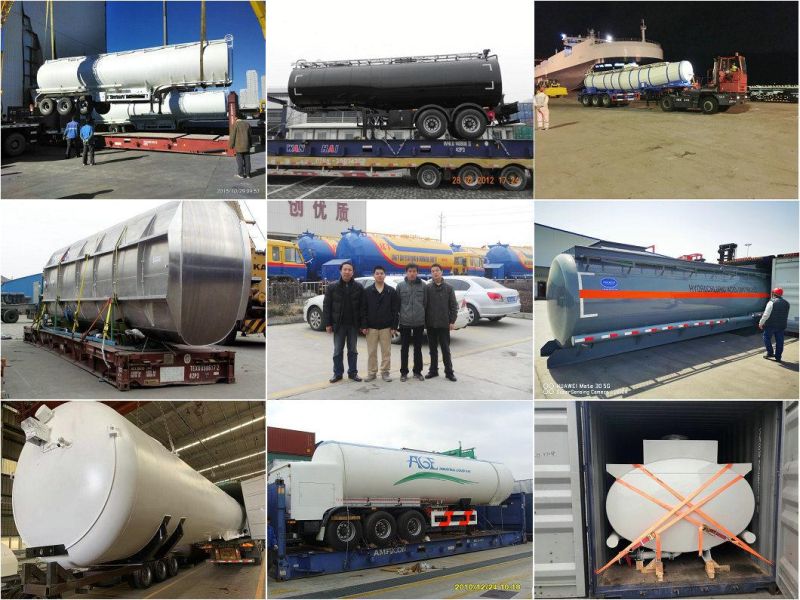

 2. Packing and Shipping:



Truck is nude packing, shipping in container, in bulk , in ro-ro.

We will choose the best shipping type basis on truck volume, truck structure, Sail Schedule, clients' requirement for clients!


3. Company Information:

Hubei Dong Runze Special Vehicle Equipment Co., Ltd.    & TIC TRUCKS INDUSTRY CO.,LIMITED is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.

Our advantage:

(1) We have own factory located in Suizhou---the special truck town of China.We can control every details----the development, the quality and the cost. As a result we can supply the quality goods with most competitve price.

(2) We are familiar with the whole Chinese special truck market. And we are clear the different advantage and different quality level for each factory. So we can consolidate the resource for the customers and supply the most suitable goods for them.

(3) There is a stronge professional team in our company including engineers and business executives. So we can provide the best solution and service for all customers.

If you have any other questions or there is anything we can do for you, pls feel freely to let me know. We are glad to provide the best service.


4. Our Service:

Left-hand drive, if you need Right-hand drives, please inform us, we will make special order for you.


We highly recommend this sewage suction tank truck. It's in an excellent condition and also with good quality and competitive price. Further information, pls feel free to cantact with me or visit our website, we will offer our best service.


If you have any requirements about special trucks, kindly let me know, I will do my best fo provide the most suitable type and competetive price for you.

Looking forward to receiving your inquiry!

 Sewage Tank,Sewer JettingTruck,Vacuum Suction tanker , vacuum suction truck  ,vacuum truck,Sewer Jet Truck ,vacuum sewage suction truck ,Septic Tank Truck ,Cesspit Emptier

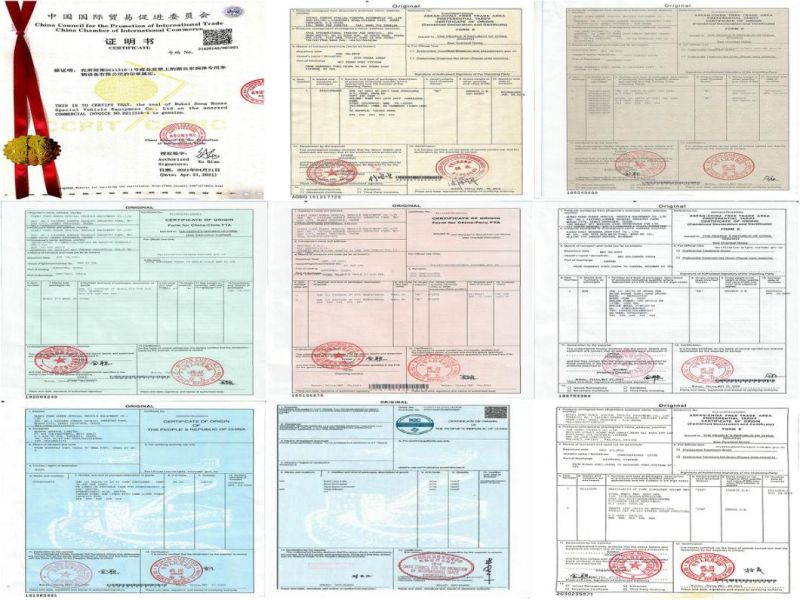

Certifications
