Sinotruk HOWO 14-16ton Vacuum Fecal Suction Truck Sale
Shandong Yuncheng Chengda Trailer Manufacturing Co., Ltd.- Certification：ISO9000, CCC, BV,Wmi
- Emission Standard：Euro2 and Euro 3
- Payload：20T
- Transmission Type：Manual
- Fuel：Diesel
- Tank Volume：15000L
Base Info
- Model NO.：ZZ1257N4647C
- Drive Wheel：6x4
- Hoesrpower：251-350hp
- Condition：New
- Truck Model：Sino Truk
- Overall Dimension(Lx W Xh)：10350*2496*3048
- Overall Dimension of Tank (mm)：7000×2110×1410
- Loading Weight：20000kg
- Engine Model：Wd615
- Fuel Type：Diesel
- Horse Power：371HP
- Emission：Euro II
- Displacement：11.592 L
- Tire：12.00r20 Radial Tires
- Transport Package：Bulk Ship, Container Ship, Roll Roll Ship
- Specification：SGS, CCC, BV, WMI, ISO
- Trademark：SINO TRUK
- Origin：Shandong Province, China
- HS Code：870590999
- Production Capacity：1000000units,Year
Description

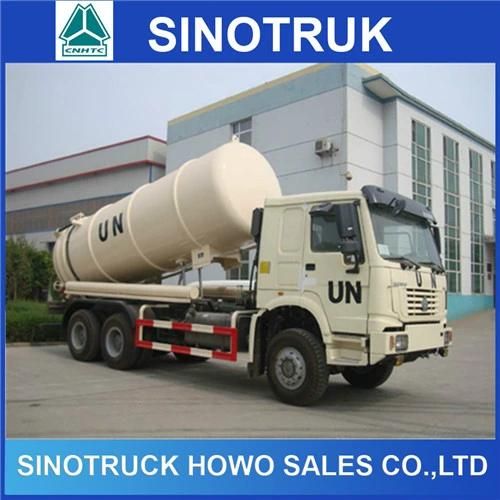

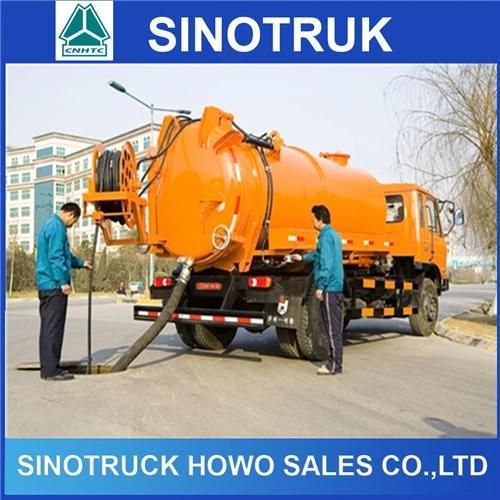

Sinotruk Howo 6x4 Vacuum Truck - 15 CBM
Chassis Model
ZZ1257M4647C (Left Hand Driving Type)
Production Year
2015, new truck.
Cabin
HW76 cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn,air conditioner , with transverse stabilizer,with 4-point support fully floating suspension + shock absorber.
Engine
Make: SINOTRUK
Diesel 4-stroke direct injection diesel engine
Engine model: WD615.87, 290HP, Euro 2
6-cylinder in-line with water cooling, turbo-charging and intercooling
Displacement: 11.592 L
Transmission
HW15710, 10F & 2R.
Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering
ZF power steering, modol ZF8118, hydraulic steering with power assitance
Front Axle
HF9, 1x9000 KGS, Drum Brake
Steering with doubleT-cross section beam
Rear Axle
HC16, 2x16000 KGS
Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.
Ratio:4.8
Propeller Shaft
Double universal joint propeller shaft with gear-shaped coupling flange
Chassis
Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members
Front suspension:10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer
Brake
Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake
Electrics
Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tyres
12.00R20, radial tyres with one spare tyre
Fuel Tank
400L
Suction Sewage Tank
15 CBM, with rear back hole, and anti-static, with Jurop Vac. Pump PN84D
Overall Dimension
8800*2550*3200 mm
NO.2 Packaging & Shipping
Packaging Detail:
wax,nude, can be carried by bulk carriers or ro-ro ship.
Container , flatrack shipment
Delivery Detail:
Within 30 days after receiving the payment.
NO.3 Our Services
Products--100% First Class!
Transportation--100% Convenience, Efficient!
Services--Obtaining a satisfied smile!
NO.4 Company Information
1.Shandong Chengda Trailer Manufacturer Co.,Ltd. established in 2005 is one of the qualified
manufacturers of various trailers, like lowbed semi-trailer, flatbed semi-trailer, cargo trailer, etc.
2.Integrated production, scientific research&development and professional sales teams, all those advantages
could provide full service of trailers, semitrailers, tractor head, dump truck, engineering machinery and
trailer parts.
3.With high standard machinery and automatic equipment, powerful R&D team and elite sales team, We have built a
long business relationship with many world famous enterprises such as SINOTRUK, SHACMAN, FAW, etc.
4. In 2014, we enlarged our factory and add more prodution line. The sales valve in this year increase in a
boom way..
NO.5 FAQ
1. Q: Are you a manufacturer or trading company? A: We are manufacturer.
2. Q: What about your products quality? A:"Quality is priority." We always attach great importance to quality controlling from the very beginning.
3.Q:What payment do you accept? A: T/T, L/C;
4.Q:What is the MOQ of your products? A: 1 set.
Tell us your needs and we'll let you know how we can help. Click "send" Now!
Contacts: Lyric Wang
Company Name: Shandong Yuncheng Chengda Trailer Manufacturing Co., Ltd.
Address: Jingdu Guoji Building,Shunhedong Street,Shizhong Zone, Jinan City, Shandong Province, P.R.China
