HOWO DN300-DN1500 Sewer Main Lining Repair Pipe Cipp Trenchless UV LED Light Curing Vehicle 4X2 Drive LHD Underground Pipeline Trenchless Repair Truck

HUBEI RUILI AUTOMOBILE CO., LTD.
  • After-sales Service:Yes
  • Warranty:1 Year
  • Certification:ISO9000, CCC, TS16949, EEC
  • Emission Standard:Euro3 Euro4 Euro5
  • Payload:8tons-15tons
  • Transmission Type:Manual

Base Info

  • Model NO.:CLW
  • Fuel:Diesel
  • Tank Volume:6000L
  • Drive Wheel:4x2
  • Hoesrpower:150-250hp
  • Condition:New
  • Temperature Classification:Medium Temperature Piping
  • MPa Classfication:High Pressure Piping
  • Material:PVC Pipe
  • Diameter:200-1800
  • Cross-Section Shape:Round
  • Waterproof Grade:IP68
  • Cable Length:150m
  • Repair Length:Different Length
  • Size:1700mm*750mm*1270mm
  • Power Supply:380V,52kw Generator Is Recommended
  • Transport Package:Naked Packing, RO-RO, Bulk Ship
  • Specification:7500*2300*2850mm
  • Trademark:CLW
  • Origin:Suizhou, China
  • HS Code:8525803100
  • Production Capacity:500unit Per Month

Description

Basic Info.

Model NO. CLW Fuel Diesel Tank Volume 6000L Drive Wheel 4x2 Hoesrpower 150-250hp Condition New Temperature Classification Medium Temperature Piping MPa Classfication High Pressure Piping Material PVC Pipe Diameter 200-1800 Cross-Section Shape Round Waterproof Grade IP68 Cable Length 150m Repair Length Different Length Size 1700mm*750mm*1270mm Power Supply 380V,52kw Generator Is Recommended Transport Package Naked Packing, RO-RO, Bulk Ship Specification 7500*2300*2850mm Trademark CLW Origin Suizhou, China HS Code 8525803100 Production Capacity 500unit Per Month

Product Description

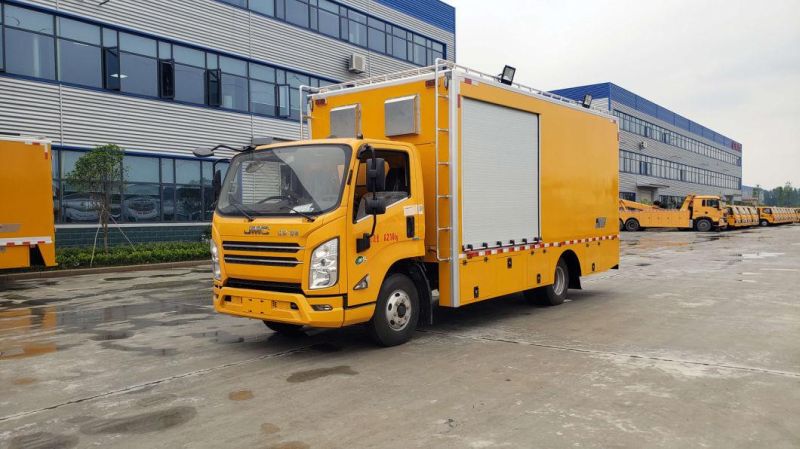

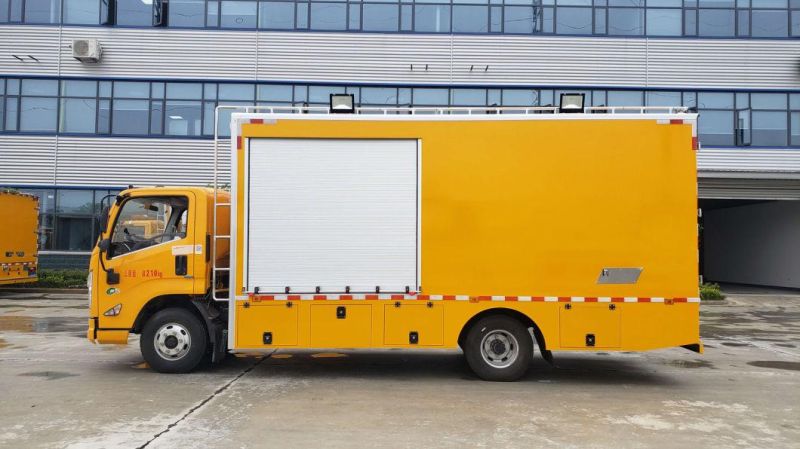

HOWO DN300-DN1500 Sewer Main Lining Repair Pipe Cipp Trenchless UV LED Light Curing Vehicle 4x2 Drive LHD Underground Pipeline Trenchless Repair Truck

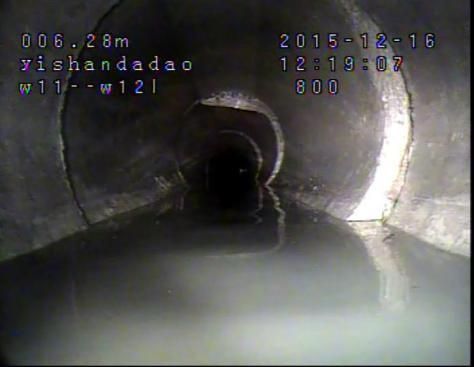

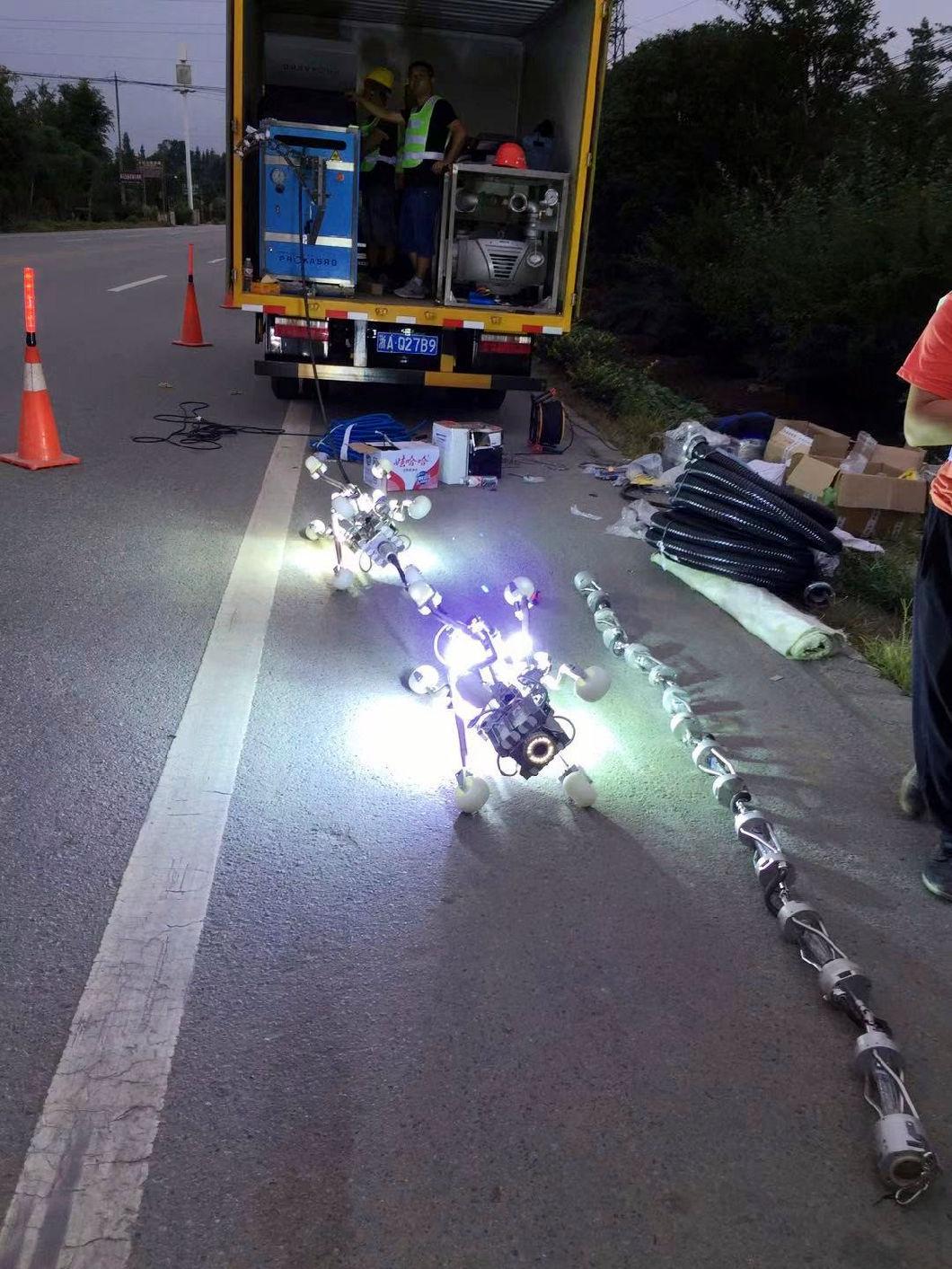

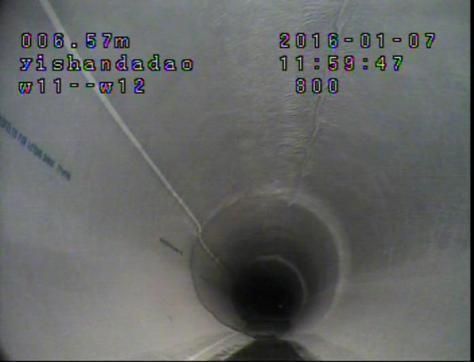

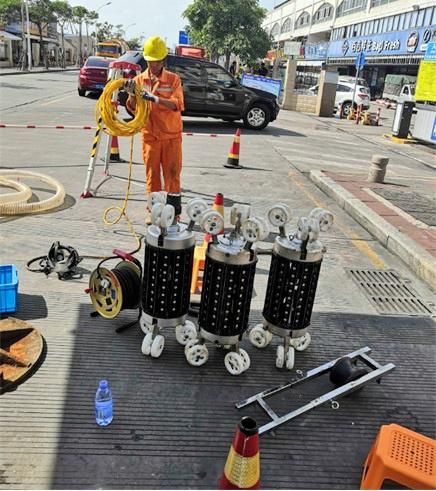

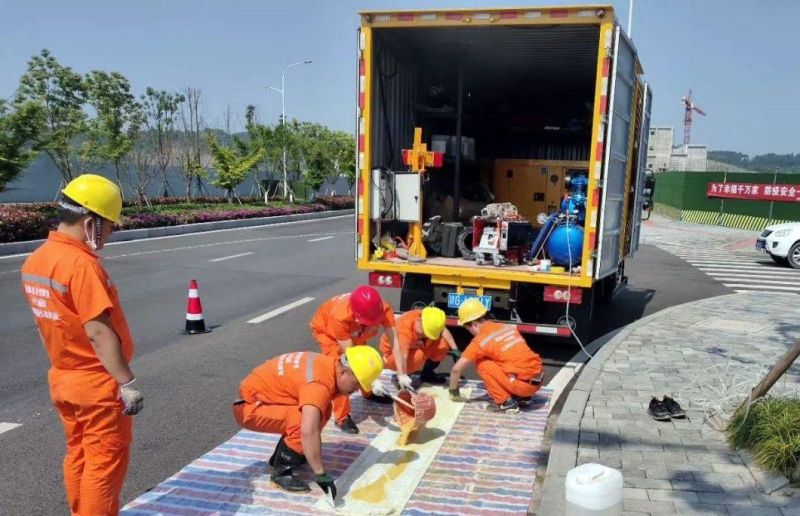

CLW UV Light Curing Repair System is composed of a mobile control system, a transmission cable, a UV lamp holder, a high-definition lens and auxiliary tools. It mainly suitable for non-excavation repair projects of municipal pipe network, repair pipe diameter DN200-DN1600. Small size, light weight, can work with external generator; at the same time, it can be separated from the vehicle for operation in narrow streets.

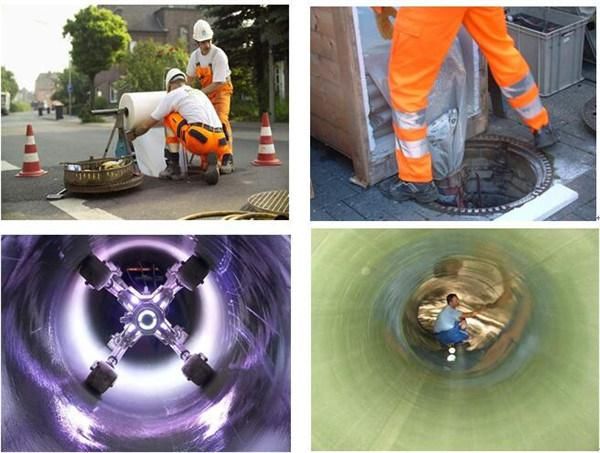

Full Lining UV LED Curing System advantage:
1. Portability: Integrated design, high integration, power supply by generator only;
2. High efficiency: short curing time and high speed;
3. Energy saving: LED curing, low energy consumption and no pollution;
4.Stability: digital transmission, real-time monitoring of repair status, automatic stabilization
