Sy412c-8r 12 Cubic Meters Mobile Cement Concrete Mixer Truck Price

Cruking Engineering Equipment (Xiamen) Co., Ltd.
  • After-sales Service：Field Installation, Commissioning and Training,Vid
  • Warranty：1 Year
  • Certification：ISO9000, CE
  • Transmission Type：Automatic
  • Emission Standard：Euro 4
  • Displacement：2.5

Base Info

  • Model NO.：SY412C-8R
  • Payload：20T
  • Fuel：Diesel
  • Drive Mode：6x4
  • Maximum Horsepower：300-400hp
  • Condition：New
  • Agitating Volume：12 Cbm
  • Model：Sy412c-8
  • Rated Loading Capacity：12m Cbm
  • Weight：30985 Kg
  • Steering Position：LHD or Rhd
  • Wheel Base：1700+3200+1350mm
  • Tire：11.00r20
  • Engine Model：P11c-Uj
  • Engine Power：259 Kw
  • Transport Package：Nude Package
  • Specification：10300*2490*3985mm
  • Trademark：cruking
  • Origin：China
  • HS Code：8705400000
  • Production Capacity：30000 Unit,Year

Description

Rudder DirectionLHD/RHDCurb Weight(kg)16500GVW(kg)30985Dimension (L×H×W)(mm)10300×2490×3985Wheel Base(mm)1700+3200+1350Min. Ground Clearance(mm)≥240Min. Turning Diameter(m)22Fuel Consumption(L/100km)≤45Braking Distance(V0=30km/h)(m)≤10(Full load)
≤9(Empty load)Bore(mm)×Stroke(mm)φ122×150Displacement(L)10.52Rated Power/Rev Speed(kW/rpm)259/2100Max. Torque/Rev Speed(N.m/rpm)1460/1100EmissionsEuro Capacity(m3)12Feeding Speed(m3 /min)≥8Discharge Speed(m3 /min)≥5Discharge Residual Rate≤0.5%Slump(mm)50~210Water Tank Capacity(L)800Water Pressure(MPa)0.35~0.38ReducerPMB7.1Hydraulic PumpGermany· A10VGT090MotorGermany· A2FMT090Engine ModelP11C-UJGear-boxFast 9JS150TA-BFront Axle(t)2×6.5Intermediate, Rear Axle(t)2×13CabCB318Tyre11.00R20BrakeFront: φ400mm × 150mm
Rear: φ410mm × 220mmFuel Tank Capacity(L)300

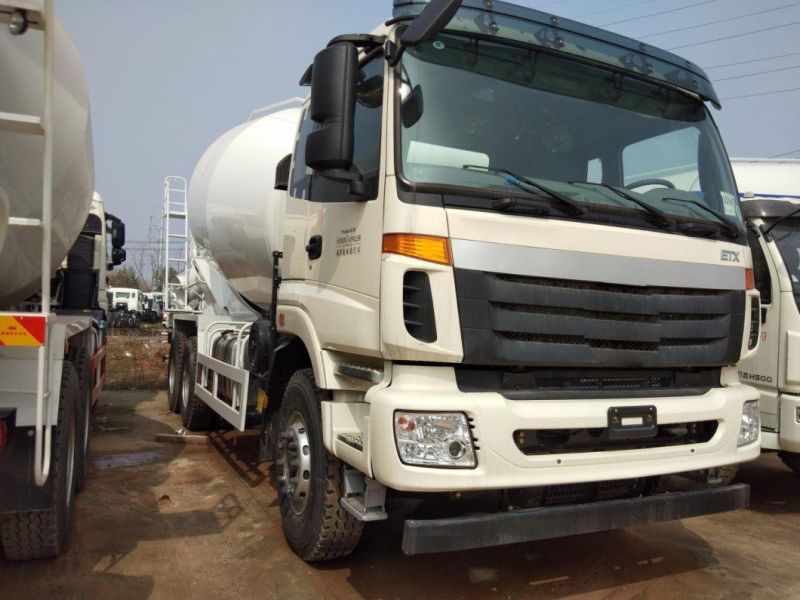

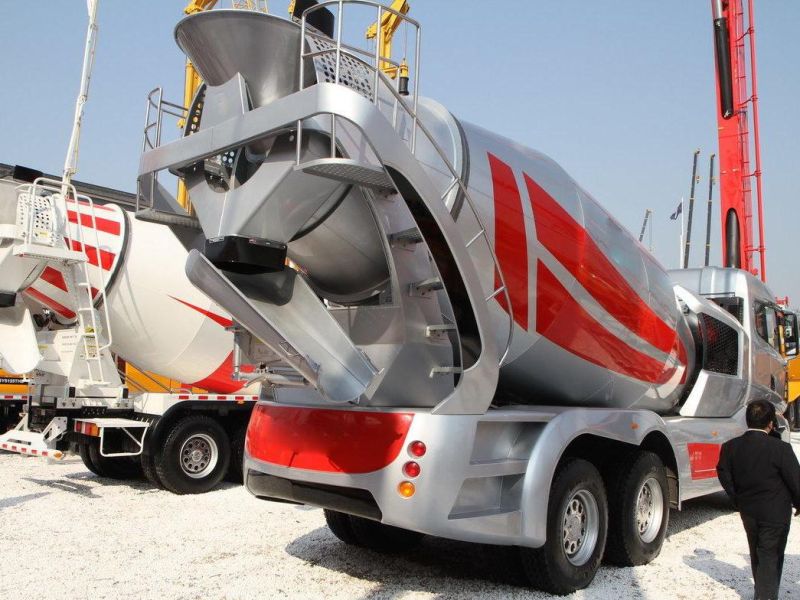

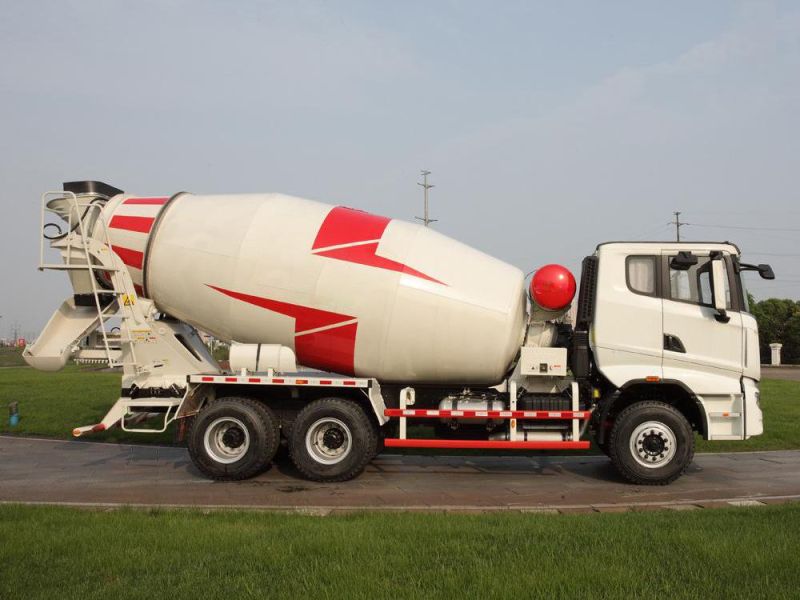

Details Images
Sy412c-8r 12 Cubic Meters Mobile Cement Concrete Mixer Truck Price


Sy412c-8r 12 Cubic Meters Mobile Cement Concrete Mixer Truck Price
Sy412c-8r 12 Cubic Meters Mobile Cement Concrete Mixer Truck PriceSy412c-8r 12 Cubic Meters Mobile Cement Concrete Mixer Truck Price
