• Model NO.：CLW8911XWC
• Drive Wheel：4x2
• Hoesrpower：150-250hp
• Condition：New
• Drive Model：Right Hand Drive & Left Hand Drive
• Gearbox：5 Forwards & 1 Reverse
• Fuel Type：Diesel
• Cleaning Tank Material：4mm Carbon Steel
• Sewage Tank Material：6mm Carbon Steel
• Cleaning Tank Volume：1m3
• Sewage Tank Volume：4m3
• Vacuum Pump：Chinese Brand, Italy Brand or Other Imported Brand
• High Pressure Pipe：60m
• Sewage Suction Pipe：8m
• Effective Suction Range：>8m
• Suction Time：<5min
• Guarantee：1 Year
• Delivery Time：30 Working Days
• Logo and Painting：Can Be Customized
• Transport Package：Naked, RO-RO, Bulk
• Specification：6300*2300*2850mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：87059099
• Production Capacity：500 Units,Month

Superstructure Parameter

Characteristic

1. Sewage tank volume 5000 liter.
2. Sewage tank material is carbon steel,thickness 6mm.
3. Sewage suction pipe 1pcs, length 7m.
4. Hydraulic lifting sewage tank,rear cover can open.
5. Equipped with PTO.
6. Equipped with vacuum pump.

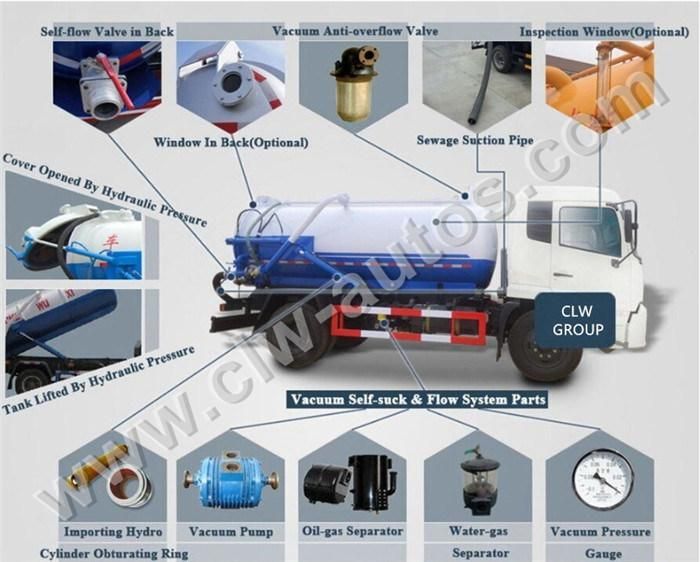

7. Equipped with oil water separator, overflow valve,looking sewage window, self flow exit,hand washing device.

Performance

(1) Vertical suction ≥ 7m.
(2) Pumping speed : 45L/s.
(3) Intake and exhaust diameter: 50mm.
(4) Full tank pumping time ≤ 5min.
(5) Sewage tank emptying time ≤ 4min.

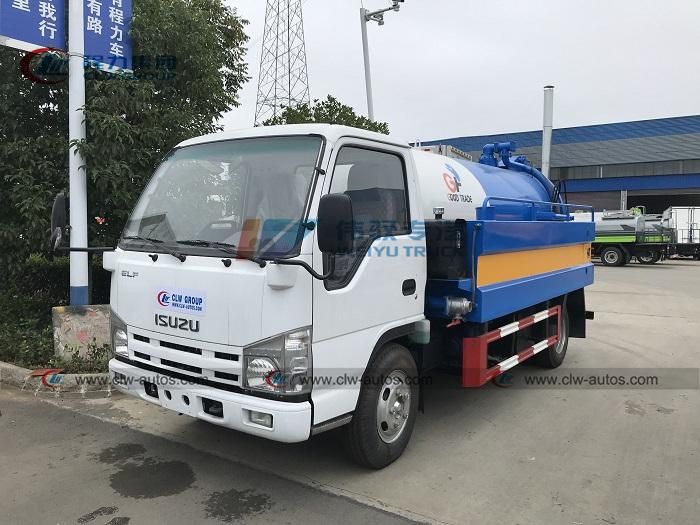

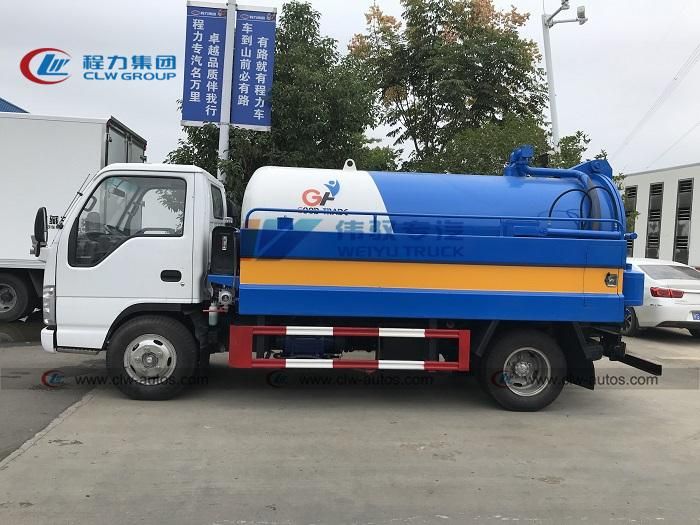

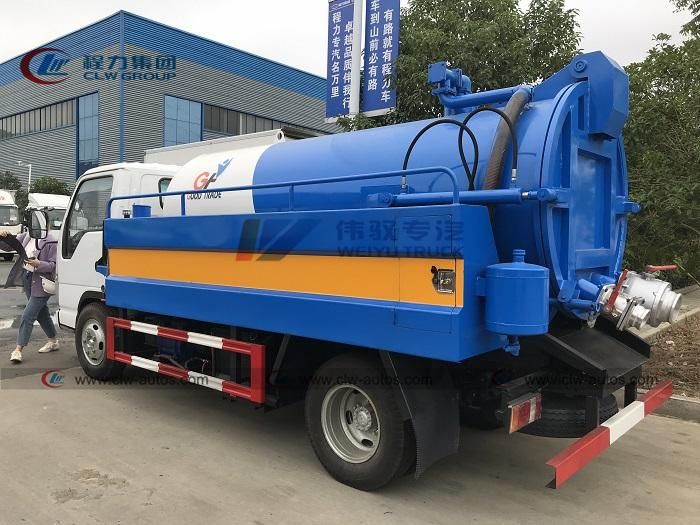

Reference Photos

Certificates

Our Overseas Exhibition

After-sales Service

1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units.
