• Model NO.：FFT
• Transmission Type：Manual
• Payload：20T
• Fuel：Diesel
• Drive Wheel：4×2
• Horsepower：150-250hp
• Condition：New
• Features：Foam and Water Tank Mix Equipped
• Transport Package：Container Load
• Specification：10ton Capacity
• Trademark：DAXLIFTER
• Origin：China
• HS Code：8428909090
• Production Capacity：4000

Basic Info.

Model NO. FFT Transmission Type Manual Payload 20T Fuel Diesel Drive Wheel 4×2 Horsepower 150-250hp Condition New Features Foam and Water Tank Mix Equipped Transport Package Container Load Specification 10ton Capacity Trademark DAXLIFTER Origin China HS Code 8428909090 Production Capacity 4000

Product Description

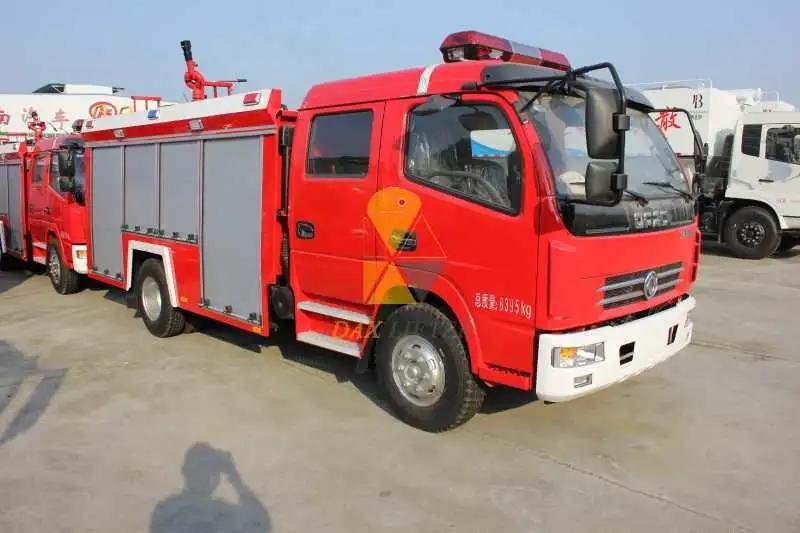

China Special Working Truck Foam Fire Fighting Trucks
OEM&ODM SERVICE Description:
Our water tank fire truck is modified with Dongfeng EQ1041DJ3BDC chassis.

The vehicle is composed of two parts: the firefighter's passenger compartment and the body.
The passenger compartment is an original double row and can seat 2+3 people. The car has an inner tank structure. The front of the body is a water tank + equipment box, and the rear is a pump. room. The liquid-carrying tank is made of high-quality carbon steel, connected to the chassis, carrying water 600kg, equipped with CB10/20 type fire pump, rated flow 20L/S, and mounted on the roof of the PS20W vehicle fire fighting machine produced by Chengdu West Fire Machinery Co., Ltd. gun.

The biggest feature of this car is its flexibility, good handling and easy maintenance. It can be widely used in public security fire brigades, factories and mining enterprises, communities, docks and other places to fight general material fires.

The fire-fighting performance of the entire vehicle meets the requirements of GB7956-2014; the chassis has passed the national compulsory product certification; the engine emissions meet the requirements of the fifth stage limit of GB17691-2005 (National V standard); the entire vehicle has passed the inspection of the National Fire Equipment Quality Supervision and Inspection Center  and has been included in the new automobile product announcement of the Ministry of Industry and Information Technology, and CCCF is in the process of applying.
Technical Data

Overall Size	5290×1980×2610mm
Curb Weight	4340kg
Capacity	600kg Water
Max Speed	90km/h
Rated Flow of Fire Pump	30L/s  1.0MPa
Rated Flow of Fire Monitor	Foam:24L/s 1.0MPa
Fire Monitor Range	Foam≥40m  Water≥50m
Rate of Power	65/4.36=14.9
Approach Angle/Depature Angel	21°/14°

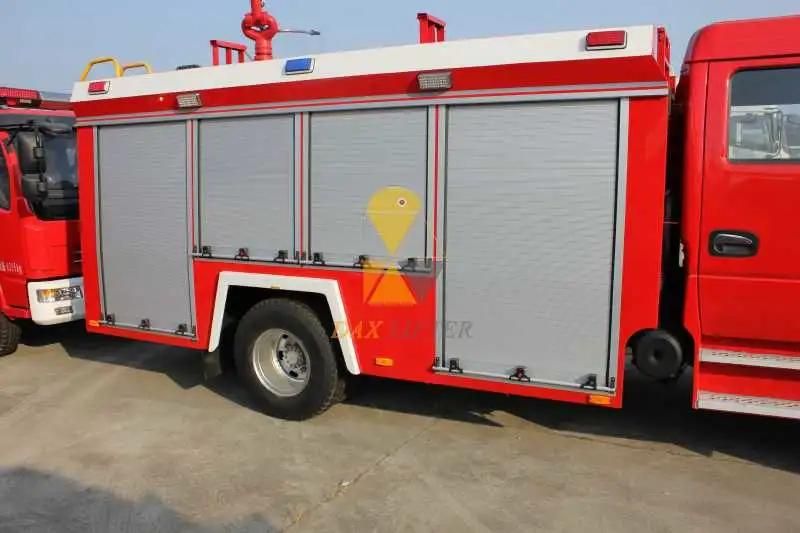

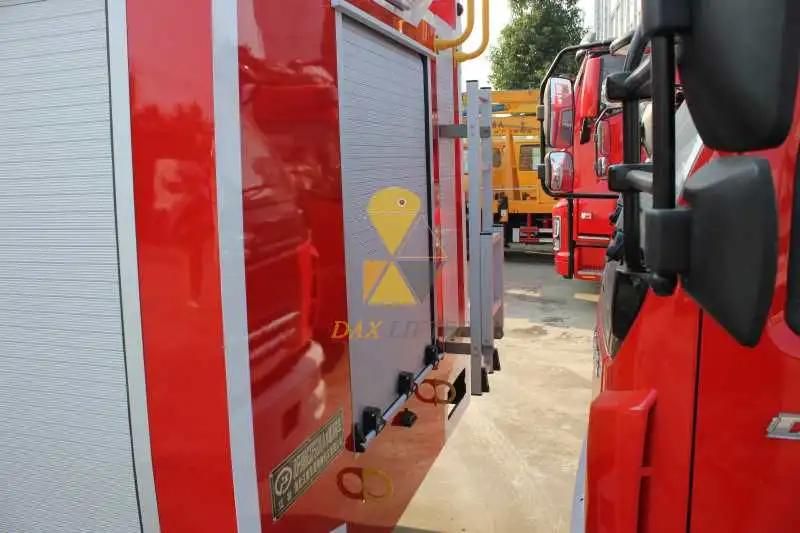

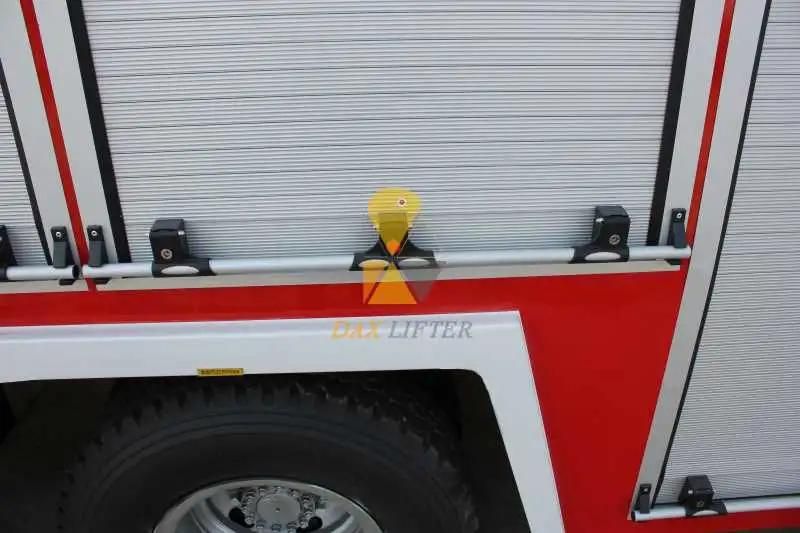

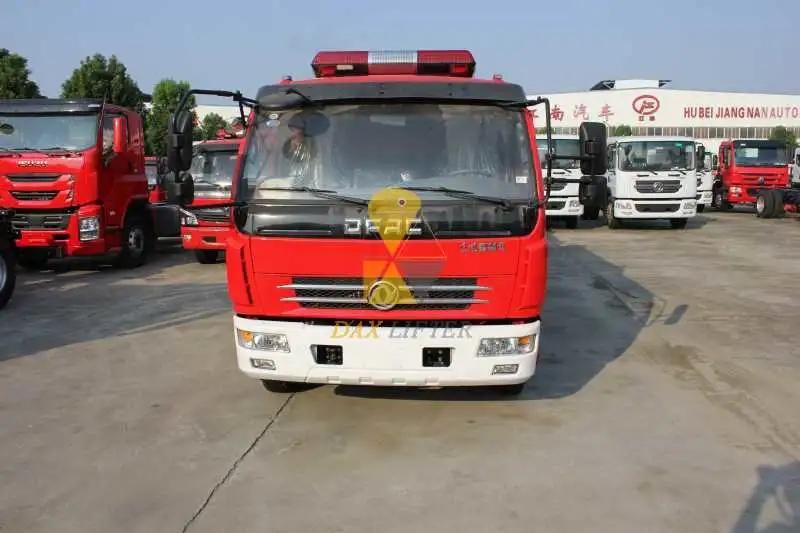

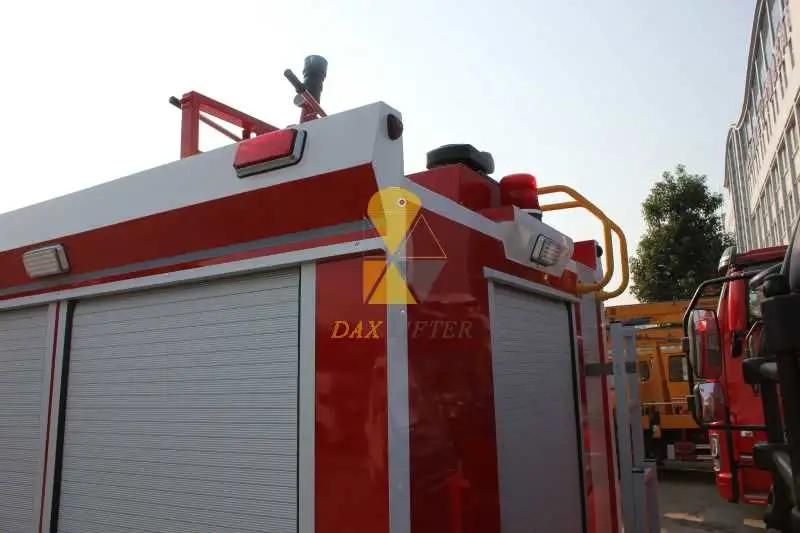

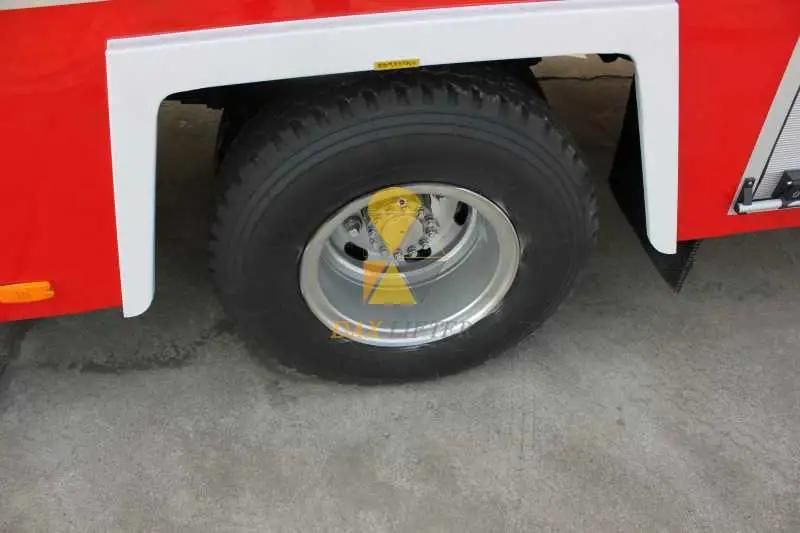

Details Photo Show
