• Model NO.：CLW5179XWC
• Drive Wheel：4x2
• Hoesrpower：150-250hp
• Condition：New
• Chassis Brand：Dongfeng, Foton, Sinotruk HOWO, Isuzu, etc.
• Drive Model：Right Hand Drive & Left Hand Drive
• Wheelbase：4500 mm
• Engine Power：190HP
• Tank Capacity：10cbm 10m3 10cubic Meter 10000liters 10t 12t
• Tank Material：6mm Carbon Steel
• Vacuum Pump：Famous International Brand
• Sewage Suction Pipe：8m
• Suction Time：No More Than 5mins
• Effective Suction：No Less Than 8m
• Logo and Pattern：as Customer′s Request
• Warranty：1 Year
• Transport Package：Bulk Ship, RO-RO, Container
• Specification：10cbm, 11cbm, 12cbm, 10ton 11ton 12ton
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

DongfengCabone and a half row, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension, adjustable driver's seat, air conditioning system, electric windows, central lock.  Traction typeRight-hand driveDrive type4*2Wheelbase4500mmTire specification10.00R20Tire quantity6+1 unitsEngineEngine modelCUMMINS 190HPEmission levelEuro 2or3Displacement/output5900ml/140kwHorse power190hpGear boxModelDongfengNumber of gears6 forward gears& 1 reverse, synchronizedSuspensionFront8/8- Leaf spring with shock absorberRear9/9-Leaf springFuel tankerTypeSteel fuel tank, with lockable capTankerCapacity10,000cbmPumpTypePipeSuction and discharge pipeSpecial functionSuction time ≤ 3mins,
effective suction range ≥ 9,
Max vacuum degree ≤ 15 Kpa,
dump angle ≥ 45Standard configurationEquipped with Inspect window,discharge valve,cleaning  apparatus,5 meter long suction pipe,oil-water separators,  overflow valve,etc.
Cylinder vacuum tank can be lifted hydraulically to
40-45 degree. Rear door can be opened and closed hydraulically.Optional configurationTanker material: stainless steel.
Anti-rust coating inside tankPaintingThe color and Logo can be customized.

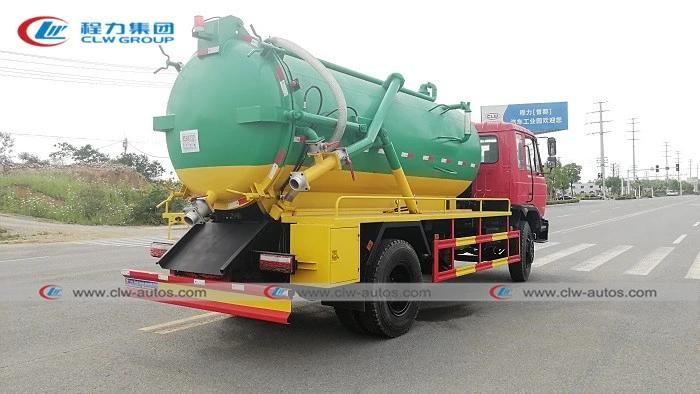

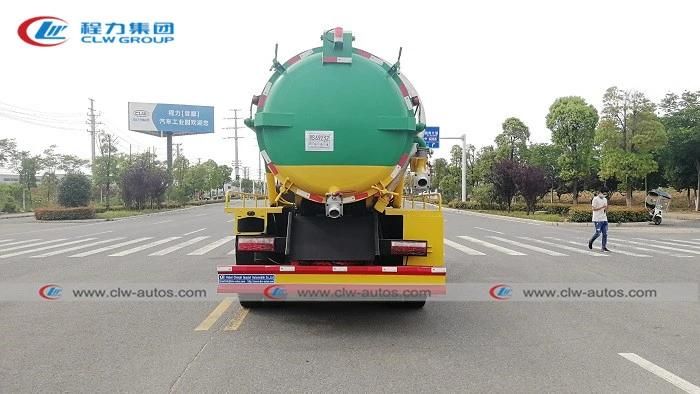

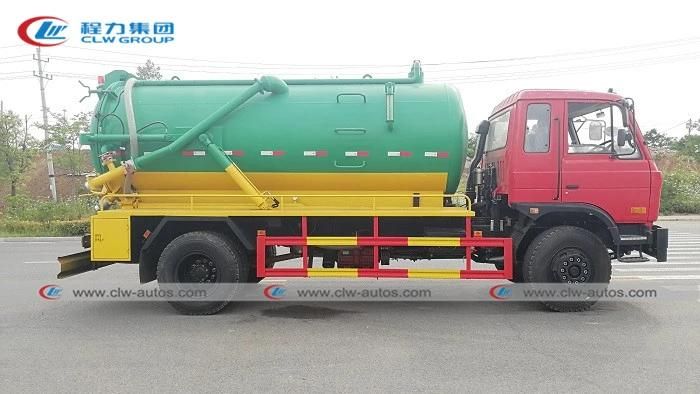

Reference Photos

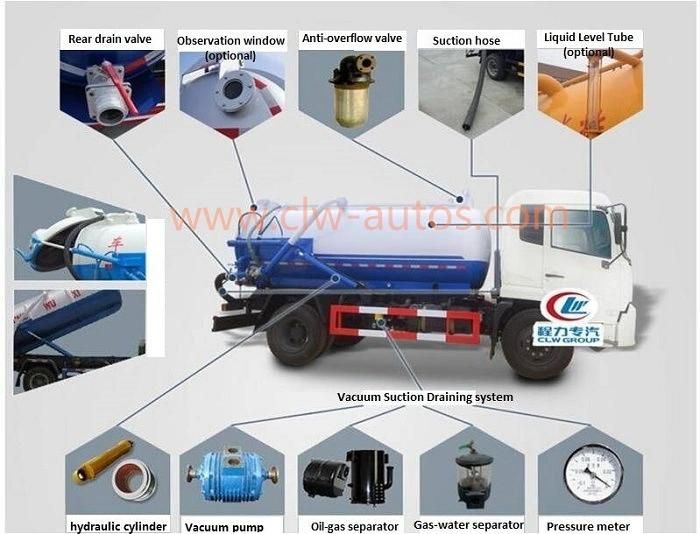

Main Structure

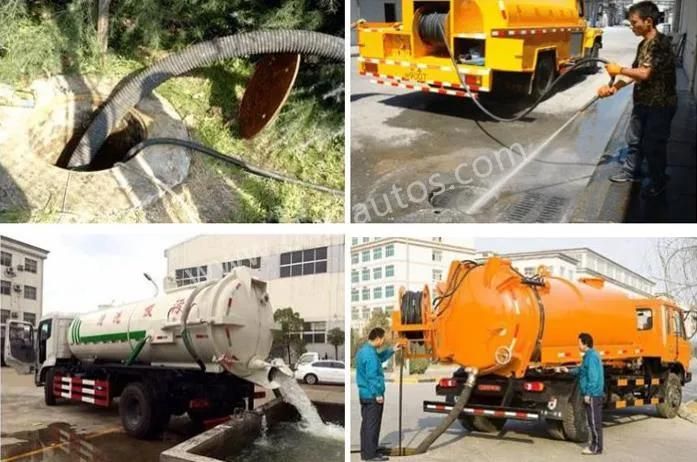

Working Scene


Company Introduction


Certificates



Our Overseas Exhibition


Contact Flora for more details:
