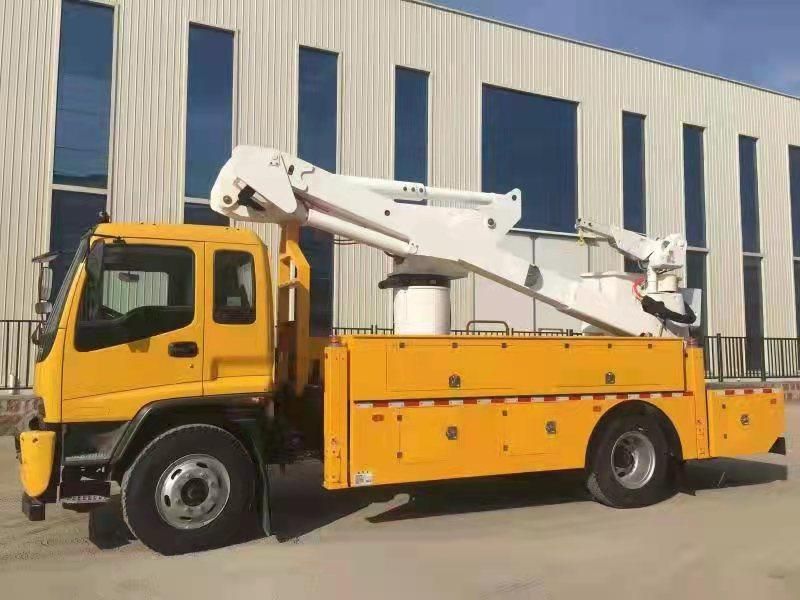

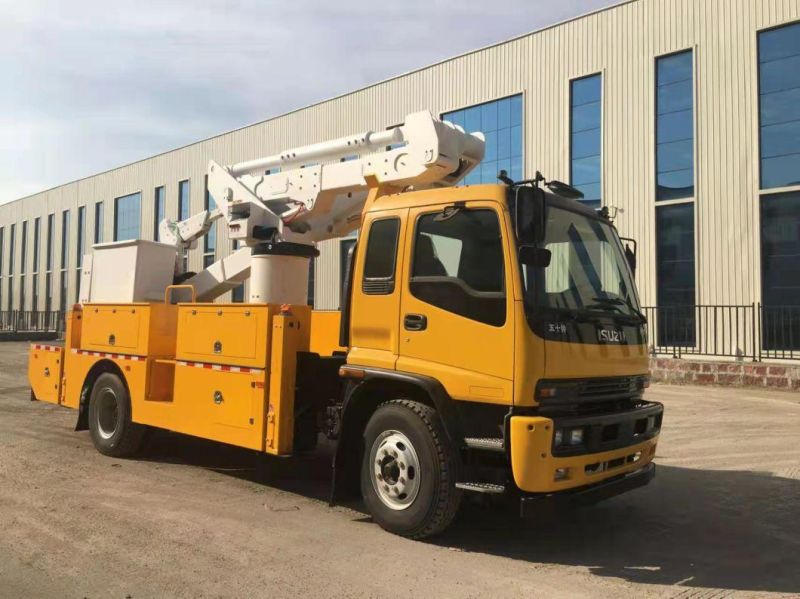

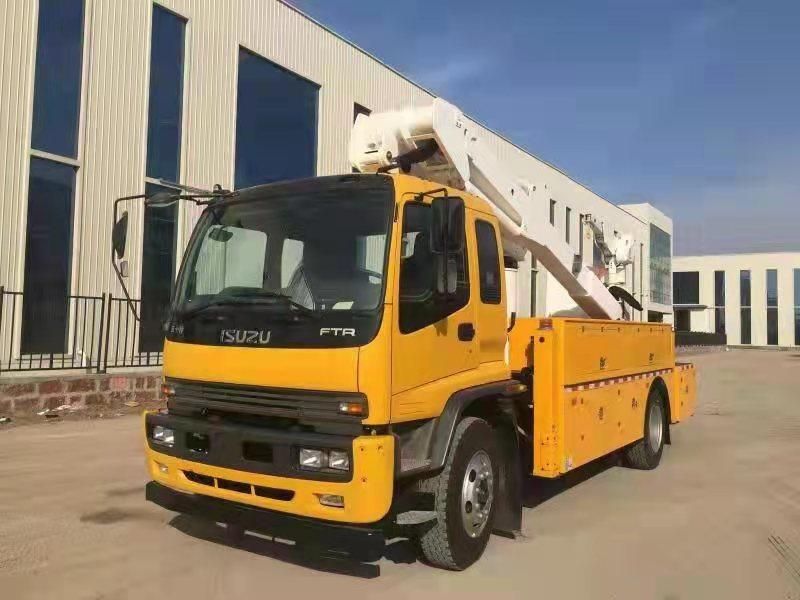

High Quality 17m Insulated Boom Aerial Work Vehicle Cherry Picker
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Type：H
- Certification：ISO9000
- Emission Standard：Euro 4
- Hoesrpower：251-350hp
Base Info
- Model NO.：QHQ5120JGKSD
- Payload：20T
- Fuel：Diesel
- Transmission Type：Manual
- Drive Wheel：4x2
- Condition：New
- Maximum Operating Range：11.2m
- Transport Package：Nude
- Specification：17.3m
- Trademark：SINOMADA
- Origin：China
- HS Code：8429521200
- Production Capacity：500,Month
Description
Product DescriptionMaximum working height 17.3m Maximum operating range 11.2m Insulation length of the upper arm (All shrinkage) 1.03m Insulation length of the upper arm (All extended) 4.61m Insulation length of lower arm 0.61m Pressure resistance level ≤35kV Telescopic boom elevation angle '-19°~+85° Lower arm elevation angle 0°~+85° Upper with the rotation angle 360° Rotation angle of working bucket 180°(±90°) Working pressure 15.8MPa Hydraulic pressure system Open Power supply PTO Maximum load of working bucket 272kg 272kg Maximum load of work bucket (When installing small crane) 227kg 227kg Maximum load of small crane (Optional) 454kg Chassis FTR 4HK1-TC50 engine,205 hp, MLD six-speed transmission, AC, steering assist, central control lock, electric doors and windows, front axle 6.3 tons, rear axle 13 tons, with ABS. Standard 1000R20 tires. Air brake. 4500 Wheelbase, Model |:
