• Payload：30T
• Fuel：Diesel
• Drive Mode：6x4
• Maximum Horsepower：300-400hp
• Condition：New
• Engine：Hino P11c-Va, Euro 4
• Transmission：Fuller Rt-11509c
• Rear Axle：Hino
• Tire：11.00r20
• Cab：with Two Seats, 1 Bed
• Mixer Body：10 Cubic
• Transport Package：Nude Packing
• Specification：ISO9000, CCC, TS16949, CE
• Trademark：HINO
• Origin：Jiangsu, China
• HS Code：8708706000
• Production Capacity：1000PCS,Month

Basic Info.

Payload 30T Fuel Diesel Drive Mode 6x4 Maximum Horsepower 300-400hp Condition New Engine Hino P11c-Va, Euro 4 Transmission Fuller Rt-11509c Rear Axle Hino Tire 11.00r20 Cab with Two Seats, 1 Bed Mixer Body 10 Cubic Transport Package Nude Packing Specification ISO9000, CCC, TS16949, CE Trademark HINO Origin Jiangsu, China HS Code 8708706000 Production Capacity 1000PCS/Month

Product Description

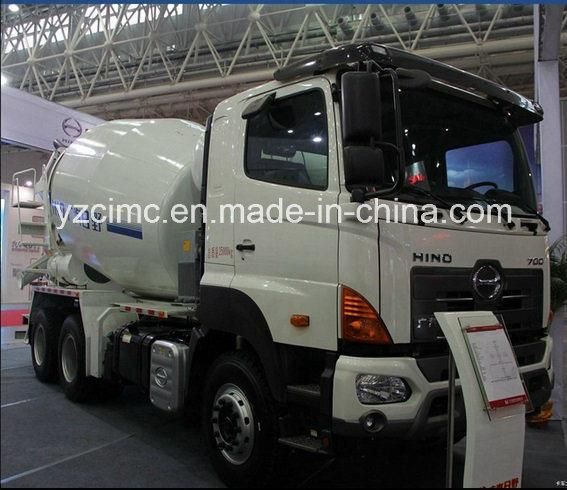

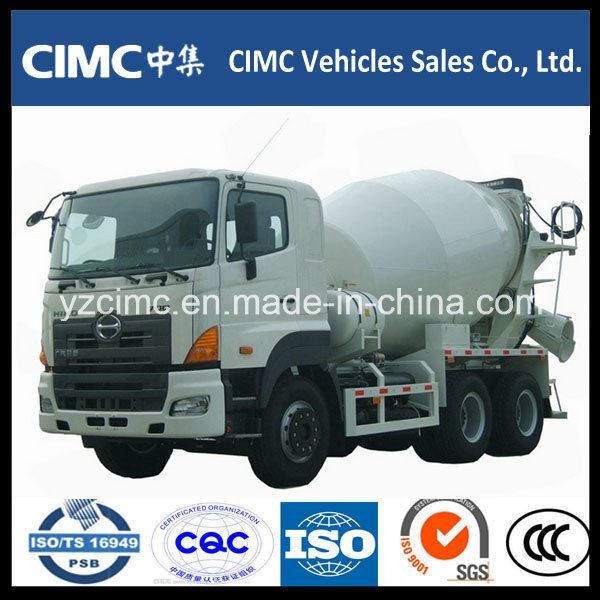

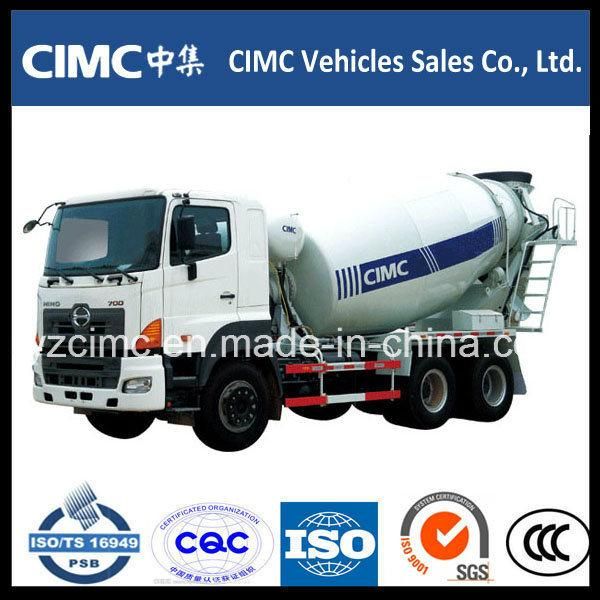

Hino Concrete Mixer Truck 6X4
Model YC5250GJBFS2PM/HINO FS2PMUM-GQW Driving type: 6*4 left hand driving

Engine Make: HINO P11C-VA
Diesel 4-stroke direct injection diesel engine, Electronic control, SCR
Engine model: P11C-VA , Euro IV emission standard
6-cylinder in-line, turbo-charging and intercooling
Maximum output: 350 hp (259 Kw) at 2100 rpm
Maximum torque: 1483 Nm at 1100-1300r/min
Number of cylinder: 6
Displacement: 10.52 L
Bore: 122 mm
Stroke: 150 mm
Specific fuel consumption: 195 g/kWh
Engine oil filling quantity: 19 l
Cooling system filling quantity (long-term filling): 40 l
Thermostat with 71ºC opening begin
Single cylinder air compressor
Rigid fan

Transmission:FULLER RT-11509C, 9 forwards and 1 reverse, 1490N.m, 2600rpm
Ratio: 12.42   8.26  6.08  4.53   3.36  2.47   1.81   1.35  1   12.99 (R)

Propeller Shaft Double universal joint propeller shaft with gear-shaped coupling flange

Front Axle Steering with doubleT-cross section beam

Rear Axle HINO, Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles .
Ratio:4.625

Chassis Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members, Manganese steel
Front suspension:10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:13 leaf semi-elliptic springs, bogie spring and stabilizer
Aluminium fuel tank
Brakes Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake

Wheels & Tyres Tire: 11.00R20, all steel radial tyre

Driver's Cab Standard cab, with two seats, 1 bed, 2-arm windscreen wiper system with three speeds,
damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts,  adjustable steering wheel, air horn,
24V USB, air conditioner , with transverse stabilizer,with 4-point support fully floating suspension + shock absorber, Air suspension dirver seats

Dimensions  mm Wheel base 3640+1410
Front wheel track 2060
Rear wheel track 1855
Front overhang  1410
Rear overhang 2480
Approach angle (0) 23
Departure angle (0) 14
Overall length 9000
Overall width 2500
Overall height  3900
Weight  kg Dead weight 14000
Maximum Loading Capacity 25000
Gross vehicle weight(GVW) 39000
Front axle loading capacity 7500
Rear axle loading capacity 16000*2
Performance  Maximum driving speed  (km/h) 90
Maximum gradeability (%) 36
Minimum ground clearance (mm) 250
Fuel consumption (l/100 km) 35
Parameter of the drum Agitating Volume m³ 8
Tank Thickness mm 5
Charge speed  m³/min ≥3
Discharge speed m³/min ≥2
Surplus % ≤0.5
Drum speed rpm 0~16
Drum inclination  º 15º
Drive system Decelerator Germany
Pump All imported from Eaton(America)
Hydraulic motor All imported from Eaton(America)
Water supply system Water tank volume L/Form of 400/Electric water pump
