• Model NO.：CLW510LJCP34
• Transmission Type：Manual
• Payload：4tonnes
• Fuel：Diesel
• Drive Wheel：4×2
• Brand：Dongfeng
• Models：Small
• Usage：Hang Barrel Type, Compression Type
• Condition：New
• Chassis Brand：Shacman, Dongfeng, Foton, HOWO,JAC, Jmc
• Hand Driving Type：LHD or Rhd
• Fuel Type：Diesel
• Material：Carbon Steel
• Tank Thickness：4 mm
• Engine：Diesel 156HP
• Campacting Ratio：0.6-0.8 Ton,Cbm
• Loading：Rear Loading
• Operating System：One in The Cabin, One on The Back of The Truck
• User Manual：Yes
• Operating Video：Yes
• Logo：as Per Customer′s Request
• Technical Support：Whenever Needed
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：10CBM, 12CBM, 14CBM
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

eShacman Garbage Compactor TruckOverall Dimension7800×2280×2970 mmGross Vehicle Weight15800 kgCurb Weight4500 kgLoading Weight11800 kgWheel Base4200 mmFront / Rear Axle5800 kg / 10,000kgCabinLeft Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio,Engine Engine horsepower170HP, EURO IIMax Driving Speed90 km/hGear Box6 Forward Gear, 1 Reverse Gear,Tire7.50R16 (6 pieces with one spare)Garbage BinCapacity15CBMMaterial4mm Carbon Steel for Garbage Bin BodyDesignWhole unit with Leakage Proof DesignWays of LoadingRear Loading with optional Bucket Lifting SystemGarbage Compact Ratio1/3 - 1/4Control SystemOne control Panel on the back, One Control system in back of CabinDispensing System1. Equipped with air-tight dustbin, hydraulic system and operating system.2.Automatic loading, compressing and discharging, all handled by 1 person3. Sewage water collection tank to avoid any pollution during handling.4. Large Pressure, Good Leakage Proof, Convenient OperationDependable Security5. Electrical Control Panel for compacting system.6. Cycling time<14~18sRemarks1. Color is optional2. Customized LOGO painting as per customer request

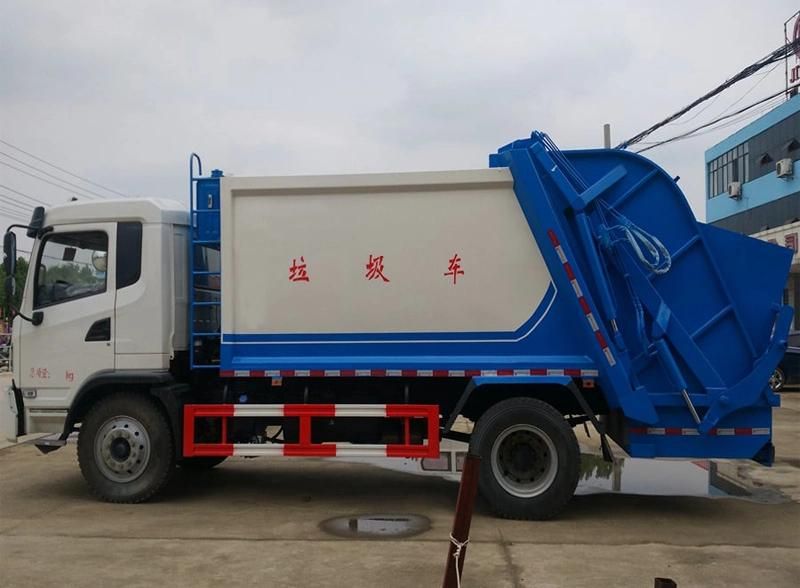

Product Diagram

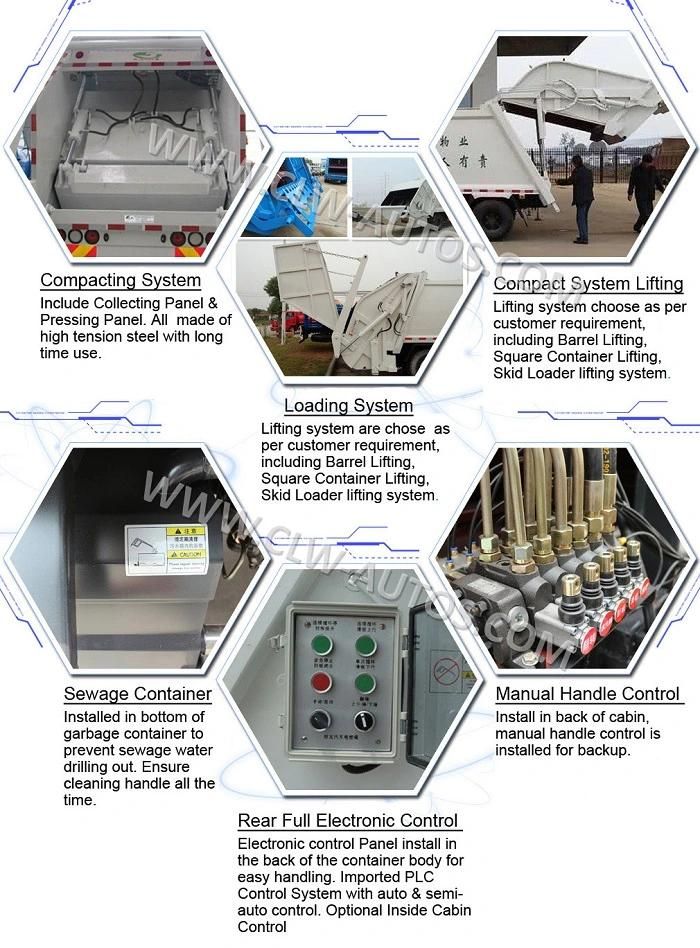

Product Details

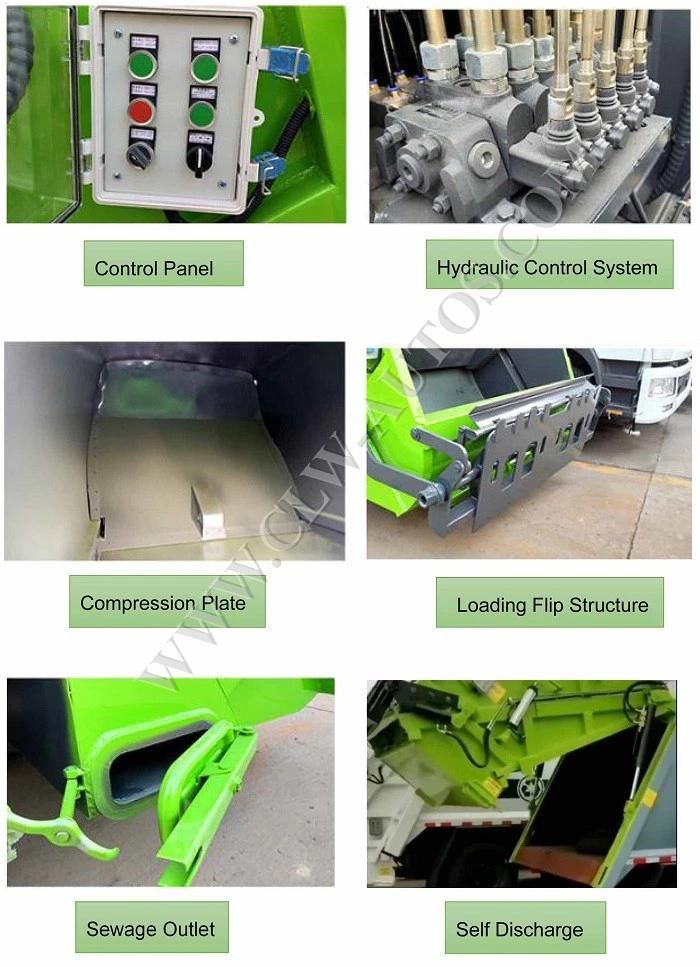

Truck Details

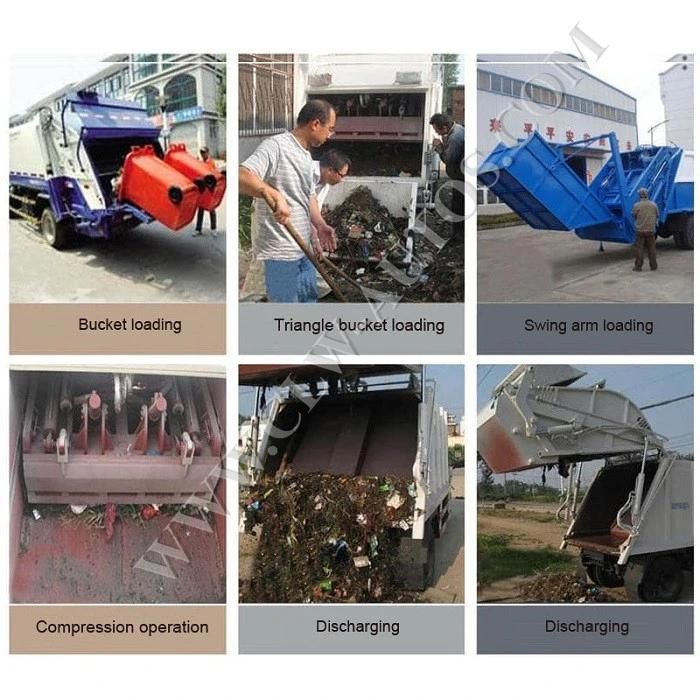

Working Show



Other Special Truck Series



Factory Overview




Overseas Exhibition and Local Support



Customer  Visiting




Contact Eunice for more details
