Specialized Vehicle

Home > Product > Refrigerated Truck

Isuzu 4X2 Light Duty Refrigerated Cargo Box Van Freezer Truck

Chengli Special Automobile Factory
  • Certification：ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
  • Payload：2tons ~ 30tons
  • Emission Standard：Euro 4
  • Transmission Type：Manual
  • Horsepower：150-250hp
  • Fuel：Diesel

Base Info

  • Model NO.：CLWYLJSK34AK
  • Bearing Capacity：Small
  • Car Type：Van
  • Condition：New
  • Product Name：2tons ~ 30tons Refrigerator Truck Freezer Truck
  • Loading Capacity：2 Tons, 4 Tons, 5 Tons 8 Tons 10ton
  • Applications：Transport Freezer Food, Fruit, Beer, Fish, Vege
  • Chassis Brand：DFAC, Sinotruk, Isuzu,Foton, FAW,JAC etc
  • Drive Type：4X2 , 4X4, 6X4 , 8X4
  • Body Material：Strong Fiberglass Inner and Outer Wall
  • Material Type：8cm Middle Polyfoam Insulation
  • Refrigerato Unit Brand：Thermo King, Hanxue, Carrier Brand etc
  • Emission：Euro II Euro III
  • Other Name：Freezer Truck, Refrigerator Truck, Refrigeration
  • Transport Package：Ship by RO-RO , Bulk , Container
  • Specification：7890x2300x3400
  • Trademark：CLW
  • Origin：Hubei, China
  • HS Code：8704223000
  • Production Capacity：35700 Unit, Year

Description

Eletric system 24vUpper-Body  specificationMaterial of van boxIn the middle of Polyurethenefoam, Inner and coating is glass fiberThickness of van box (mm)80mm Polyurethene foamModel of Refrigeration unitKorean ND THERMO brand  Type:DT-150Cooling capacity (w)1960Van box dimension(mm)4000x1800x1850Length of van (m)3~4Capacity of van (m³) 13m³Voltage & Total CurrentDC12V(20A)Power240WCompressorSD-5L09(87cc)/SD-5H09(87cc)RefrigerantR404A 1.2KgEvaporator Dimensions(mm)680×594×174Condenser Dimensions(mm)905×211×420Mini temperature in van (ºC)-18(suitable for transfer food )

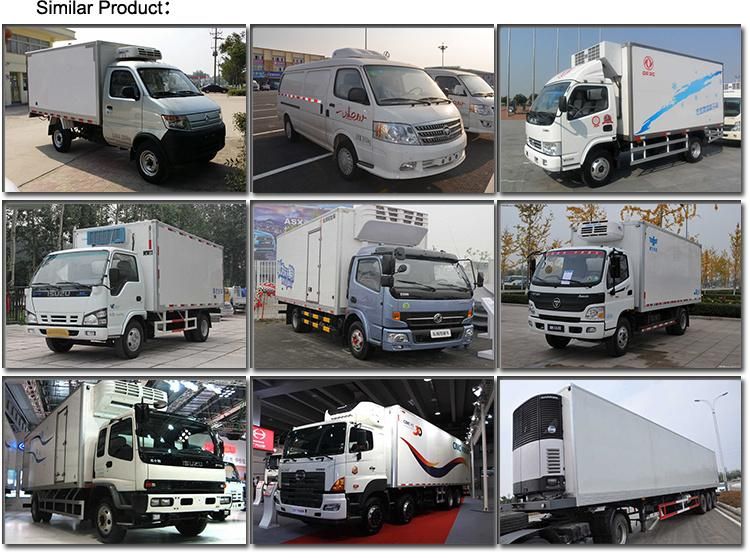

Related Refrigerator Truck:
Isuzu 4X2 Light Duty Refrigerated Cargo Box Van Freezer Truck


Isuzu 4X2 Light Duty Refrigerated Cargo Box Van Freezer Truck

Our Factory:
Isuzu 4X2 Light Duty Refrigerated Cargo Box Van Freezer Truck
For more Refrigerated Freezer Truck information, please feel free to contact me or send an inquiry to me
