• Model NO.：Concrete Mixer Truck
• Drive Mode：8x4
• Maximum Horsepower：>400hp
• Condition：New
• Actual Mixing Capacitytm3：2.5
• Mixing Drum Capacitytm3：3.5
• Angle of Inclinationt0：16
• Rotational Speedtr/Min：0-14
• Mixing Drum Vanes：Two Sets Helical Vanes and Assisted Vanes
• The Slump of Concretetmm：70-260
• Oil Pump：Cbf-32
• Motor Model：BMS-100
• Reduction Box/Speed Ratio：Hj220
• Model：2.5 Cbm Self Loading Pump Truck Concrete Mixers
• Transport Package：Carton Box, Plastic Bagsor as Your Payment
• Specification：CE, SGS
• Trademark：China Coal
• Origin：China
• HS Code：87054000
• Production Capacity：1000 Sets Per Month

UnitParametersActual mixing capacitym32.5Mixing drum capacitym33.5Angle of inclination016Rotational speedr/min0-14Rotational direction(Forward observation from rear)Feed:Clockwise and  discharge:AnticlockwiseMixing drum vanesTwo spiral vanes and auxiliary bladesProductivity4 batches per hourThe slump of concretemm70-260Hydraulic Transmission SystemOil Pump CBF-32Motor model BMS-100Reduction box/speed ratio HJ220Water supply SystemWater supply Bring water agenciesWater tank volumeL450Chassis and Engine ParametersEngine Model  Form Direct injection four stroke water cooled turbocharged diesel engineAir cylinder amount 4DisplacementL4.58Rated powerkw/r/min81/2300Maximum torqueN.m/r/min450/1500-1700Maximum travelling speedkm/h24Minimum turning diameterM8Gradeability%24Tire 9.00-20Driving form 4 wheel drive,4 wheel steeringVehicle equipment qualitykg6250Maximum loading weightKg6500General weight of the carloadkg12750overall dimension(L/W/H)mm6700x2400x3100

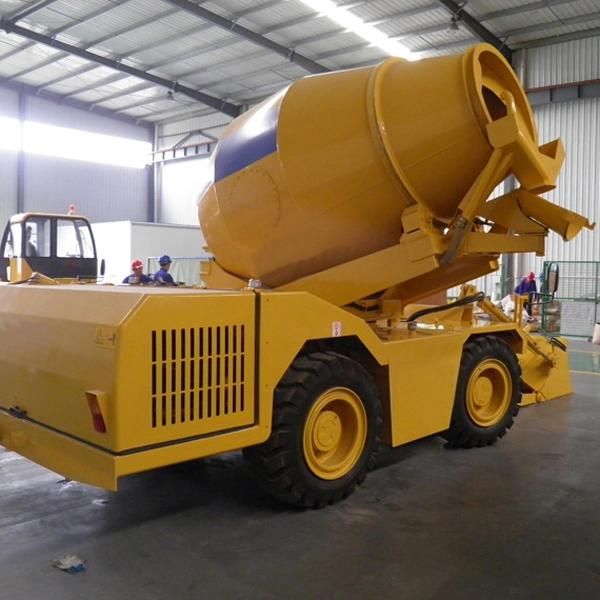

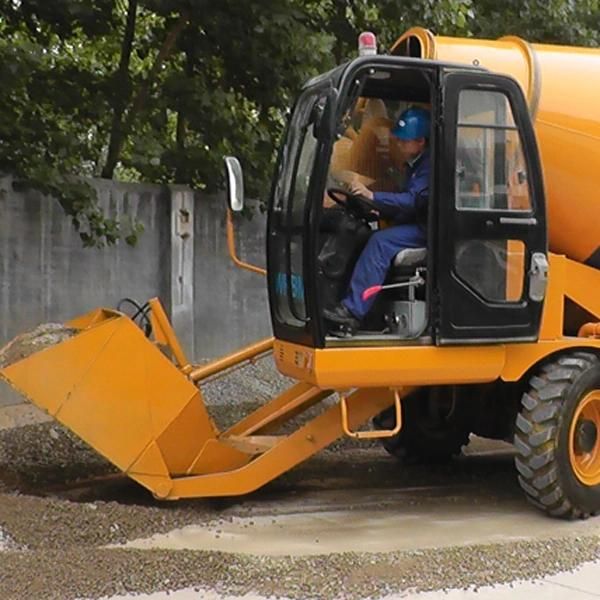

Photos Of 2.5 Cbm Self Loading Pump Truck Concrete Mixers
