• Model NO.：ZZ1257M3847
• Drive Mode：6x4
• Maximum Horsepower：300-400hp
• Condition：New
• Truck Model：Zz1257m3847 (LHD)
• Overall Dimension(Lx W Xh)：9040*2496*3850mm
• Driving Style：6X4 Left Hand Driving
• Loading Weight：25000kg
• Engine Model：Wd615
• Fuel Type：Diesel
• Horse Power：371HP
• Emission：Euro II
• Agitating Capacity：8m3
• Geometric Volume：14.3m3
• Transport Package：Bulk Ship, Container Ship, Roll Roll Ship
• Specification：SGS, CCC, BV, WMI, ISO
• Trademark：SINO TRUK
• Origin：Shandong Province, China
• HS Code：8705400000
• Production Capacity：1000000units,Year

Product Specifications
Engine model
WD615.93C
Engine Power
290HP
Displacement
9726ml
Fuel Type
Diesel
Emission standard
Euro III
Overall dimension
(L*W*H)
8375*2496*3950mm
Wheelbase
3200+1350mm
Minimum turning circle
20
Curb weight(kg)
12300
Max speed(km/h)
90
Fuel tank capacity(L)
300
Fuel type
Diesel
Transmission model
HW15710
Steering system
ZF8098
Front axle
HF9
Rear axle
HC16
Tyre
12.00-20(10+1spare)
Brake system
Service
Dual circuit compressed air brake
Parking
Spring energy, compressed air operating on rear wheels
Auxiliary
Engine exhaust brake
Electrical system
Battery
2X12V/165Ah
Alternator
28V-1500kw
Starter
7.5Kw/24V
Cab
HW76 cab, (one sleeper, with air-condition), all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers.
Geometric Volume
13.5m3
Agitating Capacity
8m3
Drum rotating
14°
Agitator rotaion speed
0-14r/min
Feeding speed
>3.5m3/min
Water Tank Volume
400L
Discharge remain ratio
<0.2%


                                                                          -Packaging & Shipping-

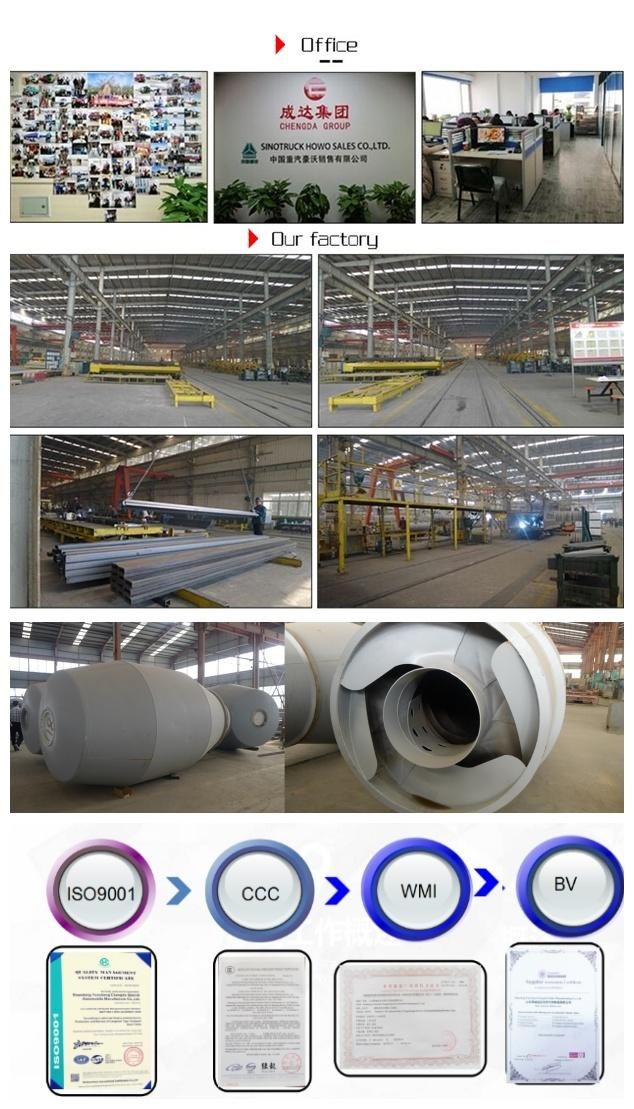

                                                 -Company Information-

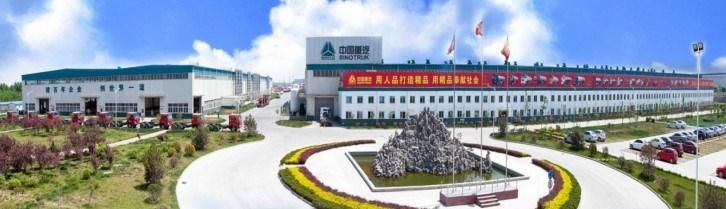

                                              SINOTRUCK HOWO SALES CO.,LTD

SINOTRUCK HOWO SALES CO.,LTD.is located in Jinan city, Shandong Province, P. R. China. It is the cradle and leading production
base of the heavy-duty truck industry in China. It is famous for developing and manufacturing SINOTRUK HOWO tractor trucks, dump
trucks, fuel tanker trucks and concrete mixer truck, water spraying trucks etc.
