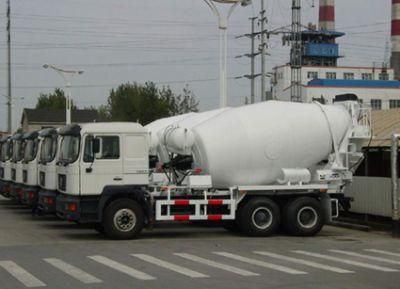

• Model NO.：Mixer
• Drive Mode：6x4
• Maximum Horsepower：300-400hp
• Condition：New
• Power：Diesel
• Truck Type：Dump Truck
• Tire Design：Radial
• Seats：≤5
• Tire Type：Solid Tire
• Transport Package：Bulk
• Specification：CE CCC
• Trademark：Beiben
• Origin：China
• HS Code：23475678
• Production Capacity：50000unit,year

STEYER, MAN, BENZ design platform.   INTERNATIONAL QUALITY STANDARD
 Cabin
 air deflector,air-condition ,single or double  sleeper, USB application,
electric window lifter,GPRS management system.   MAN/STEYER cabin
 Drive  type
 Left hand / right hand,   4x2,6x2,6x4,8x4,6x6.
 Engine : WEICHA I(WP series ,WD series)  CUMMINS series:
 Type
 Diesel 4-stroke direct injection engine,
6-cylinder in line with water cooling, turbo-charging& inter cooling.
 Number of cylinder
 Inline six-cylinder
 BOSCH oil pump
 Displacement
 5.762L, 11.596L

 Emission
 Euro  2,3,4

 Max torque (kg.m/rpm)
 1 070NM-2000NM@1400-1600rpm
 Cl u tch
 Type
 φ 430 diaphragm construction
 Single-plate dry cluth,mechanically operating with air assisted
 Gear box ,Transmission
 Model
  FAST FULLER(recommendation), ZF 8098,
 Type
 9,10,12,16 speeds      AS (  Automatic Synchronizer )
 Gear box
 Mechanical form , Remote control device
 Front  axle
 Type
 STYER / HANDE,
 Permissble load
 Kg /axle
 65 00 kg,7500kg
 Rear  driving axle
 Model
 STYER / HANDE driving axle
 Type
 Pressed axle housing,single/double reduction with planetary wheel reduction.
 Permissble load
 Kg /axle
 1 3000kg,16 000 kg
 Track
 1800/1860
 Transmission  ratio
 4.42  4.80  5.73  6.72  7.49  8.40  9.94
 Tyre  :

   Bias/Radial TYRE  315/80R22.5 / 12.00R20
 Braking sytstem
 Brake

 ABS,ASR
 Service brake
 Dual circuit pneumatic brake
 Parking brake
 Spring energy,compressed air operating on rear wheels
 Hanging
 Type
 FR/RR
 Spring plate,Lug/Multi-leaf spring
 Electric equipment
 Operating voltage
 24v,negative grounded
 Battery voltage/capacity
 12v/135A,165A
 Turning technology
 ZF8098  hydraulic pressure steering system
 Oil Tank :                       38 0L -1000L
 Dimension of King pin(5th wheel):  50(2''),90(3.5'').
 Other option:  PTO, more than 20 colors' surface, strengthen leaf spring.mainly as your requests.
 DimensionUnitQY50K-IIOverall lengthmm13750Overall widthmm2800Overall heightmm3520Total weight in travelkg41000Front axle loadkg15000Rear axle loadkg26000Engine model
 WD615.334(domestic III)Max. travel speedkm/h80Min. turning diameterm24Min. ground clearancemm291Approach angle°17Departure angle°11Max. grade ability%40Fuel consumption for 100kmL45Max. rated total lifting capacityt50Min. rated working radiusm3Turning radius at turntable tailm3.482Max. lifting torquekN.m1764Base boomm11.3Fully extended boomm42.7Fully extended boom+ jibm57.7Longitudinal outrigger spanm5.91Lateral outrigger spanm6.9Boom luffing times88Boom full extension times180Max. swing speedr/min≥2.0Max. speed of main winch (single rope) (no load)m/min≥110Max. speed of aux. winch (single rope) (no load)m/min≥110
