• Model NO.：ZZ1069VDJEA-FA
• Bearing Capacity：Large
• Car Type：Van
• Condition：New
• Van Material：Fiber Steel Double Deck
• Thickness of Insulation Material：8cm
• After-Sale Service：One Year or 100000km
• Configuration：Can Be Changed as Required
• Color：as You Request
• Transport Package：Nude Packing After Painted Wax
• Specification：standard size
• Trademark：SINOTRUK HOWO
• Origin：China
• HS Code：8704223000
• Production Capacity：5000PCS,Month

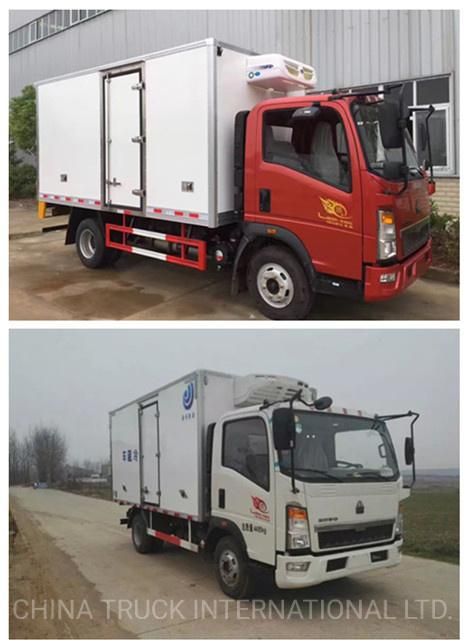

Specification of 10ton howo 120hp 4*2 LHD refrigerated truckDescription 10ton howo 120hp 4*2 LHD refrigerated truckDrive Model4*2, Left Hand DriveCabInside & outside3 person,ordinary seat,general paintRear mirrorleft/right frame rear view mirror
 (four mirror type)Vehicle Main DimensionsDimensions(L x W x H)mm6995*2350*3500Wheel base (mm)3800Axle load(front /rear)(ton)2.7 /7.2Suspension9/12+9BFuel tank120L iron tankMax. driving speed(km/h)95EngineModelCY4102BZLQMAX Power(HP)120Displacement(L)3.856Maximum output power88kWFuelDieselEngine formVertical in-line, water-cooled, four-stroke, supercharged and intercooledCylinder Number4Engine size963.1*693*820.8mmCylinder x stroke(mm)102*118Engine net weight350kgMaximum torque(N.m)392Rated speed2800rpmMaximum torque speed1400-1800rpmCompression ratio17:1Ignition order1-3-4-2Emission standardEuro 3AccessoriesAir dryer, engine noise reduction board, electric flameoutVan bodyMaterial of boxGlass fiber reinforced plasticsThermal insulationPolyurethane foam,8cm thicknessDimension4700*2150*2050mmDoorRear door openRefrigeration unit brandDongin (Korea Brand) DT-150STemperature-18ºC-0ºC AdjustableFeatures1.Strong Fiberglass Inner and Outer Wall, with 8cm Middle Polyfoam Insulation.
2.Dongin Refrigeration unit, lowest Cooling Temperature negative 18 centi-degree.
3.Equipped with Ventilation slot
2.Other Refrigerated Truck types3.Our AdvantagesThis refrigerated truck is a new truck, the color can be set according to your requirements, if you want a used car, we can provide you with the best quality second-hand truck of the same type.

(1)Competitive Factory Price and Excellent Quality
(2)More than 20 years' experience as a manufacturer
(3)Products Quality Certification SGS CCC ISO
(4)Perfect after-sale service
(5)Customized products available with us
(6)Export to more than 90 countries and regions

4.Our factory and company


5.Warranty
(1) One year quality guarantee or within 100000km, which comes the first.
(2) Other spare part could be supplied by OEM at cost prices.
(3) Regularly callback to know the vehicle's working status.
(4) The overseas engineers are always ready to deal with unexpected needs.

6.Package&Shipping


6.FAQ

Q1: I don't want this configuration

A: The configuration can be changed according to your needs.

Q2: Minimum order quantity?

A: MOQ is 1 unit.

Q3: Production period?

A: (Truck & trailer) Within 30 days since the moment we got your down payment.   (Parts) Within 7 days since the moment we got your down payment.

Q4: Payment term?

A: (Truck & trailer) 30% T/T as deposit, the balance should be paid before delivery. or L/C.   (Parts) 100% T/T should be paid before delivery.

Q5: Shipping?

A: (Truck & trailer)  by container or RoRo/Bulk shipment. (South America, Middle East, Africa, Oceania etc. )  by road or railway. (Russia, Mongolia, Kazakhstan, Uzbekistan, Vietnam, Laos etc. )  (Parts)  by international courier service, such as DHL, TNT, UPS, or Fedex. The goods above $1000 can be shipped by sea.

Q6: Can you supply some quick-wear truck or semi trailer parts?

A: Yes, we can supply truck and semi trailer parts as your request, such as oil filter, fuel filter, air filter, traction, traction pin, balance beam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads, brake pan, bearings etc.

We sincerely hope to cooperate with you to expand market in your country!
If you have any questions you can contact us!
Welcome to our factory have a visit!
