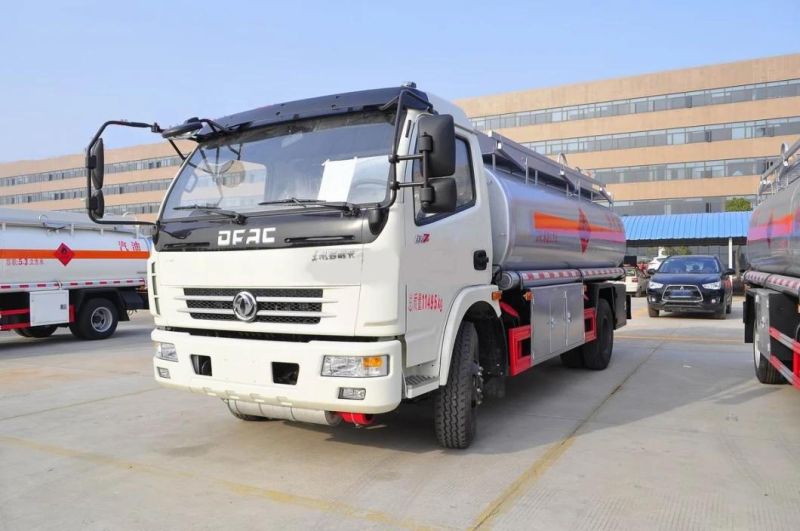

Truck | Drive mode | 4×2 |
Chassis | DFL1120B |
Engine | Model | Cummins170 30 |
Type | 136/2500 |
Power/Displacement(Kw/ml) | 4500 |
Type of fuel | Diesel |
Tyre | Size | 9.00-20 |
Dimensions | Overall dimension (mm) | 8600×2500×2830 |
Wheel base (mm) | 4700 |
Front/Rear tread(mm) | 1880/1860 |
Performance | Max. speed(Km/h) | 90 |
App./Dep. angel (°) | 20/11 |
Max. gradability (%) | 30 |
Min.turning diameter(m) | 19 |
Min.ground clearance(mm) | 240 |
Mass | Payload (Kg) | 5930 |
Curb weight(Kg) | 5880 |
G.V.W (Kg) | 12005 |

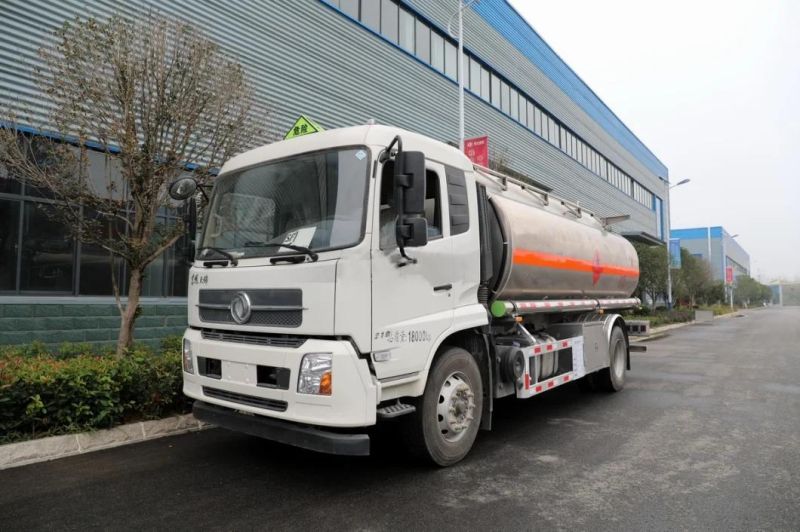

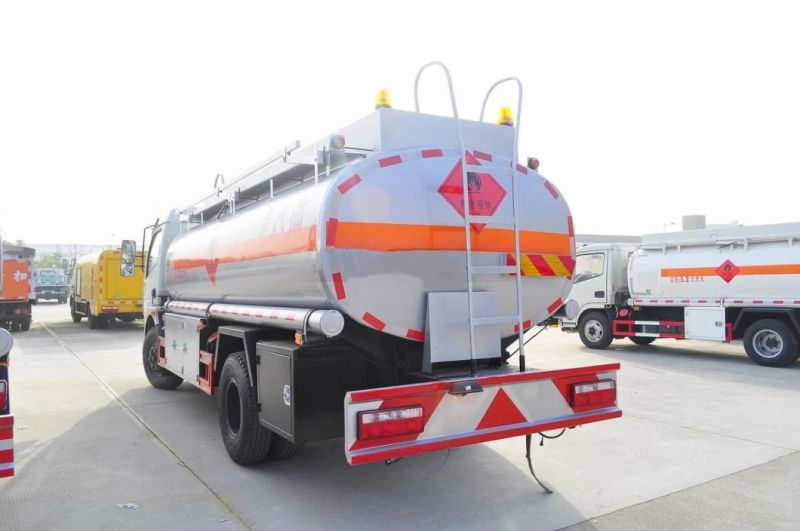

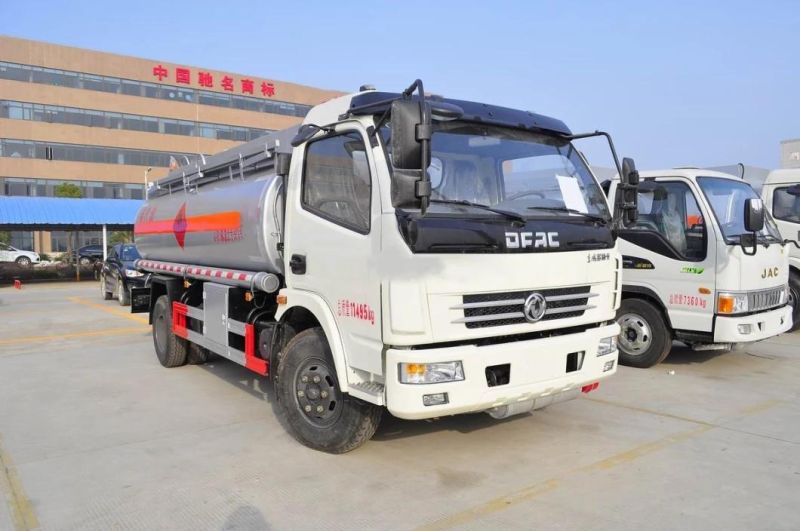

Special functions | Overall dimension of tank (Length*Macro axis*Minor axis) (mm) | 7000×2250×1220 |
Effective Volume(m³) | 15 |
Tansport Medium | all kinds of oils, chemical liquids |
Material of tank | carbon steel/stainless |
It has the functions of oil absorption, oil pumping and etc. The tax control computor tanker, 15m oil reel, self-zeroing flow meter and oil gun are optional. |
