• Model NO.：JDF5071TQZ
• Brand：Dongfeng
• Condition：New
• Number of Axle：2
• Engine Displacement：3856
• Number of Tire：6
• Wheelbase：3800
• Axle Loading(Front/Rear)：3090,4400
• Rear Tread：1640, 1586
• Number of Steel Spring Leaf (Front/Rear)：11,9+7, 8,10+7
• Chassis Model：EQ1070tj9ad3
• Engine Model：Cy4102-C3f
• Max Speed：95km,H
• G.V.W：7490kgs
• Overall Dimension (mm)：7420*2320*2540
• Transport Package：Container
• Specification：95HP
• Trademark：Dongfeng
• Origin：China
• HS Code：87042100
• Production Capacity：500 Unit Per Month

Basic Info.

Model NO. JDF5071TQZ Brand Dongfeng Condition New Number of Axle 2 Engine Displacement 3856 Number of Tire 6 Wheelbase 3800 Axle Loading(Front/Rear) 3090/4400 Rear Tread 1640, 1586 Number of Steel Spring Leaf (Front/Rear) 11/9+7, 8/10+7 Chassis Model EQ1070tj9ad3 Engine Model Cy4102-C3f Max Speed 95km/H G.V.W 7490kgs Overall Dimension (mm) 7420*2320*2540 Transport Package Container Specification 95HP Trademark Dongfeng Origin China HS Code 87042100 Production Capacity 500 Unit Per Month

Product Description

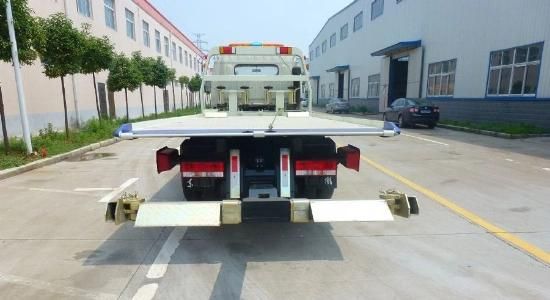

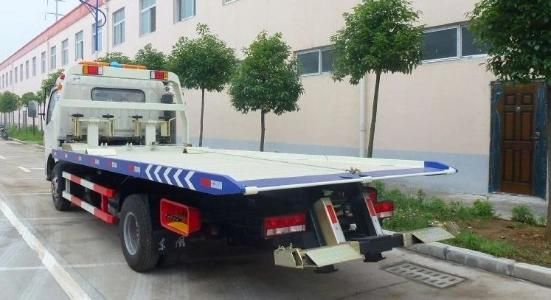

Dongfeng Road Wrecker towing Two cars
 Special function


performance Rated tow lifting weight(kg):          1040 ;
stretch travel range of tow arm(mm):                 1180
maximum effective length of tow arm(mm):       1300
maximum traction speed(km/h):                          40
Specification of flat board Dimension of flat board(Length*width)(mm):5240*2100
Minimum gradient of flat board(°):                       10
work travel range of flat board(mm):                 2680
Maximum load weight of flat board(kg):            3000
The specification of the winch qty(piece):          1
rated towing weight(kg):                                    3000
the length of steel wire rope(m):                        21
the speed of winch rope(m/min):                         8

VEHICLE MODLE                       JDF5071TQZ
OVERALL DIMENSION(mm)  7420×2320×2540
GVW(Kg)                                                7490
approach/depar ture angle               20/12
Curb weihgt(Kg)                                   5495
Overhang(front /rear)(mm)          1180/2440
Max speed(km/h)                                   95
Chassis model                            EQ1070TJ9AD3
Available engine                         Diesel Engine CY4102-C3F
Engine maker                              Dongfeng Chaoyang
Engine displacement(cc)        3856
Fuel type                                 Diesel
Emission                                       Euro 23
Number of axle                               2
Number of tire                                 6
wheelbase                                      3800
Tire size                                        8.25-16,7.50-16,8.25R16,7.50R16
Axle load(front/rear)                 3090/4400
Front tread                                   1835,1750
Number of steel spring leaf(front/rear)   11/9+7,8/10+7
Rear tread                                 1640,1586

Delivery                                30days after prepayment
Payment term                            T/T
Shipping term                           FOB ,CIF

After-sale service
12 months(calculating from the date the vehicle arrives at the destination port) or 30,000 kilometers, whichever comes first.
