Specialized Vehicle

Wheel Type No Railway Flat Bed Industrial Transfer Trolley (KPX)

Jinan Moral International Co., Ltd.
  • Fuel:Battery
  • Certification:CE
  • Emission Standard:No pollution
  • Condition:New
  • Platform Size:5000*2000mm,customized
  • Load Capacity:10T,20T,30T,customized

Base Info

  • Model NO.:KPX
  • Speed:20--30m,min
  • Power:2.2kw
  • Drive:Battery
  • Overload:Protection over current relay
  • Controls:Control box&button&remote
  • Wheels:6 pieces
  • Speeder:1 piece
  • Warranty:5 Years
  • Transport Package:Standard Exporting Packing
  • Specification:CE
  • Trademark:Moral
  • Origin:Jinan, Shangdong, China
  • HS Code:842890
  • Production Capacity:50, 000PCS,Year

Description

Basic Info.

Model NO. KPX Speed 20--30m/min Power 2.2kw Drive Battery Overload Protection over current relay Controls Control box&button&remote Wheels 6 pieces Speeder 1 piece Warranty 5 Years Transport Package Standard Exporting Packing Specification CE Trademark Moral Origin Jinan, Shangdong, China HS Code 842890 Production Capacity 50, 000PCS/Year

Product Description

Wheel Type No Railway Flat Bed Industrial Transfer Trolley (KPX)

Working principle:

This kind of Rail Transfer Heavy Load Mover is powered by battery in the cart. DC motor and gear
reducer are controlled by DC control system to drive wheels and make the transport carriage start, stop, go forward and backward, speed up and slow down and so on.kpx flat carts can be used both on the
"S" and arc-shaped railways.

 Characters:

(1) KPX series are more safe and flexible.
(2) It has no strict requirement for the construction of the railway
(3) No limit of running distance
(4) Safe and convenient operation for there is no wire outside the car
(5) Adjustable speed


Product description:

1.KPX railway battery flat car is powered by the storage battery. It is a kind of transport vehicles indoor.The batteries supply electricity to the DC motor through the electrical control system. Then the reducer drives the wheels of the flat carts start, stop, go forward and backward, and the speed can be adjusted at the same time. The professional charger can give electricity to the battery when the battery is no power.

2.KPX series battery railway flat car the DC rechargeable battery. It has many characteristics, such as simple structure, easy operation, carrying capacity and so on. Besides, it can be used in special occasions without power and transport for long distance.

3.This series car can be widely used in machinery factories, warehouses and metallurgical plants as a workshop transport or with the crane transport heavy loads over cross.

4. It mainly includes car frame, brushless DC motor, reducer, wheel, storage battery, charger, etc.It also can be used in the ferry condition and flammable, explosive environment and the hydraulic lifting device can be installed on the flat carts. This kind of heavy duty electric flat car for shipbuilding is suitable to be used in the long running distance transportation and low using frequency


Technical parameter:


Model

KPX-50

Rated Load(t)

50Ton

Table Size(mm)

3600*2000*500

Wheel Base(mm)

2600

Rail Gauge(mm)

1435

Wheel Diameter(mm)

300

Wheel Quantity

4

Ground Clearance(mm)

50

Running Speed(m/min)

0-25

Motor Power

1.6

Battery Capacity(Ah)

160

Battery Voltage(V)

48

Running Time When Full Load

4.8

Running Distance for One Charge(Km)

7.2

Max Wheel Load(KN)

42.6

Reference Weight(t)

4.2

Recommended Rail Model

P18

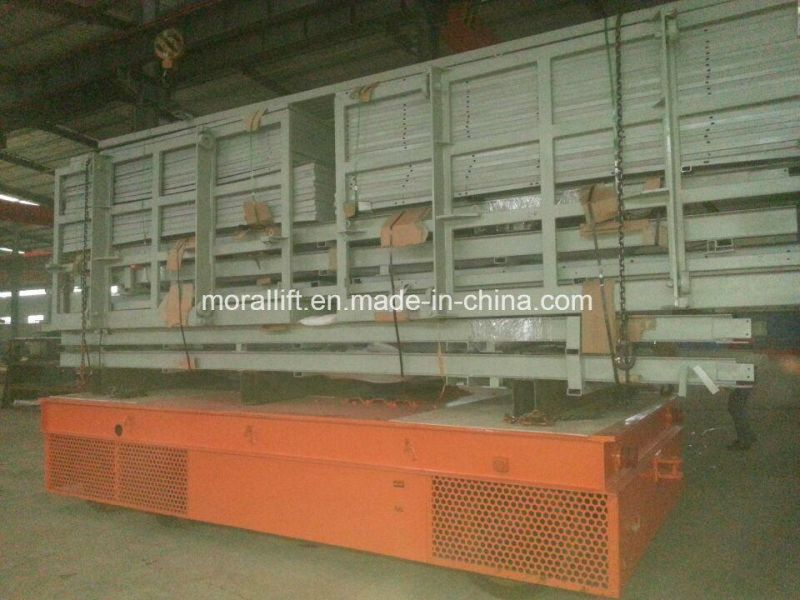

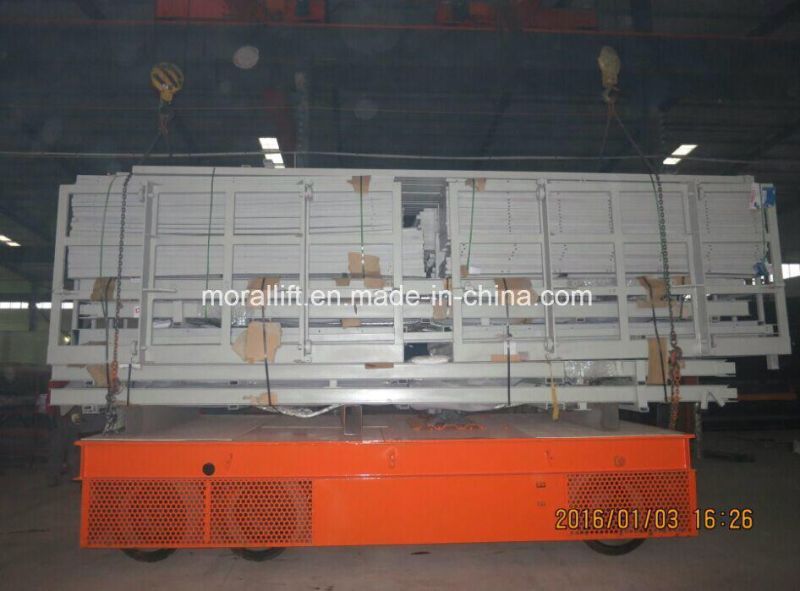

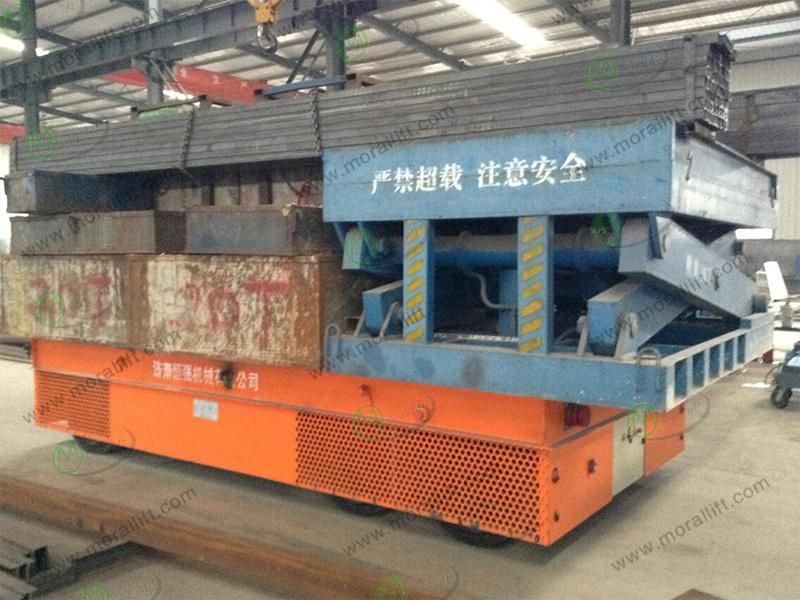

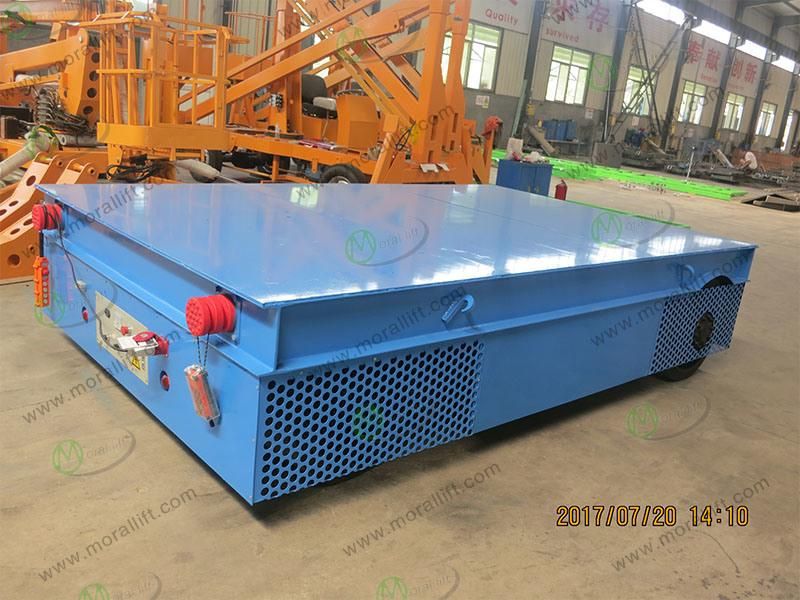

Pictures:

Wheel Type No Railway Flat Bed Industrial Transfer Trolley (KPX)
Wheel Type No Railway Flat Bed Industrial Transfer Trolley (KPX)
Wheel Type No Railway Flat Bed Industrial Transfer Trolley (KPX)
Wheel Type No Railway Flat Bed Industrial Transfer Trolley (KPX)
Wheel Type No Railway Flat Bed Industrial Transfer Trolley (KPX)
Wheel Type No Railway Flat Bed Industrial Transfer Trolley (KPX)
