China Factory Price Dongfeng 4*2 8tons 8t City Wells Cleaning Sewage Fecal 8000liters 8cbm 8m3 Street Vacuum Suction Truck
Hubei Weiyu Special Vehicles Co., Ltd.- Certification：ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
- Emission Standard：Euro 3
- Payload：10ton 11ton 12ton
- Transmission Type：Manual
- Fuel：Diesel
- Tank Volume：10000L
Base Info
- Model NO.：CLW5086XWC
- Drive Wheel：4x2
- Hoesrpower：150-250hp
- Condition：New
- Chassis Brand：Dongfeng, Foton, Sinotruk HOWO, Isuzu, etc.
- Drive Model：Right Hand Drive & Left Hand Drive
- Wheelbase：3950 mm
- Engine Power：170HP
- Tank Capacity：8cbm 8m3 8cubic Meter 8000liters 8t 10t
- Tank Material：6mm Carbon Steel
- Vacuum Pump：Famous International Brand
- Sewage Suction Pipe：8m
- Suction Time：No More Than 5mins
- Effective Suction：No Less Than 8m
- Logo and Pattern：as Customer′s Request
- Warranty：1 Year
- Transport Package：Bulk Ship, RO-RO, Container
- Specification：10cbm, 11cbm, 12cbm, 10ton 11ton 12ton
- Trademark：CLW
- Origin：Suizhou, China
- HS Code：8705909090
- Production Capacity：500 Unit,Month
Description
Vehicle DescriptionOverall dimensions Tanker Capacity 8000L Material 6mm thickness, high quality carbon steel Structure Welding, vacuum tank, Cylindrical Pump Type Double vacuum pump Flux 68(L/S) Rating speed 800~1000(r/min) Shaft power 5(kw) Features Low speed, low fuel consumption, low noise, high vacuum, high efficiency Manufacture Hangzhou WEILONG Pump Co., Ltd. Pipe Suction and discharge pipe Special function Suction time ≤ 5mins,
effective suction range ≥ 8,
Max vacuum degree ≤ 15 Kpa,
dump angle ≥ 45 Standard configuration Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc.
Cylinder vacuum tank can be lifted hydraulically to
40-45 degree. Rear door can be opened and closed hydraulically. Optional configuration Tanker material: stainless steel.
Vacuum pump : Italy or Spain vacuum pumps.
Anti-rust coating inside tank Chassis model Dongfeng Cab Sleeper cab, forward control type, low roof, new face, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension, adjustable driver's seat, air conditioning system, electric windows, central lock. Traction type LHD or RHD Drive type 4*2 Wheelbase 3950mm Tire specification 9.00-20 Tire quantity 6+1 units Engine Engine model CUMMINS 170HP Emission level Euro 3 or 4 Displacement/output 5900ml/125kw Horse power 170hp Gear box Model Dongfeng Number of gears 6 forward gears& 1 reverse, synchronized Brake system Full air brake system, split pneumatic circuit; parking spring brake acting on rear axles, exhaust brake Axle Front 7T- Elliot type, I beam section Rear 10T*2-Single reduction, ratio 5.143 Suspension Front 8/8- Leaf spring with shock absorber Rear 9/9-Leaf spring Fuel tanker Type Steel fuel tank, with lockable cap Capacity 300L

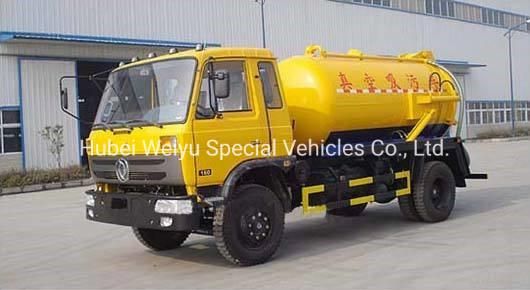

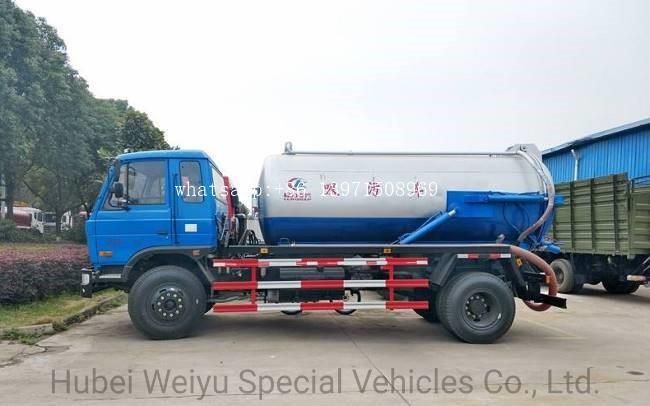

Reference Photos

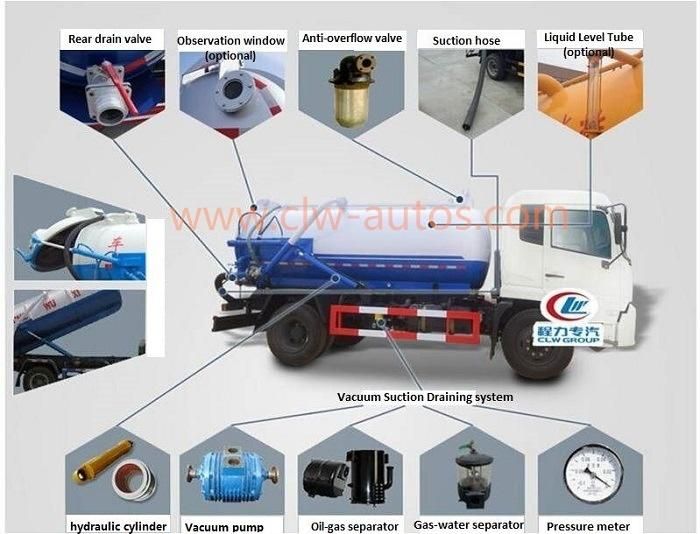

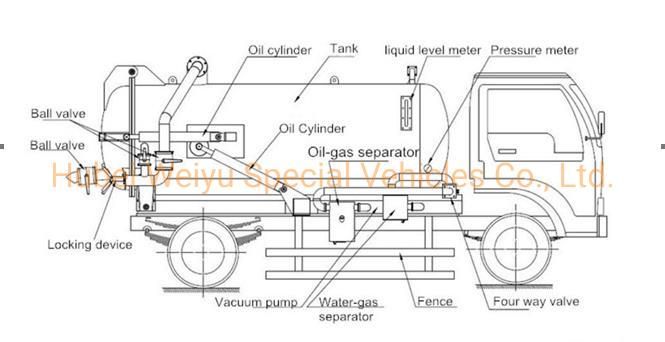

Main Structure

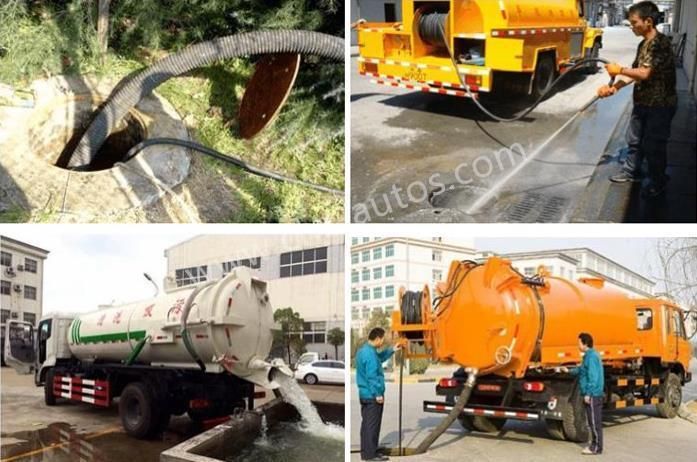

Working Scene
Company Introduction
Certificates
Our Overseas Exhibition
