18m High Altitude Operation Truck Aerial Ladder Platform Truck
Xuzhou Hengxing Jinqiao Machinery Technology Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Type：Self-propelled
- Certification：ISO9000, CE
- Emission Standard：Euro 2
- Hoesrpower：50HP
Base Info
- Model NO.：HXE5040TBAJ6
- Payload：20T
- Fuel：Diesel
- Transmission Type：Automatic
- Drive Wheel：6x4
- Condition：New
- Total Weight：4495kg
- Bucket Rated Weigh：400kg
- Outrigger Lateral Span：F3700,B3830mm
- Front/Rear Suspension：1075,1560mm
- Passengers(Including Driver)：2peopl
- Bucket Max Height：32m
- Maxmium Working Span：13m
- Outrigger Longitudinal Span：4480mm
- Approaching/Departure Angle：20,13 Degree
- Max. Driving Speed：100km,H
- Maximum Gradability：30%
- Truck Chassis：Jmc Jx1041tg26 Chassis
- Bucket Baseplage Dimension：1150X1000mm
- Hoarding Height：380mm
- Bucket Baseplate Extendable Dimension：1950X1400mm
- Specification：6390X2800X3310MM
- Trademark：EVERSTAR
- Origin：China
- Production Capacity：100,Year
Description

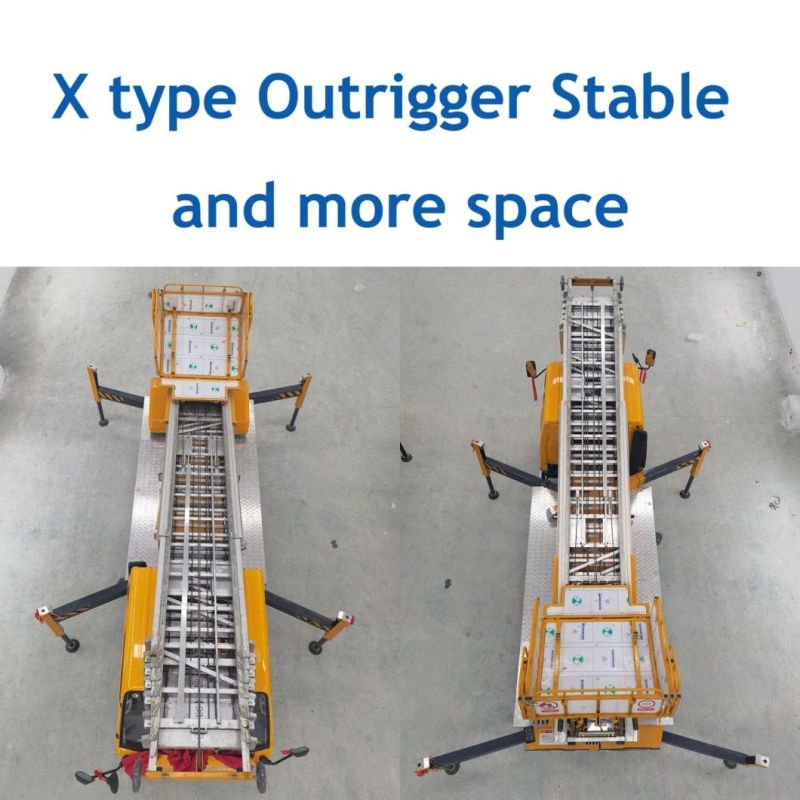

* Optional function HXE5040TBAJ6 Aerial ladder truck Overview Outrigger System
Control panel
