• Model NO.：CLW
• Fuel：Diesel
• Transmission Type：Manual
• Drive Wheel：4x2
• Condition：New
• Truck：Aerial Platform Truck
• Rotate Degree：360 Degree
• Working Platform Allowable Person：2
• Working Height：12m, 13m, 14, 15m, 16m, 17m, 18m
• Driving Type：4X2, 4X4, 6X2, 6X4, 8X4
• Axles Number：2
• Steering Wheel：LHD or Rhd
• Color：White, Green, Red, Optional
• Safety Accessory：Available
• Transport Package：Naked, Waxing and So on
• Specification：ECE ISO GCC CCC ASME ASTM
• Trademark：CLW
• Origin：Hubei, China
• HS Code：8701909000
• Production Capacity：800sets,Month

Code numberCLW5040Drive model4×2ChassisEQ1042Overall Dimension L*W*H mm7400×1980×3100GVW4325 kgCurb weight4000 kgWheel base mm3300Wheel track(front/rear) mm1506/1466Overhang (front/rear) (mm)1032/1968Approach/Departure angle(°)19/111EngineModelCY4102-C3FTypeType      4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-coolingHorse power95 hpOutput volume3856 mlEmission standardEuro IIIMax. speed90 km/hGearbox5 forwards & 1 reverseClutchReinforced diaphragm clutchSteering GearPower steering, hydraulic steering with power assistanceFuel tank (L)120Tire7.00-16 , 7 pieces including one spare tireBrakesService brake: dual circuit compressed air brake
Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brakeEquipmentMax operation height>=14m;
max operation radius>=6m;
max working platform height>=12.5m;
working platform rating loading=250kg;
working platform rating allowable passengers = 2; working platform dimension: 1100*570*1000 mm;
protection dimension:180*50*5mm;
360°turning(left or right), 4 H-shape legs. 1.5 ton crane, Insulating material in the cage., the cage can
be operated both in the air and on the earth.Delivery time30 days after the payment

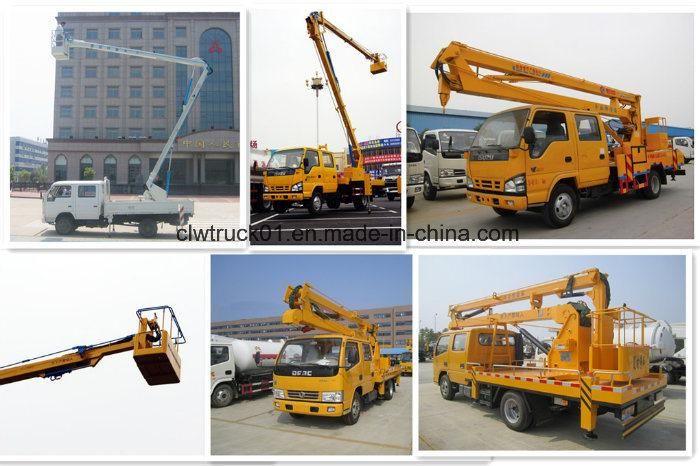

Product photo for reference:





Company Information

ChengLi Special Automobile Co., LTD is a manufacturing group located in SuiZhou City, HuBei Province, China.

1. Our factory is a professional truck & tanker manufacturer with more than 12 years experience in China.

2. There are totally 8000 workers, include 100 senior welder and 15 senior engineers.

3. More than 300 type of products supply.

4. Our sales volume of 2015 reach US$300 million.

Packing and Shipping



Our Services

1. One year quality warranty for key parts such as axles, engine, transmission;

2. All spare parts would be OEM and supplied at cost prices;
3. Overseas service center to ensure efficiency after-sales service;
4. Regular after-sales visit to collect information about the vehicle's working status and feedback from
customers.
