Workshop Usage 10 Ton Loading Capacity Die Cart
Henan Perfect Handling Equipment Co., Ltd.- Fuel：Battery
- Certification：ISO9000, TS16949, CE
- Emission Standard：Battery
- Condition：New
- Product Name：Workshop Usage 10 Ton Loading Capacity Die Cart
- Usage：Material of Die Transportation
Base Info
- Model NO.：BXC
- Application：Steel Industry, Factory, Warehouse, Port
- Brand：Perfect
- Load Capacity：10 Ton
- Special Function：Anti-Explosion, Heat-Resistant
- Control Mode：Pendant,Remote,PLC Control
- Power Mode：Battery, Cable, Conductive Rails
- Color：Customzied
- Material：Steel
- Transport Package：Tarp and Polywood Case
- Specification：2000*2000*500
- Trademark：PERFECT
- Origin：Xinxiang
- HS Code：87168000
- Production Capacity：600 Sets One Year
Description
Recommended Rail ModelP15 P24 P43 QU100 QU100

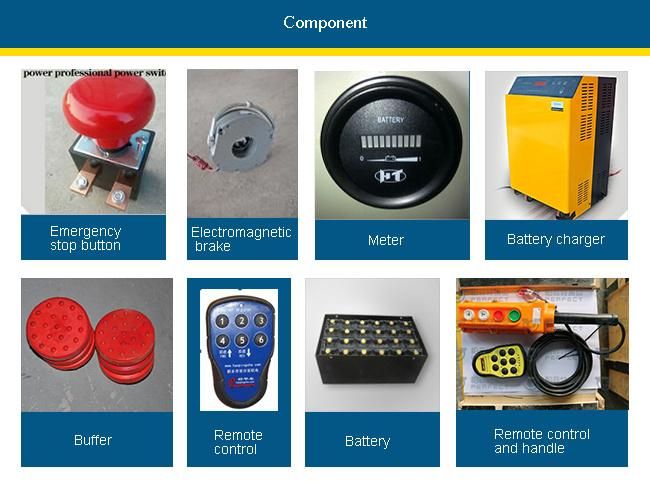

6.Operation and Component
There are a variety of drive and control systems for the heavy load material transport cart. Drive systems include gear reducer, axle drives and individual wheel drives. A typical unit is equipped with a hand held pendant control which is used by the operator to control the transfer car to move backward, forward along the track. With an average travel speed of 20m/min, an operator can walk along with the car to operate the unit. The pendant can be provided to be mounted on any of the 4 corners of the vehicle to allow the operator to walk along the leading end of the vehicle during operation. And our transfer cars are also available with semi-automatic and fully automatic control systems to meet the needs of specialized applications.

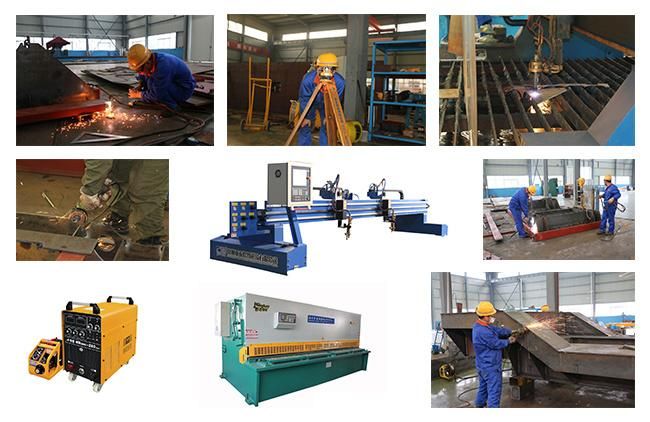

7. production process
CNC Cutting Transport the steel plate from raw material warehouse to CNC cutting workshop for cutting. After the cutting, the workers will do some simple processing such as chip moving and setting out.
Preliminary Assembling
Put the cut steel plate together according to the design drawing
Welding Weld the steel plate with automatic welding machine after the preliminary assembling
Post weld treatment Test the welding section after the welding, polish and burring. Post weld treatment to eliminate welding stress
Spray Primer Transport the structure part after processing to painting booth for spraying primer. The main component of the primer is zinc rich epoxy antirust paint. The primer is to two layers
Assembling Assemble the structure parts after spraying primer with wheels, motors and gear box, etc.
Paint finish Transport the assembled cart to painting booth, inspect the integrity of primer. After that paint the finish
Debugging Debugging the cart after painting the finish with electric control system, after the debugging, the cart will test without load. And after the no load test, the cart will be tested with load. After the inspection, the cart will be transported to storage area.

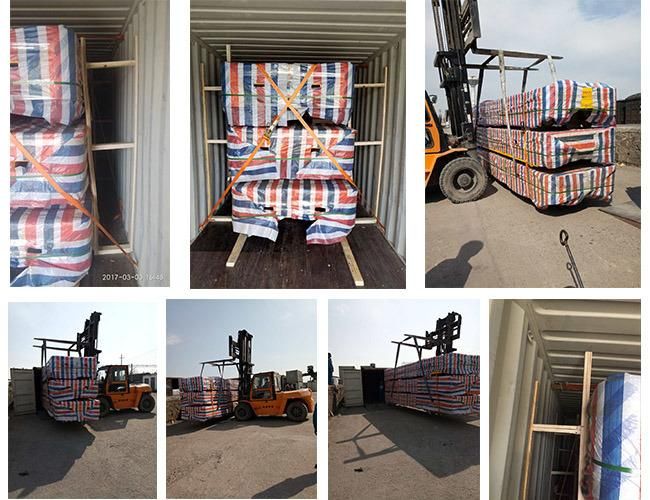

8. Factory and Transportation
9. Q&A
Will A Die Cart Be A Good Solution?
A good question to ask since there are many material handling solutions on the market! Which one is the right choice? For starters, transfer carts are moveable platforms used for the horizontal movement of materials, assemblies, and other items. Consideration must be given to the weight of the load and the travel requirements for the application.
What Are The Advantages of Using the Die Cart?
For smaller loads, manual carts can be dedicated to specific work place activities such as shuttling materials. This often makes the carts more available for use. Transfer carts are more accommodating for moving long loads through restrictive passage ways or doorways. For heavier loads transfer carts are an excellent affordable choice for their ability to handle heavy loads. Transfer carts are compact in design and work well in areas with limited floor area. Another advantage over lift trucks is how the cart deck can be customized to suit specific loads.
What Product Handling Applications Use Die Carts?
1. It can used in handling material of die and other as follow.
2. Tanks (size/stability for uniformly distributed loads)
3. Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
4. Sub-Assembly shuttle from one line to another line
5. Maintenance cart for motors and pumps
6. Equipment support (stand-off deck) for navigating loads to locations with a plant facility
7. Material shuttle for steel tubing (flat decking with guard rails)
8. Sand casting (flat decking)
